Air-Filter Box Strap-Mount Repair Bracket

ABS · PETG1 FILECC-BYEngine & intake

PART RECORDREF 1947

PART: Air-Filter Box Strap-Mount Repair Bracket
OEM: —
FITS: 944

Loading 3D viewer...

RECORD · RA / 19471 geometry fileInteractive preview

Fitment photographs

5 PLATES

Air-Filter Box Strap-Mount Repair Bracket — image 1 of 5

PLATE 01 / 05No caption recorded

File manifest

MAN-1947

[01]airtopfix.STLairtopfix.STL.STL
[02]Bounding box90.000 × 60.000 × 31.100 mm
[03]Volume29,213.007 mm³

Owner notes

BY 2BAD2DIE

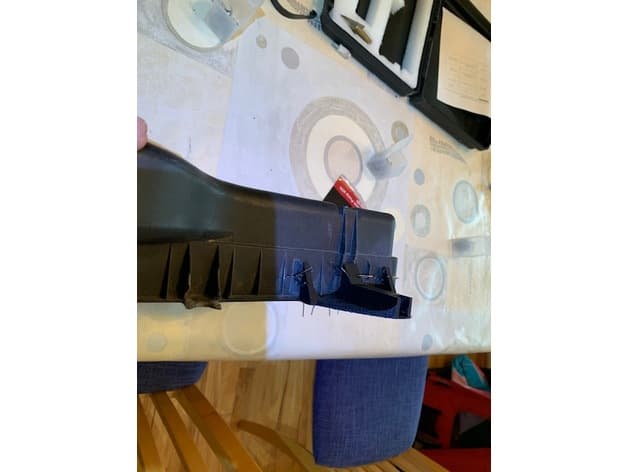

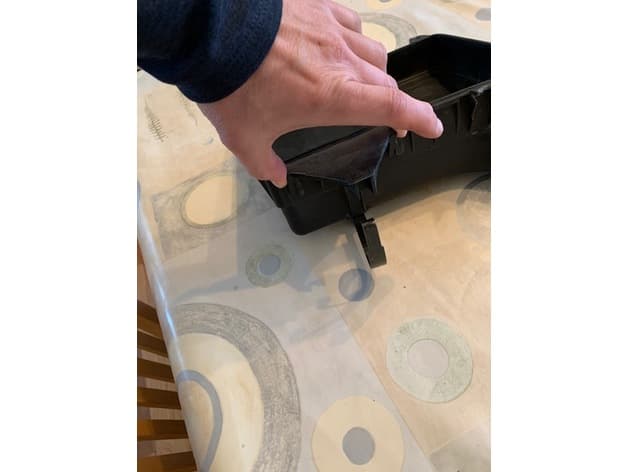

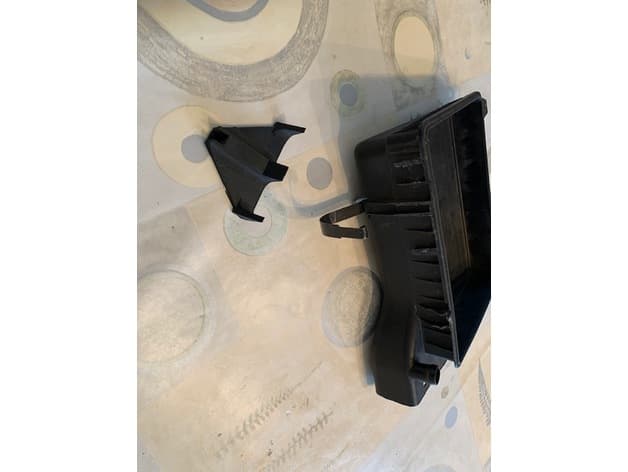

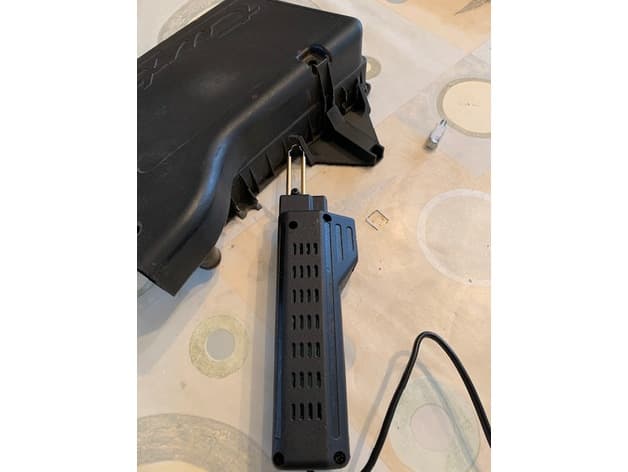

Repair bracket for the broken air-filter-box arm that retains the metal band connecting the housing to the turbocharger discharge/intercooler pipe. The printed bracket attaches to the top of the box by hot stapling, plastic welding, or adhesive and uses a small pin for the steel band.
