Alternator Cooling Duct

OEM CROSS-REF047903199

Nylon · PETG1 FILECC-BY-NC-SAEngine-bay electrical & sensors

PART RECORDREF 1991

PART: Alternator Cooling Duct
OEM: 047903199
FITS: 924, 944

Loading 3D viewer...

RECORD · RA / 19911 geometry fileInteractive preview

Fitment photographs

5 PLATES

PLATE 01 / 05No caption recorded

File manifest

MAN-1991

[01]Porsche_924_alternator_duct.stlPorsche_924_alternator_duct.stl.STL
[02]Bounding box217.322 × 102.000 × 94.883 mm
[03]Volume76,061.976 mm³

Owner notes

BY STICRO1

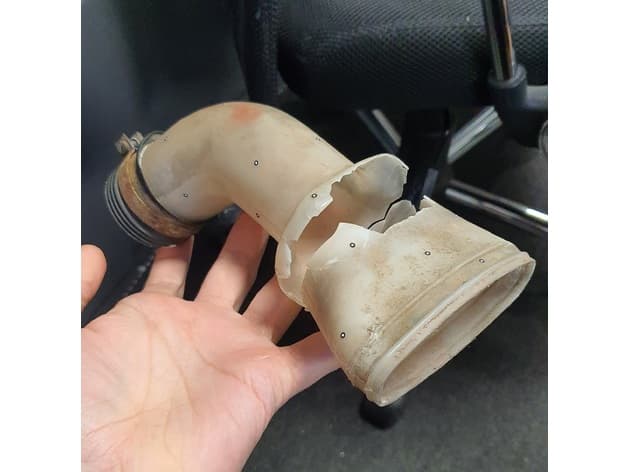

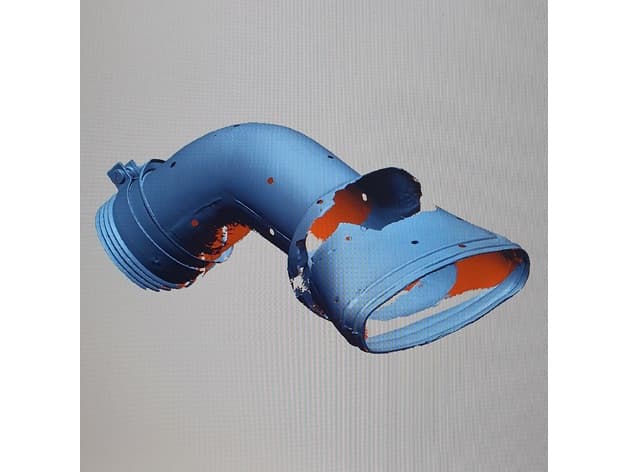

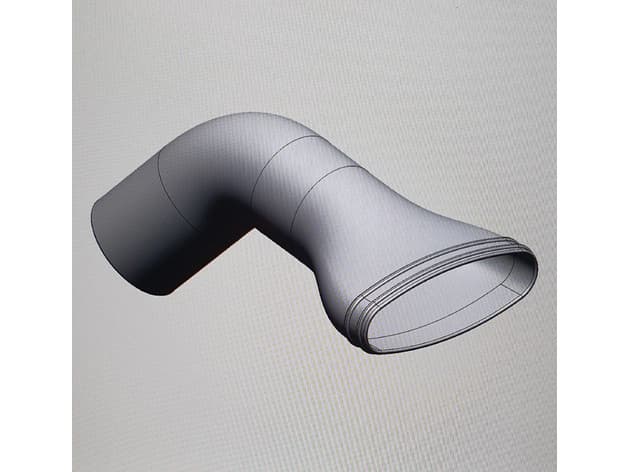

Streamlined replacement alternator cooling duct modeled from a 3D scan of the original failure-prone part and shaped for support-free printing. The creator printed it in PA12 and reports that PETG has also been tested.

View original source ↗
