Ashtray Phone Mount

ABS · PETG · TPUMULTI-PART4 FILESCC-BYConsole & storage

PART RECORDREF 1906

PART: Ashtray Phone Mount
OEM: —
FITS: Panamera G1 (970)

Loading 3D viewer...

RECORD · RA / 19064 geometry filesInteractive preview

Fitment photographs

9 PLATES

PLATE 01 / 09No caption recorded

File manifest

MAN-1906

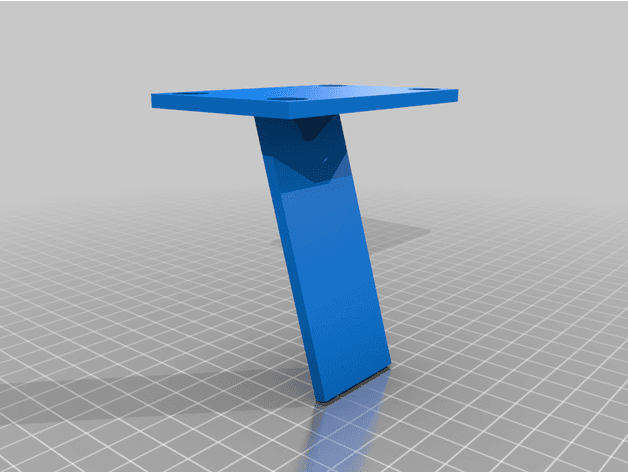

[01]Panamera_970_Phone_Mount_ARM.stlPanamera_970_Phone_Mount_ARM.stl.STL

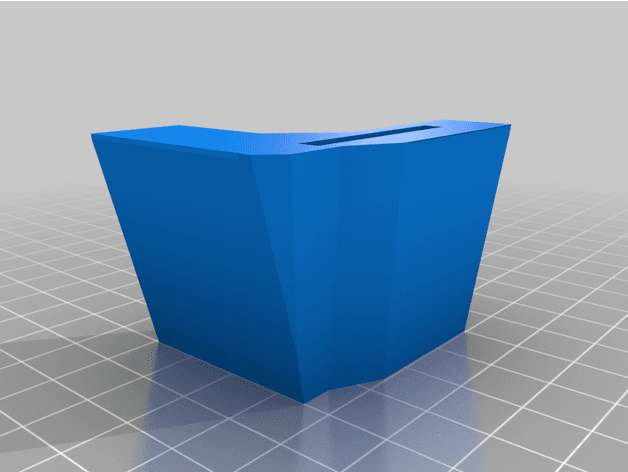

[02]Panamera_970_Phone_Mount_BASE.stlPanamera_970_Phone_Mount_BASE.stl.STL

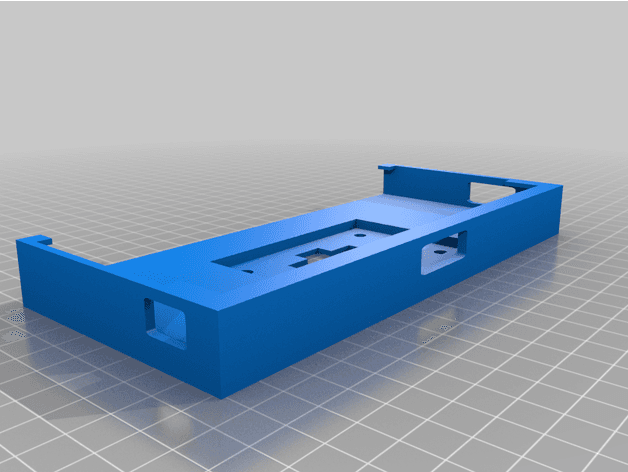

[03]Panamera_970_Phone_Mount_BODY.stlPanamera_970_Phone_Mount_BODY.stl.STL

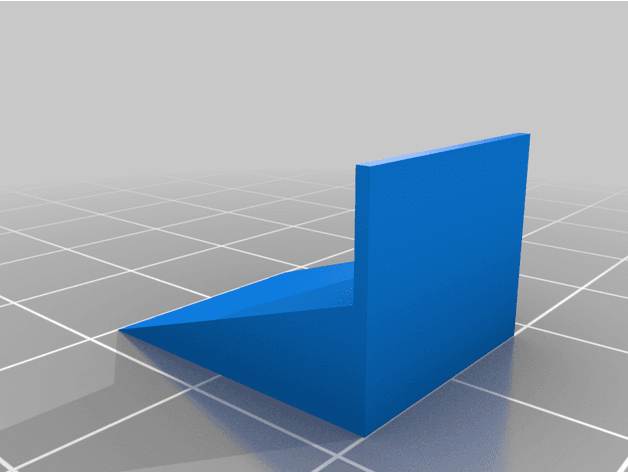

[04]Panamera_970_Phone_Mount_WEDGE.stlPanamera_970_Phone_Mount_WEDGE.stl.STL
[05]Bounding box343.809 × 84.277 × 50.800 mm
[06]Volume141,414.638 mm³

Owner notes

BY DUANE LEINNINGER (DUANEL)

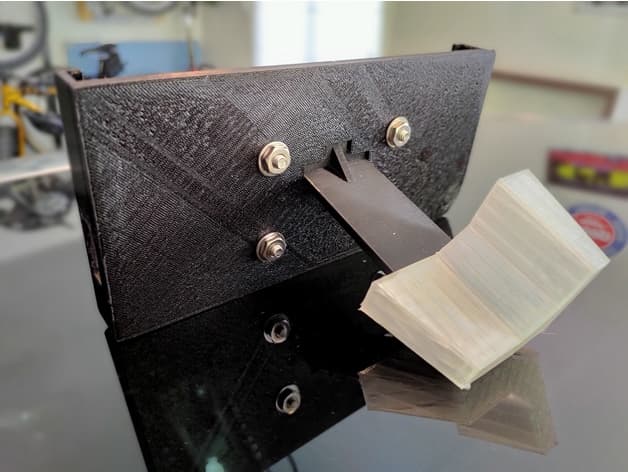

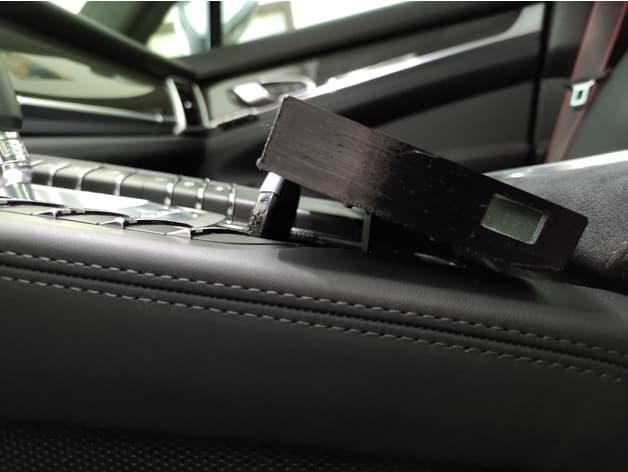

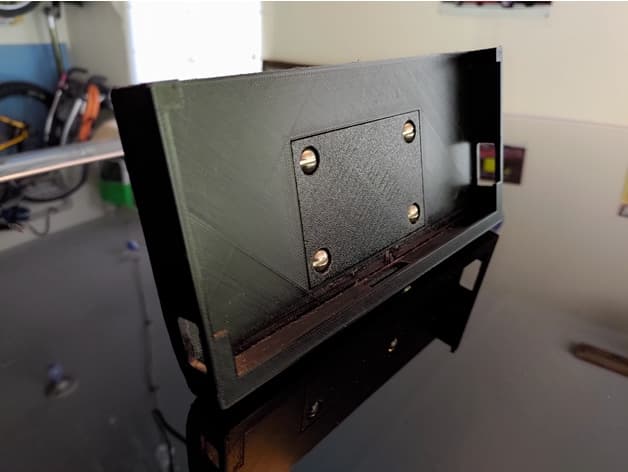

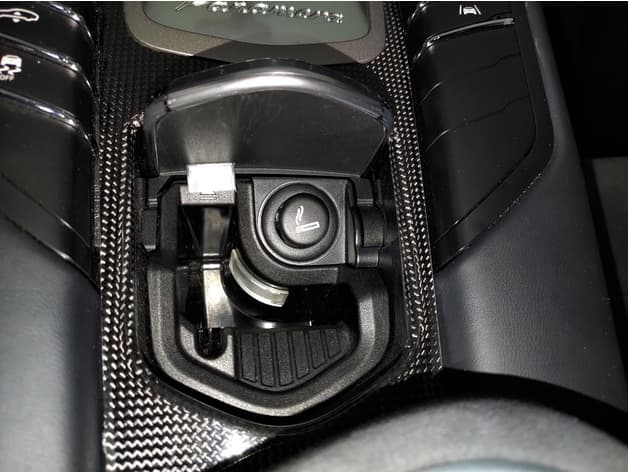

Four-piece ashtray-insert phone mount for 2010-2016 970.1/970.2 cars, designed around the Asus ROG Phone II. The flexible base and wedge friction-fit in the ashtray while the rigid arm and body bolt together; installation uses no clips, adhesive, or vehicle modifications.
