Audiofrog Speaker Adapter Set

ABS · PETGMULTI-PART5 FILES0 DOWNLOADSCC-BY-NC-SADashboard & controls

PART RECORDREF 2091

PART: Audiofrog Speaker Adapter Set
OEM: —
FITS: Macan 95B

Loading 3D viewer...

RECORD · RA / 20915 geometry filesInteractive preview

Fitment photographs

5 PLATES

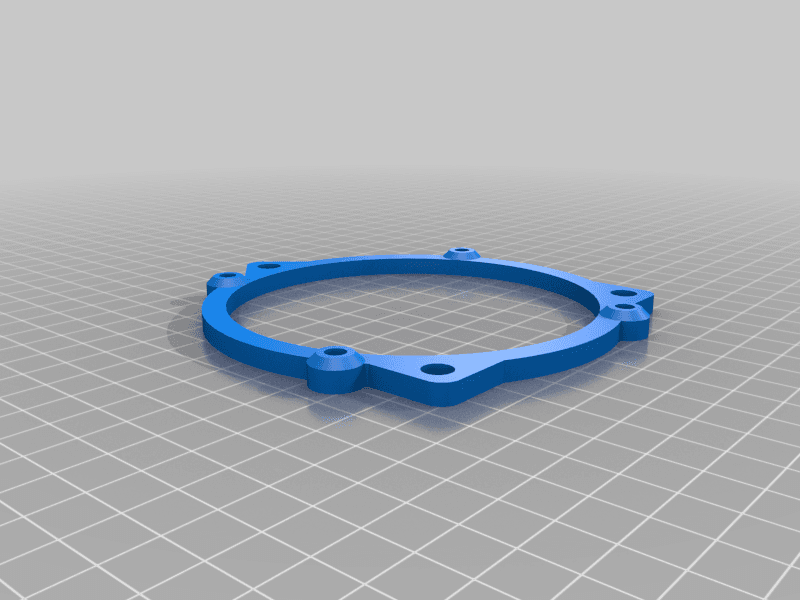

Audiofrog Speaker Adapter Set — image 1 of 5

PLATE 01 / 05No caption recorded

File manifest

MAN-2091

[01]GB25_Adapter.stlGB25_Adapter.stl.STL
[02]GB25_Adapter_-_Center.stlGB25_Adapter_-_Center.stl.STL
[03]4in_audiofrog_adapter.stl4in_audiofrog_adapter.stl.STL
[04]door_1_tweet_adapt.stldoor_1_tweet_adapt.stl.STL
[05]door_2_tweet_adapt.stldoor_2_tweet_adapt.stl.STL
[06]Bounding box511.385 × 120.245 × 8.000 mm
[07]Volume138,826.115 mm³

Owner notes

BY SANTIMACAN

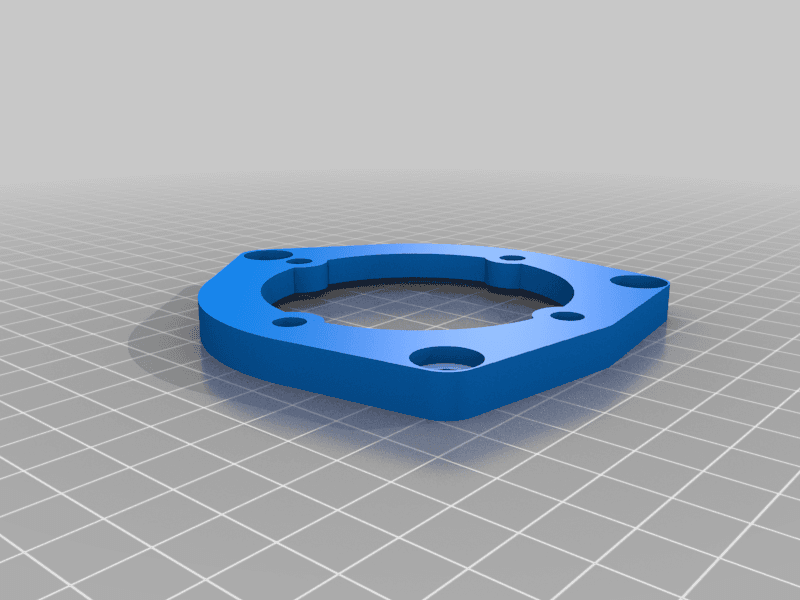

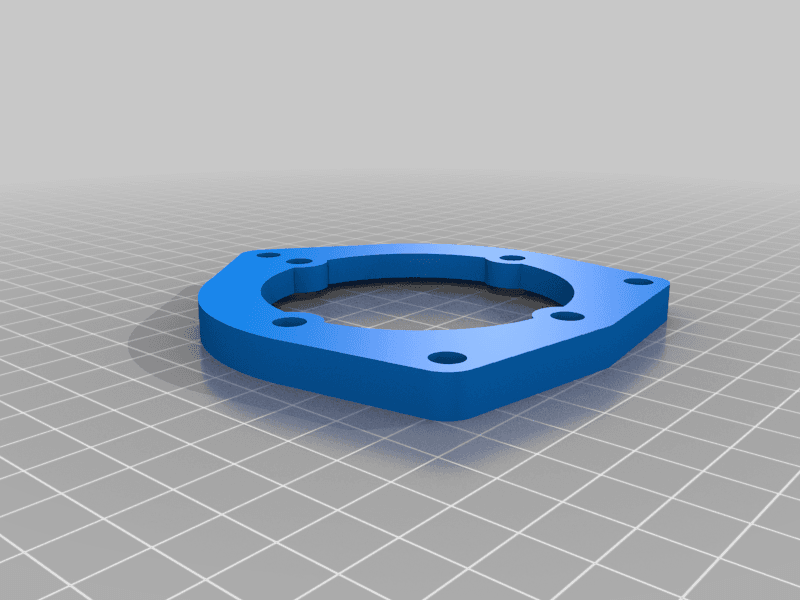

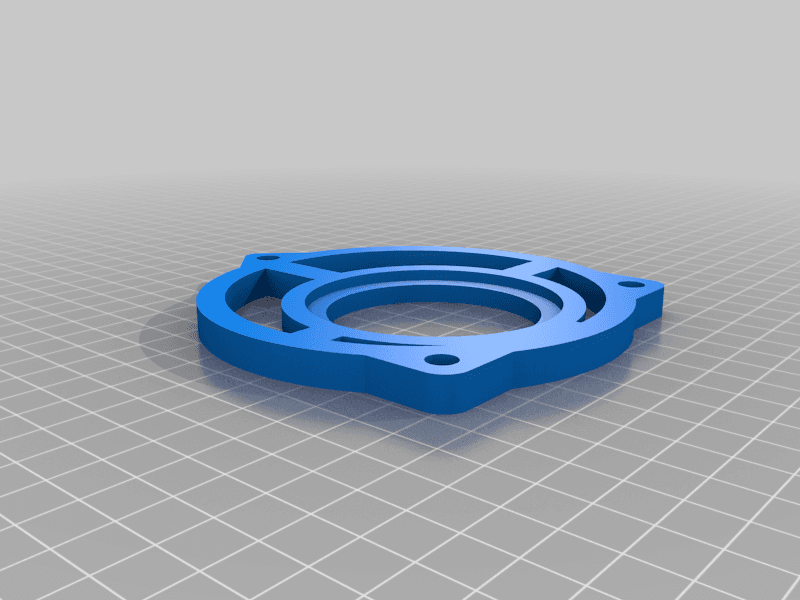

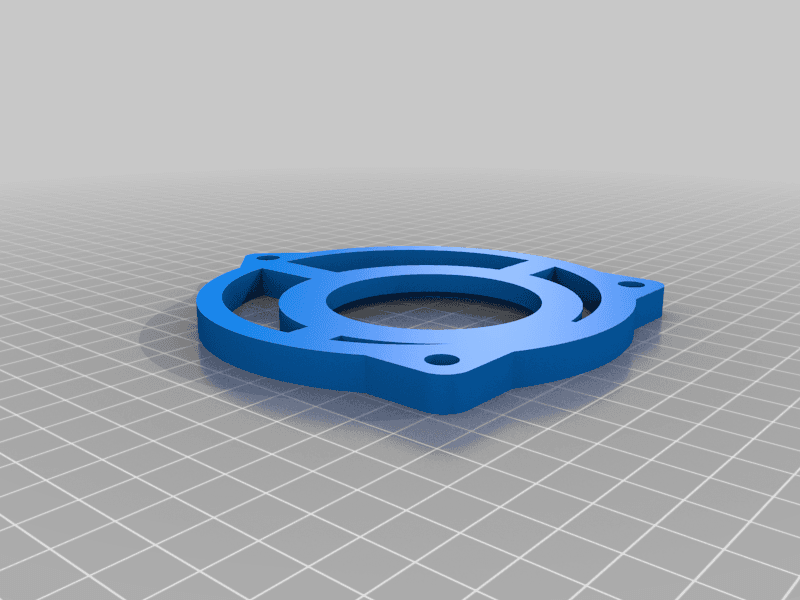

Five adapters mount Audiofrog GB25, GB40, and GB15 speakers in the surround, center, front-door, and rear-door locations. Installation uses M4 × 4 mm knurled inserts with 6 mm outer diameter and M4 screws.
