Brake Caliper Piston 20-Degree Alignment Gauge

PLA1 FILE0 DOWNLOADSCC-BYInstallation & alignment jigs

PART RECORDREF 2008

PART: Brake Caliper Piston 20-Degree Alignment Gauge
OEM: —
FITS: 911 Original (901/911)

Loading 3D viewer...

RECORD · RA / 20081 geometry fileInteractive preview

Fitment photographs

1 PLATE

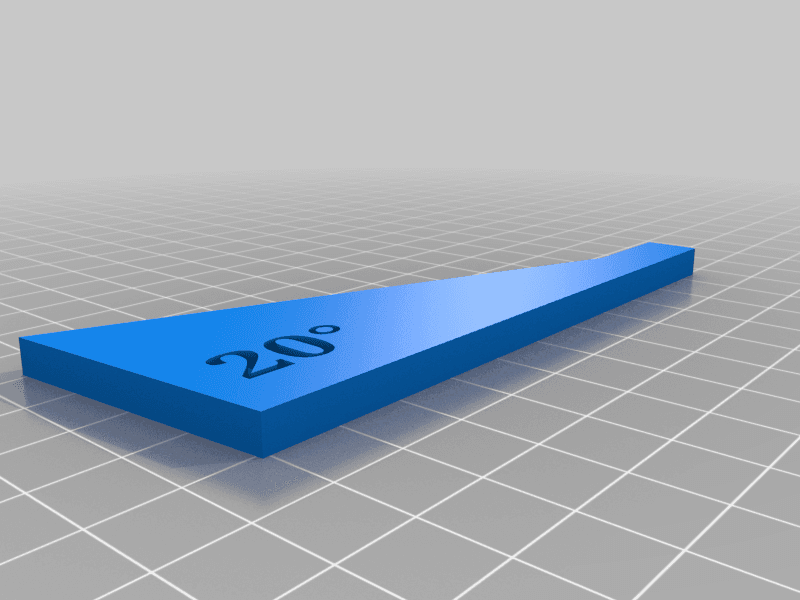

Brake Caliper Piston 20-Degree Alignment Gauge — image 1 of 1

PLATE 01 / 01No caption recorded

File manifest

MAN-2008

[01]Porsche_Brake_Caliper_tool_20_Degree.stlPorsche_Brake_Caliper_tool_20_Degree.stl.STL
[02]Bounding box108.175 × 41.484 × 5.000 mm
[03]Volume11,590.073 mm³

Owner notes

BY FLATSIX27

Gauge for setting the stepped brake-caliper piston face to 20 degrees on standard ATE calipers.
