Center-Armrest Storage Tray

ABS · PETG4 FILESCC-BY-NC-SAConsole & storage

PART RECORDREF 1992

PART: Center-Armrest Storage Tray
OEM: —
FITS: Macan XAB Electric

Loading 3D viewer...

RECORD · RA / 19924 geometry filesInteractive preview

Fitment photographs

6 PLATES

Center-Armrest Storage Tray — image 1 of 6

PLATE 01 / 06No caption recorded

File manifest

MAN-1992

[01]base_tray.stlbase_tray.stl.STL
[02]kleenex_passthrough.stlkleenex_passthrough.stl.STL
[03]honeycomb.stlhoneycomb.stl.STL
[04]kleenex_slot_stencil.stepkleenex_slot_stencil.step.STL
[05]Bounding box164.671 × 145.587 × 10.000 mm
[06]Volume74,191.003 mm³

Owner notes

BY DOMINO_BORKS

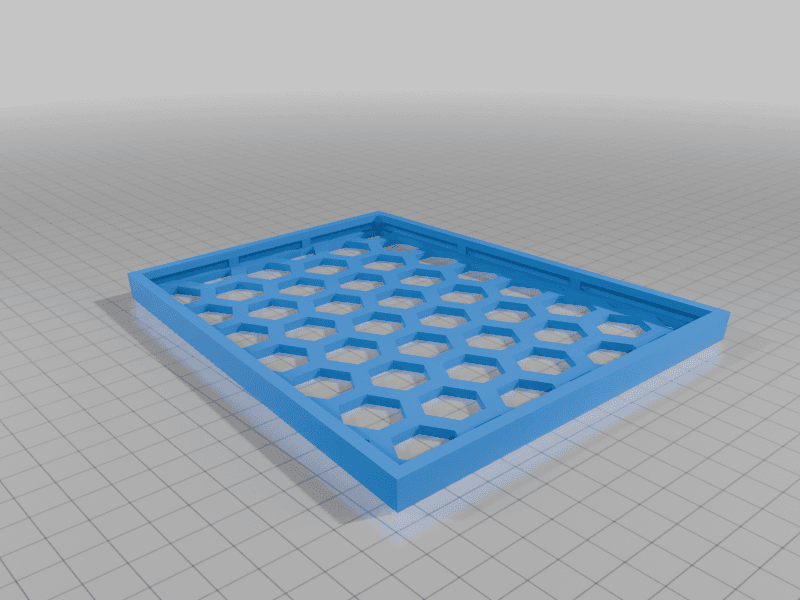

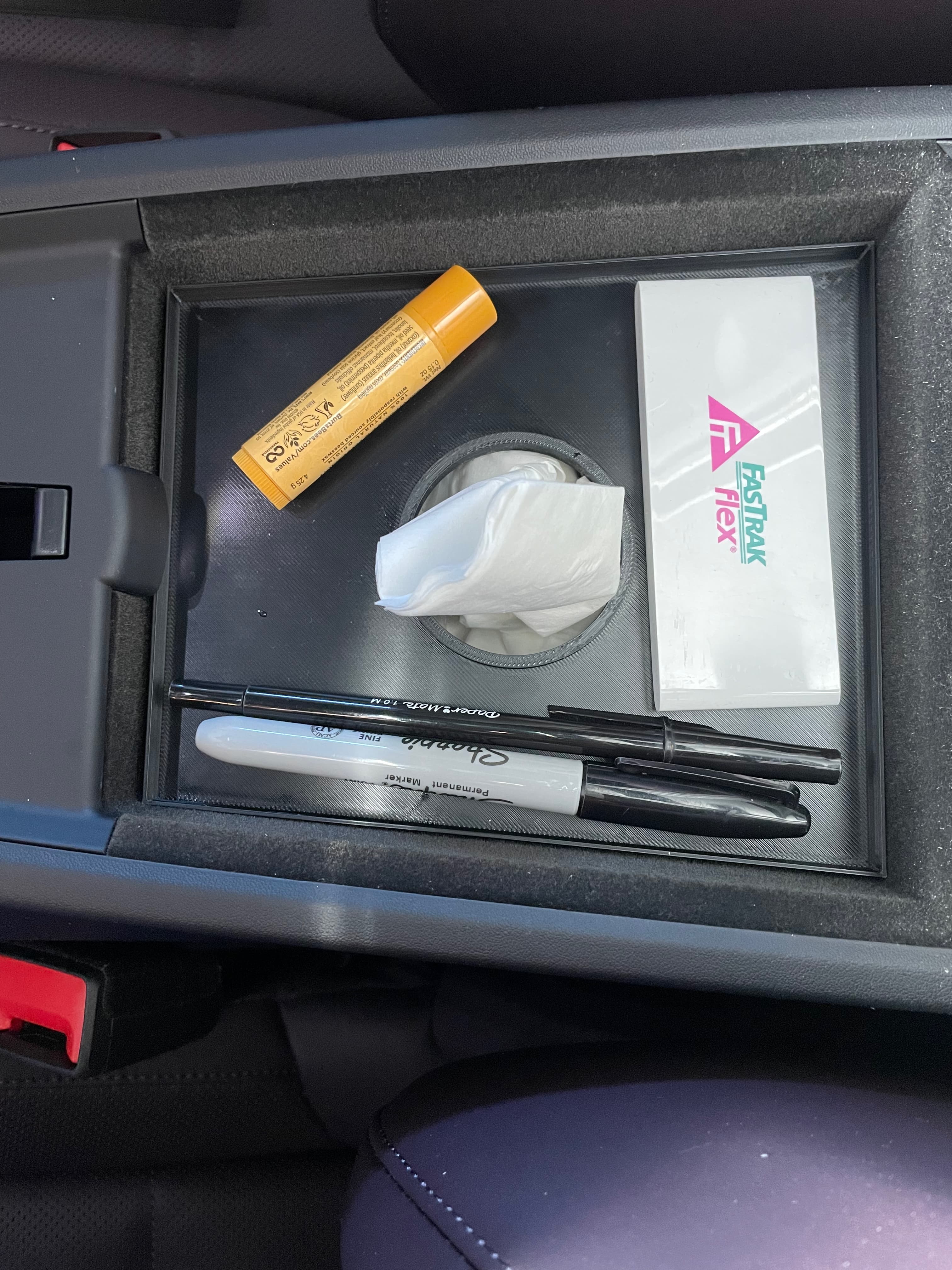

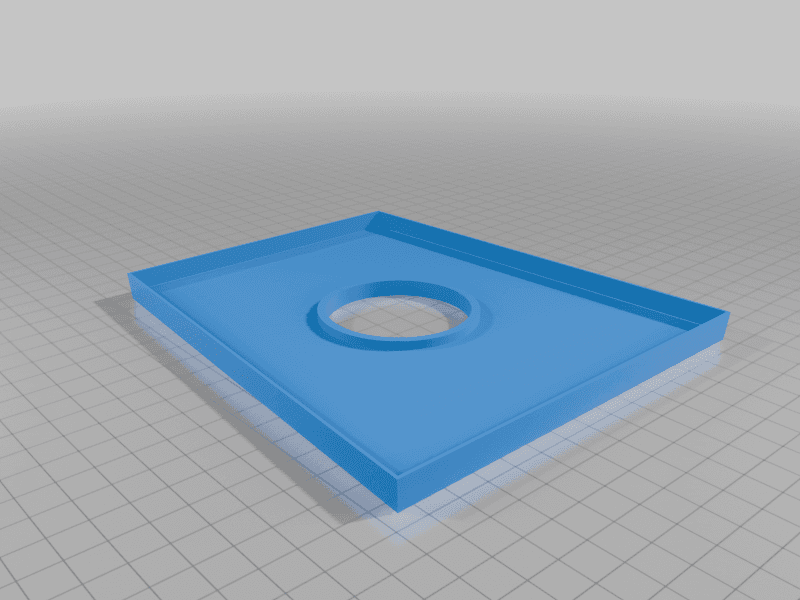

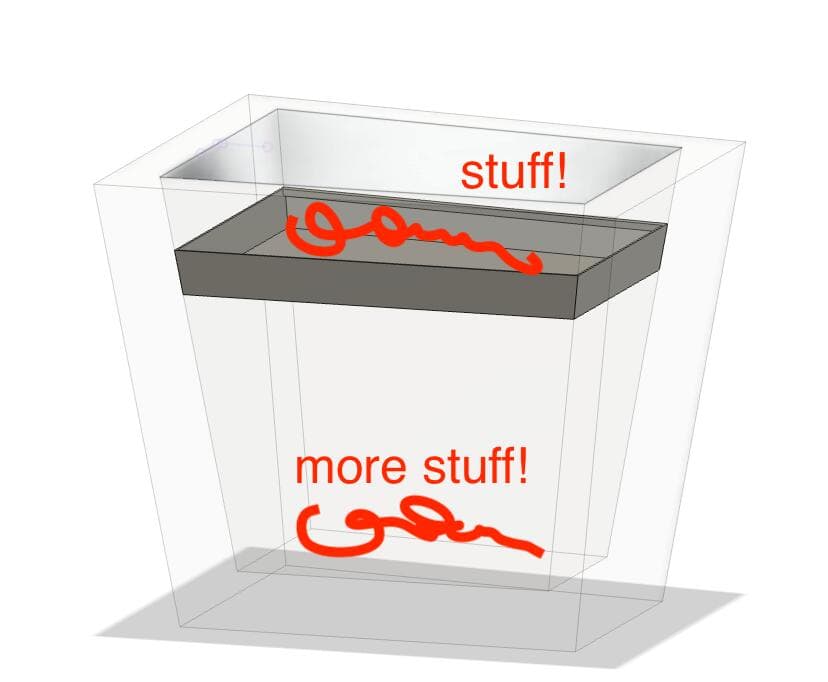

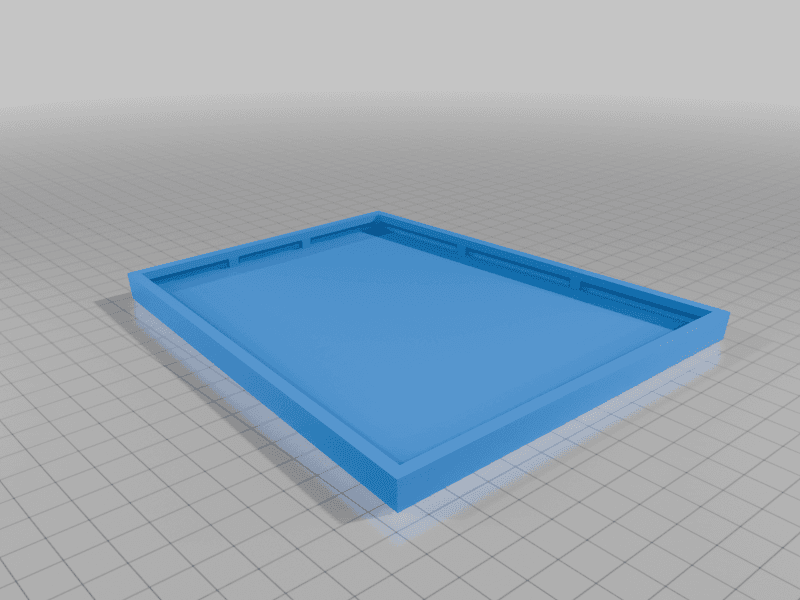

Friction-fit tray variants create a second storage level in the seven-inch-deep center-armrest compartment: plain, tissue-box passthrough, and honeycomb versions, plus a STEP stencil for cutting surface liners. The installed tray sits just above five inches from the bottom, leaving room below for a cube tissue box; the creator had not test-printed the honeycomb variant.
