Center Console Delete Lining

OEM CROSS-REF986 552 113 02

PETG4 FILESCC-BY-NCConsole & storage

PART RECORDREF 1973

PART: Center Console Delete Lining
OEM: 986 552 113 02
FITS: Boxster 986

Loading 3D viewer...

RECORD · RA / 19734 geometry filesInteractive preview

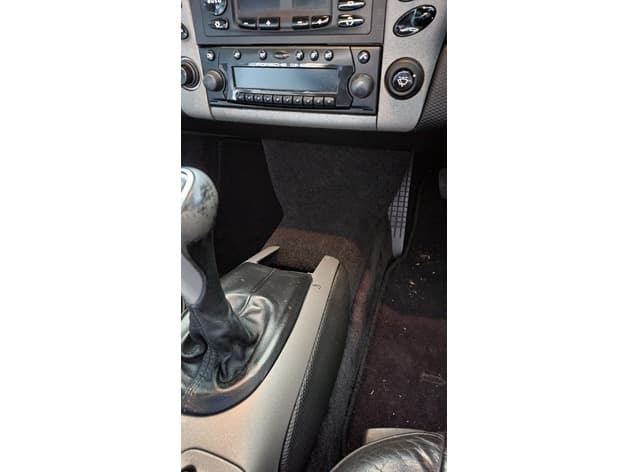

Fitment photographs

7 PLATES

Center Console Delete Lining — image 1 of 7

PLATE 01 / 07No caption recorded

File manifest

MAN-1973

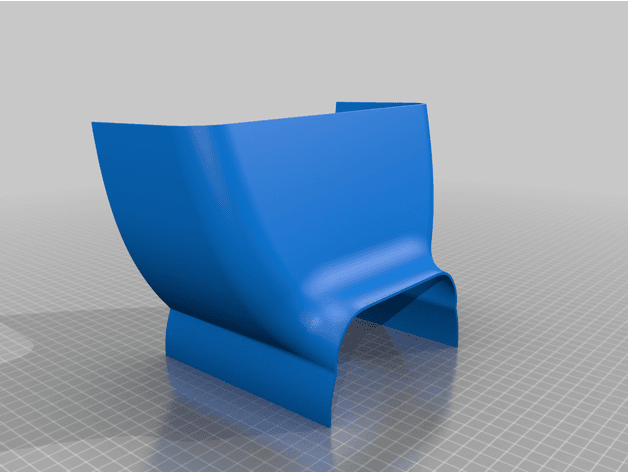

[01]986_GT3_Delete_Front.stl986_GT3_Delete_Front.stl.STL

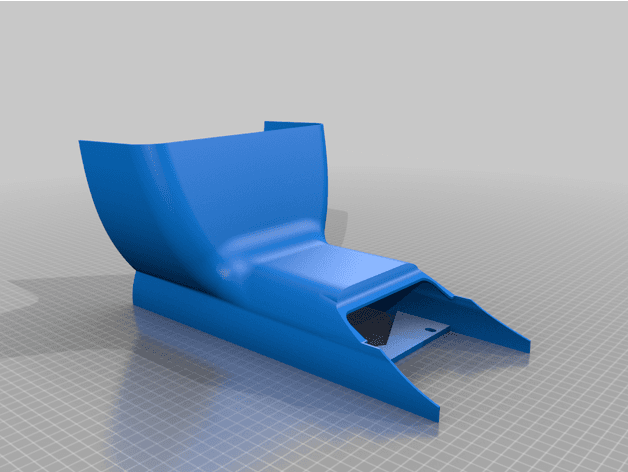

[02]986_GT3_Delete_Full.stl986_GT3_Delete_Full.stl.STL

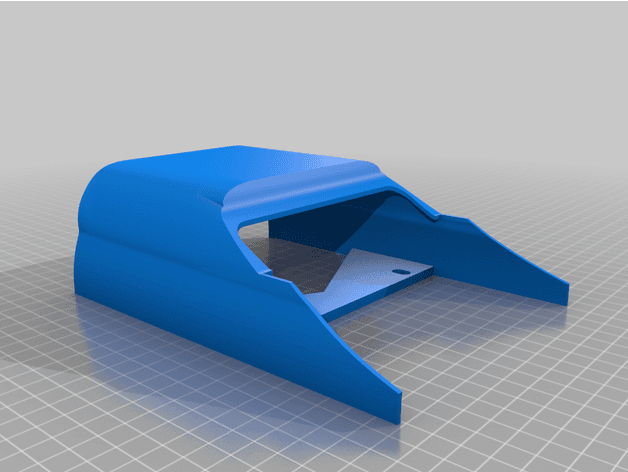

[03]986_GT3_Delete_Rear.stl986_GT3_Delete_Rear.stl.STL

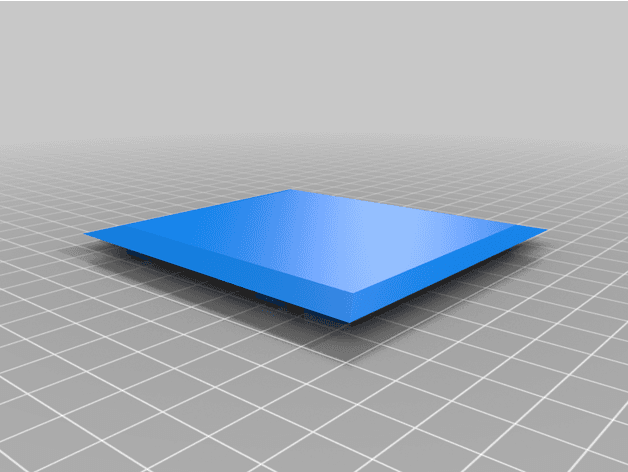

[04]Cover_Plate.stlCover_Plate.stl.STL
[05]Bounding box194.677 × 144.297 × 63.002 mm
[06]Volume87,715.745 mm³

Owner notes

BY XR4Y

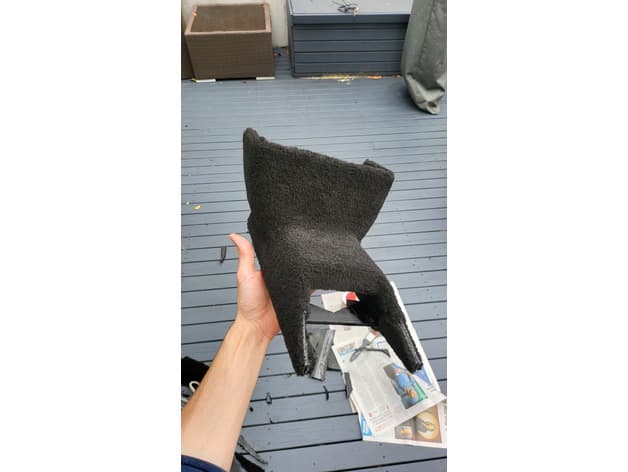

Printable lining for a center-console-delete conversion, supplied as a full model or front/rear split for a Prusa Mk3S-size bed, plus a cover plate. The creator recommends PETG, instructs removal of the orange bracket tabs for mounting, and leaves room to upholster the part.
