Crankcase Through-Bolt O-Ring Installer

ABS · PETG1 FILECC-BY-SAInstallation & alignment jigs

PART RECORDREF 1981

PART: Crankcase Through-Bolt O-Ring Installer
OEM: —
FITS: 911 Original (901/911), 914

Loading 3D viewer...

RECORD · RA / 19811 geometry fileInteractive preview

Fitment photographs

3 PLATES

Crankcase Through-Bolt O-Ring Installer — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-1981

[01]Through_Bolt_O-Ring_Installer-2.stlThrough_Bolt_O-Ring_Installer-2.stl.STL

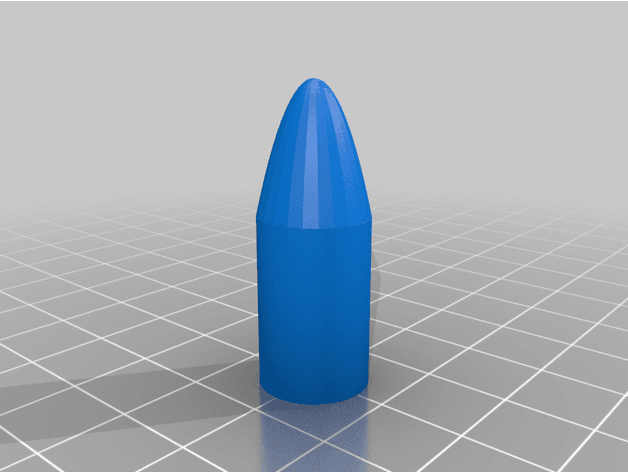

[02]Bounding box35.000 × 13.000 × 13.000 mm
[03]Volume1,829.108 mm³

Owner notes

BY DENVOGEL

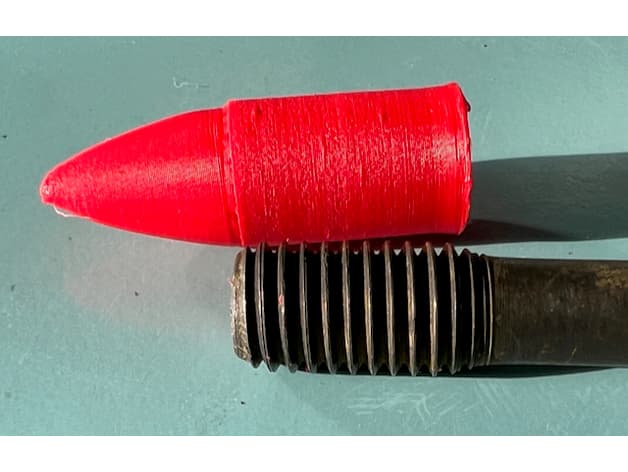

Protective installation cap that covers crankcase through-bolt threads so an O-ring is not sliced while being installed. The creator designed it during a 914-6/911T engine rebuild and revised the shape for improved printing.

View original source ↗
