Differential-Lock Seal Installation Tool

PLA1 FILE0 DOWNLOADSCC-BY-NC-SAInstallation & alignment jigs

PART RECORDREF 2011

Loading 3D viewer...

RECORD · RA / 20111 geometry fileInteractive preview

Fitment photographs

1 PLATE

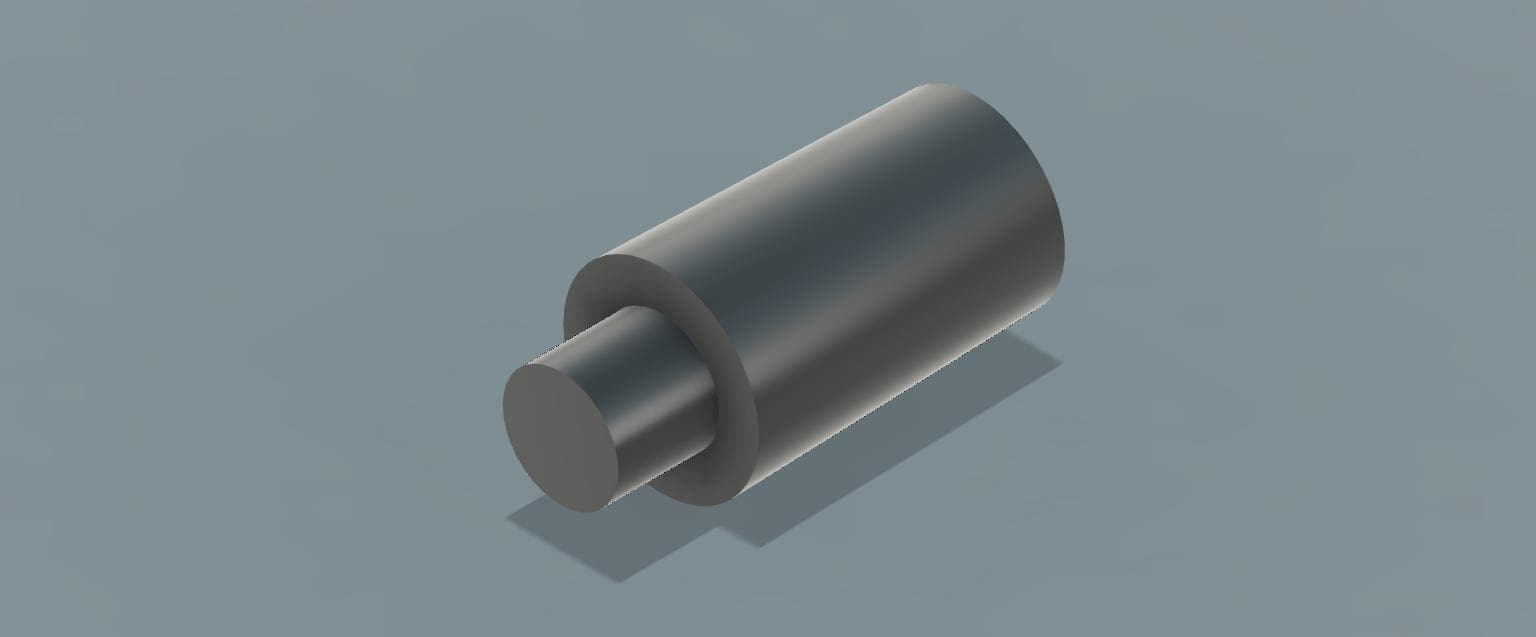

PLATE 01 / 01No caption recorded

File manifest

MAN-2011

[01]differential-lock-seal-installation-tool.stldifferential-lock-seal-installation-tool.stl.STL
[02]Bounding box33.000 × 15.557 × 15.554 mm
[03]Volume4,891.631 mm³

Owner notes

BY KLR-TOM

Tapered installation tool that expands the PTFE piston seal and centers itself in the counterbore of the differential-lock cylinder piston.
