Extended Door Handle Linkage Ball Socket

OEM CROSS-REF999 168 004 40

ABS · PETG1 FILECC-BY-NC-SAInterior doors & windows

PART RECORDREF 2003

PART: Extended Door Handle Linkage Ball Socket
OEM: 999 168 004 40
FITS: 924

Loading 3D viewer...

RECORD · RA / 20031 geometry fileInteractive preview

Fitment photographs

2 PLATES

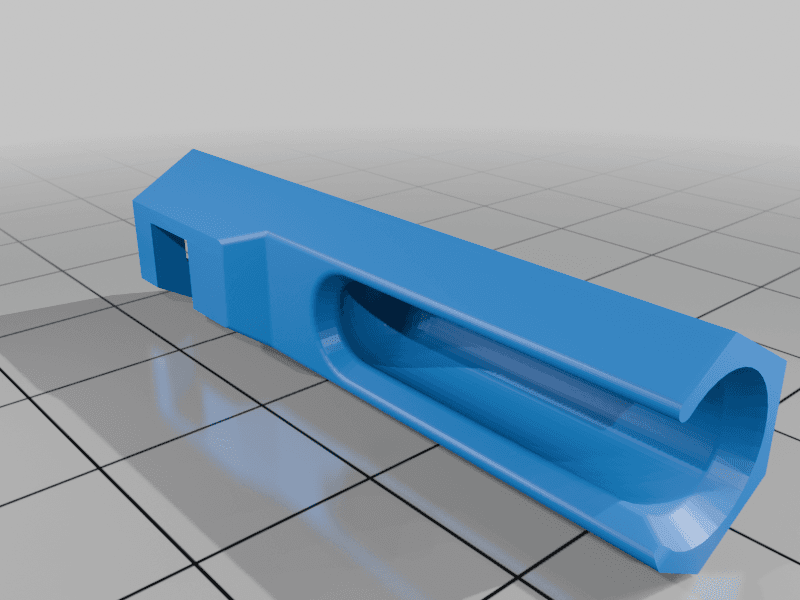

Extended Door Handle Linkage Ball Socket — image 1 of 2

PLATE 01 / 02No caption recorded

File manifest

MAN-2003

[01]TPW-944-DH-001B_Ball_joint_swivel_alternative_plus_2-5mm.STLTPW-944-DH-001B_Ball_joint_swivel_alternative_plus_2-5mm.STL.STL
[02]Bounding box42.000 × 11.547 × 10.000 mm
[03]Volume2,076.033 mm³

Owner notes

BY TREFOR WILLINGHAM (TREF67)

Extended ball-socket connector for the exterior door-handle linkage, designed to add adjustment when the lever must be pulled too far or is difficult to reconnect. It uses an extra M5 nut; the creator prints it open-slot side up without supports at 0.2 mm layers and about 15% infill.
