Fresh-Air Blower Flap

PART RECORDREF 1948

Loading 3D viewer...

RECORD · RA / 19481 geometry fileInteractive preview

Fitment photographs

5 PLATES

PLATE 01 / 05No caption recorded

File manifest

MAN-1948

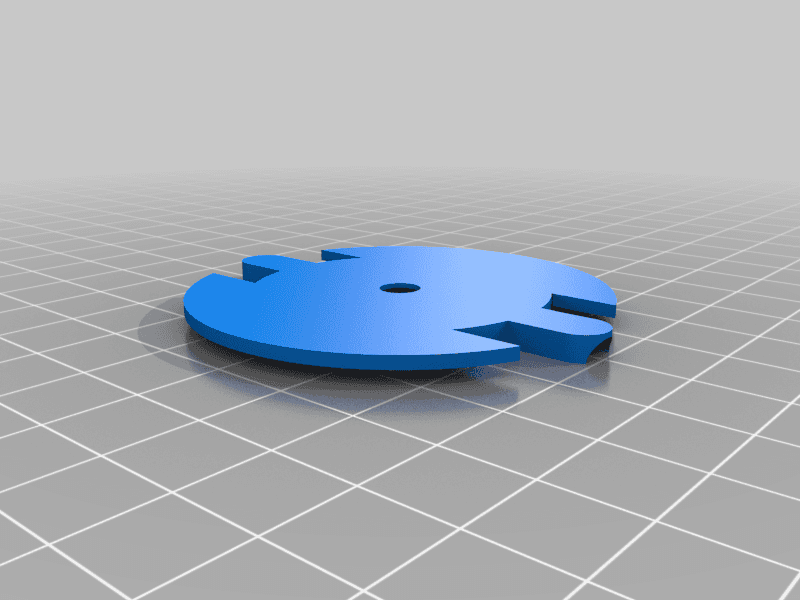

[01]911_SC_Luftklappe_91157101700_v.3.stl911_SC_Luftklappe_91157101700_v.3.stl.STL
[02]Bounding box60.000 × 54.975 × 3.250 mm
[03]Volume4,496.556 mm³

Owner notes

BY S3R3ALKILL4

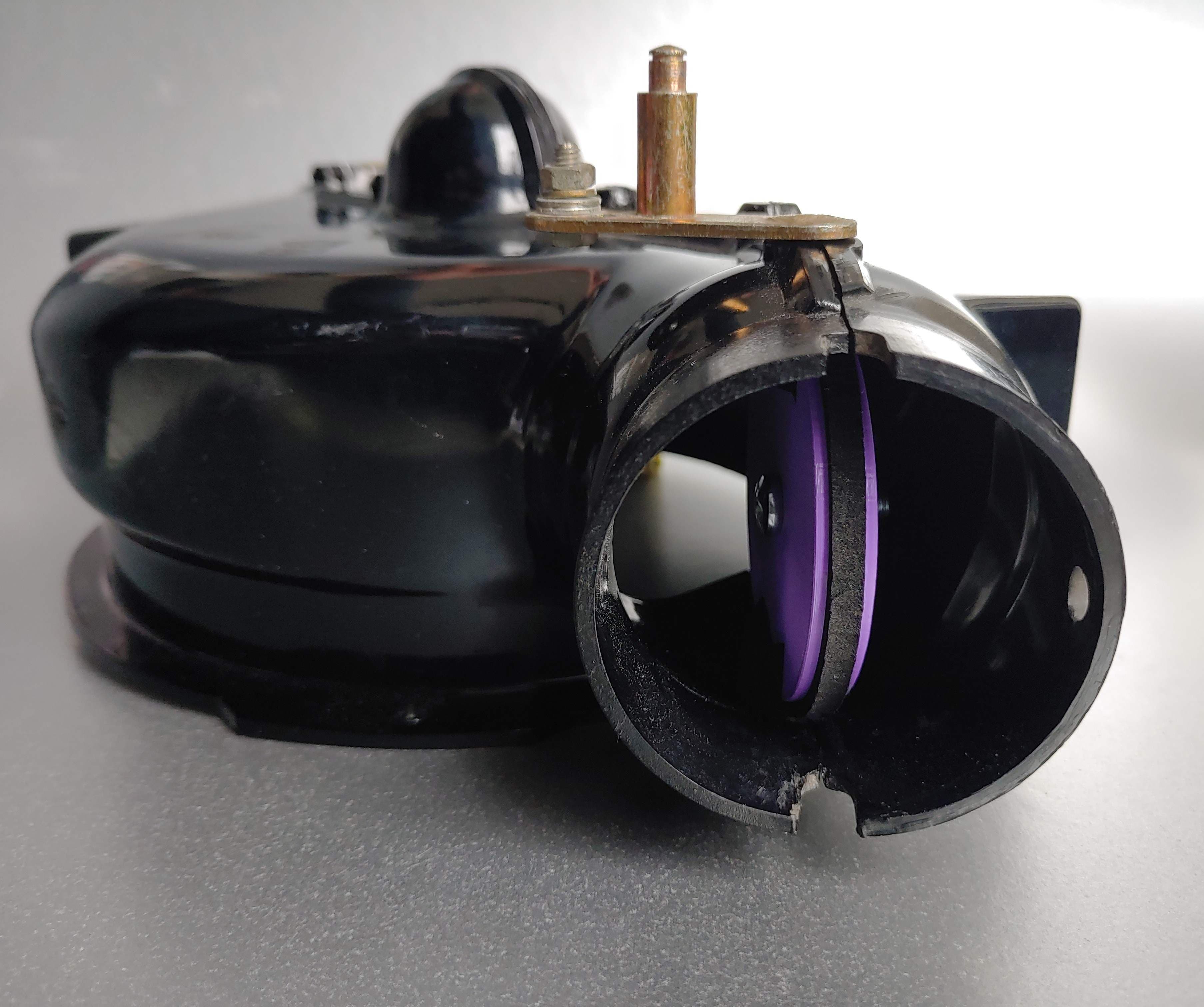

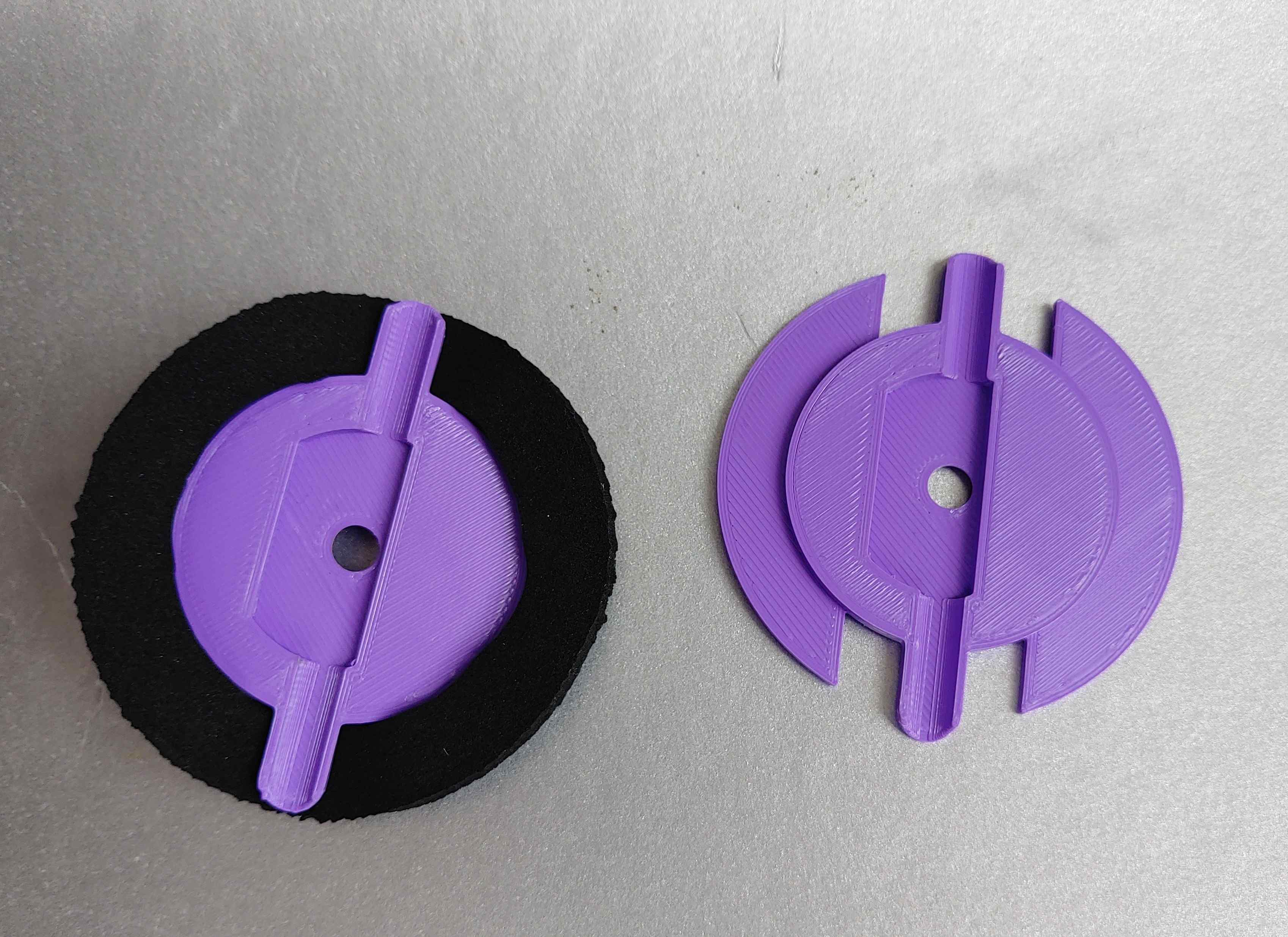

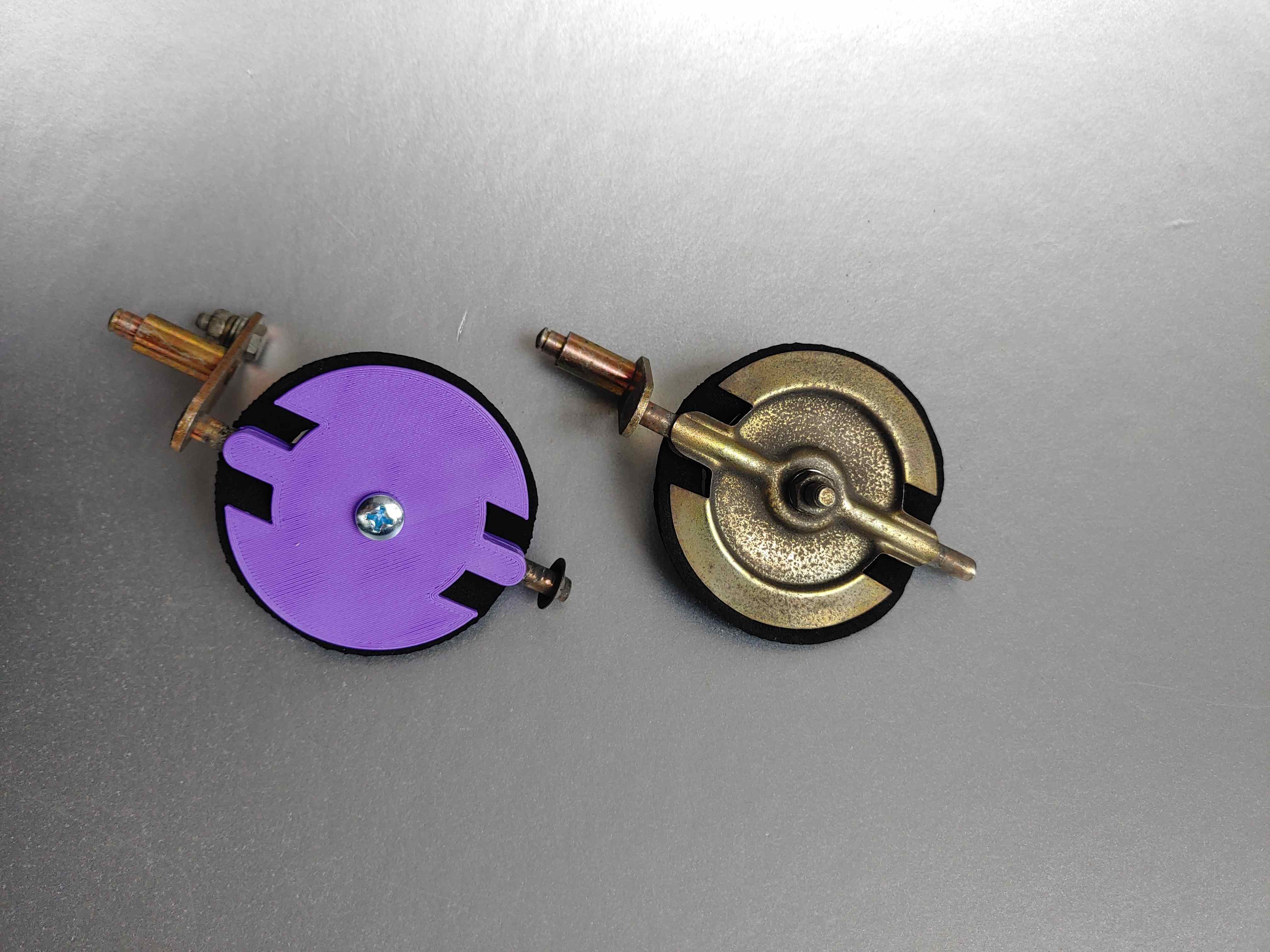

Replacement flap for the fresh-air blower housing. The creator used a 4 mm foam-rubber seal and PETG for the heat encountered during cabin heating.
