Fuel Pump Actuator Stroke Measuring Tool

PLA1 FILE0 DOWNLOADSCC-BYService tools

PART RECORDREF 2007

Loading 3D viewer...

RECORD · RA / 20071 geometry fileInteractive preview

Fitment photographs

1 PLATE

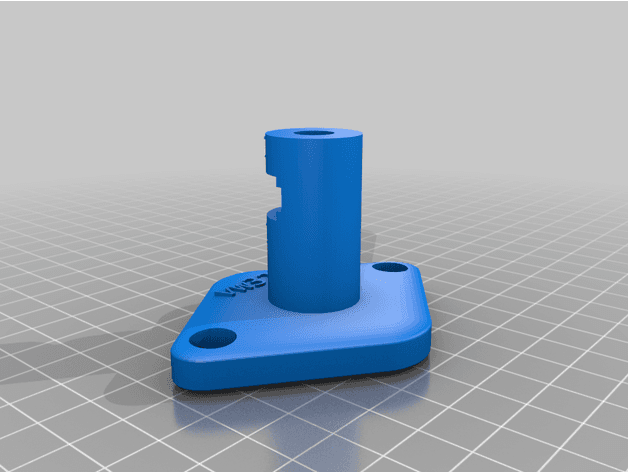

PLATE 01 / 01No caption recorded

File manifest

MAN-2007

[01]fuel-pump-actuator-stroke-measuring-tool.stlfuel-pump-actuator-stroke-measuring-tool.stl.STL
[02]Bounding box75.000 × 55.000 × 44.000 mm
[03]Volume26,587.023 mm³

Owner notes

BY DENNIS VOGEL (DENVOGEL)

Tool used to measure the fuel-pump actuator-rod stroke. The creator identifies it for VW 25/36 hp and Porsche 356 A/early B engines.
