Fuel Pump Diaphragm Positioning Tool

PLA1 FILE0 DOWNLOADSCC-BYService tools

PART RECORDREF 2006

PART: Fuel Pump Diaphragm Positioning Tool
OEM: —
FITS: 356 B (T5/T6)

Loading 3D viewer...

RECORD · RA / 20061 geometry fileInteractive preview

Fitment photographs

1 PLATE

Fuel Pump Diaphragm Positioning Tool — image 1 of 1

PLATE 01 / 01No caption recorded

File manifest

MAN-2006

[01]fuel-pump-diaphragm-positioning-tool.stlfuel-pump-diaphragm-positioning-tool.stl.STL
[02]Bounding box75.000 × 55.000 × 43.000 mm
[03]Volume24,003.538 mm³

Owner notes

BY DENNIS VOGEL (DENVOGEL)

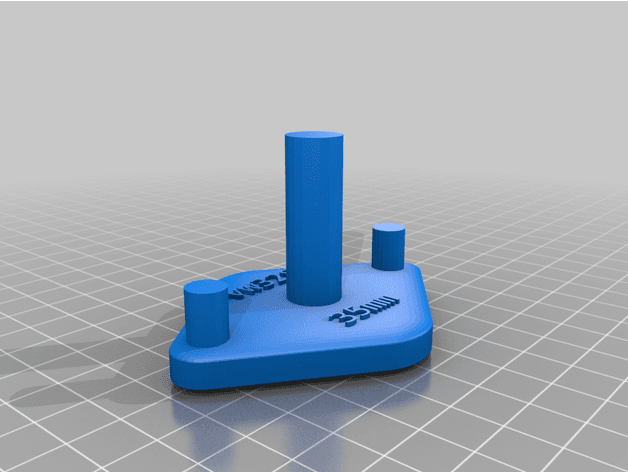

Tool used to set the fuel-pump diaphragm position during rebuilding before securing the pump top. The creator identifies it for VW 25/36 hp and Porsche 356 A/early B engines.
