Rear Main Seal Installation Tool

PLAMULTI-PART2 FILESCC-BY-NCInstallation & alignment jigs

PART RECORDREF 1922

PART: Rear Main Seal Installation Tool
OEM: —
FITS: 944, 968

Loading 3D viewer...

RECORD · RA / 19222 geometry filesInteractive preview

Fitment photographs

4 PLATES

Rear Main Seal Installation Tool — image 1 of 4

PLATE 01 / 04No caption recorded

File manifest

MAN-1922

[01]944_RMS_Tool_Mandrel_R2.STL944_RMS_Tool_Mandrel_R2.STL.STL
[02]944_RMS_Tool_Arbor_R2.STL944_RMS_Tool_Arbor_R2.STL.STL
[03]Bounding box242.999 × 150.000 × 35.000 mm
[04]Volume157,915.522 mm³

Owner notes

BY ODONNELL944

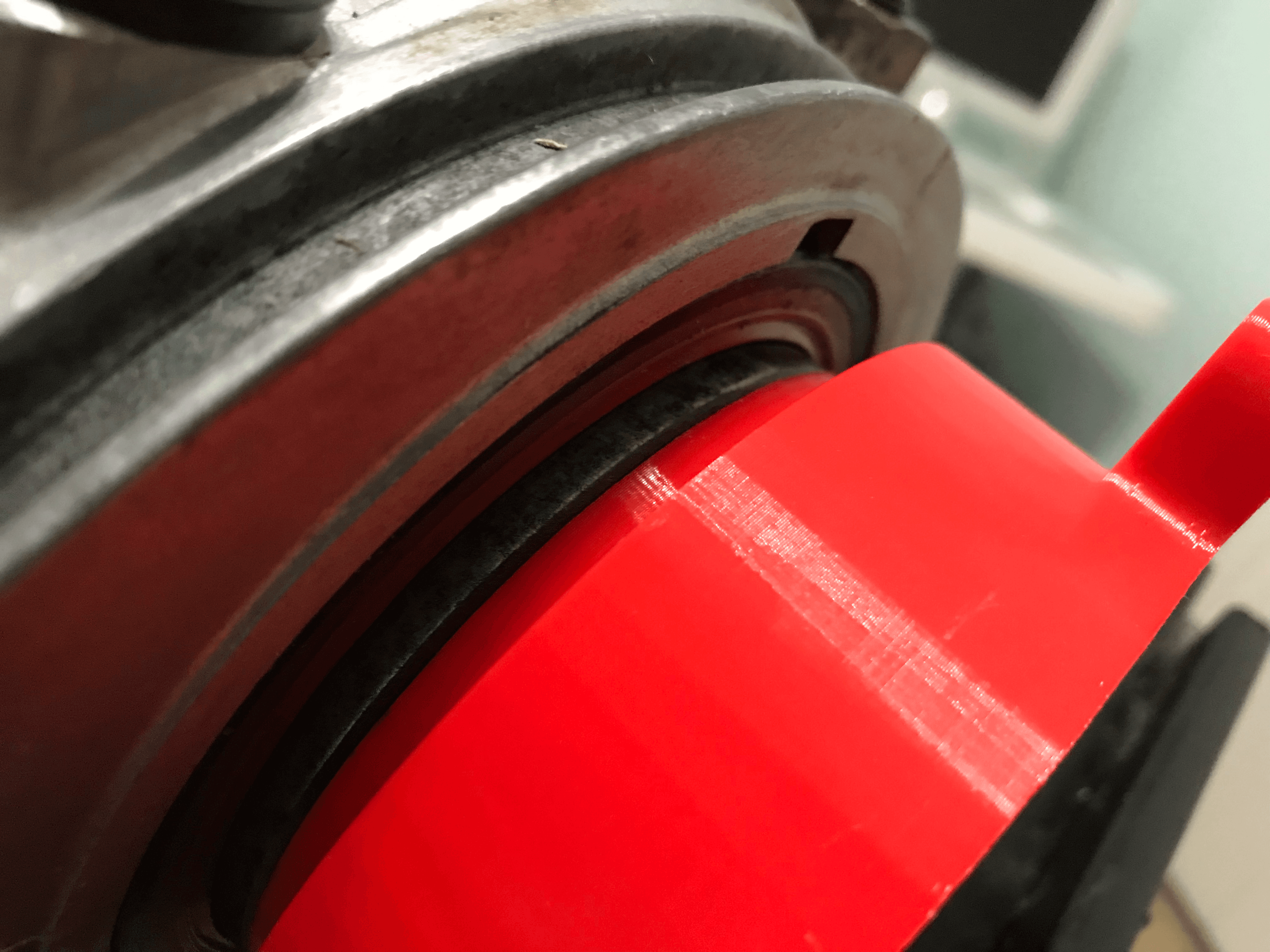

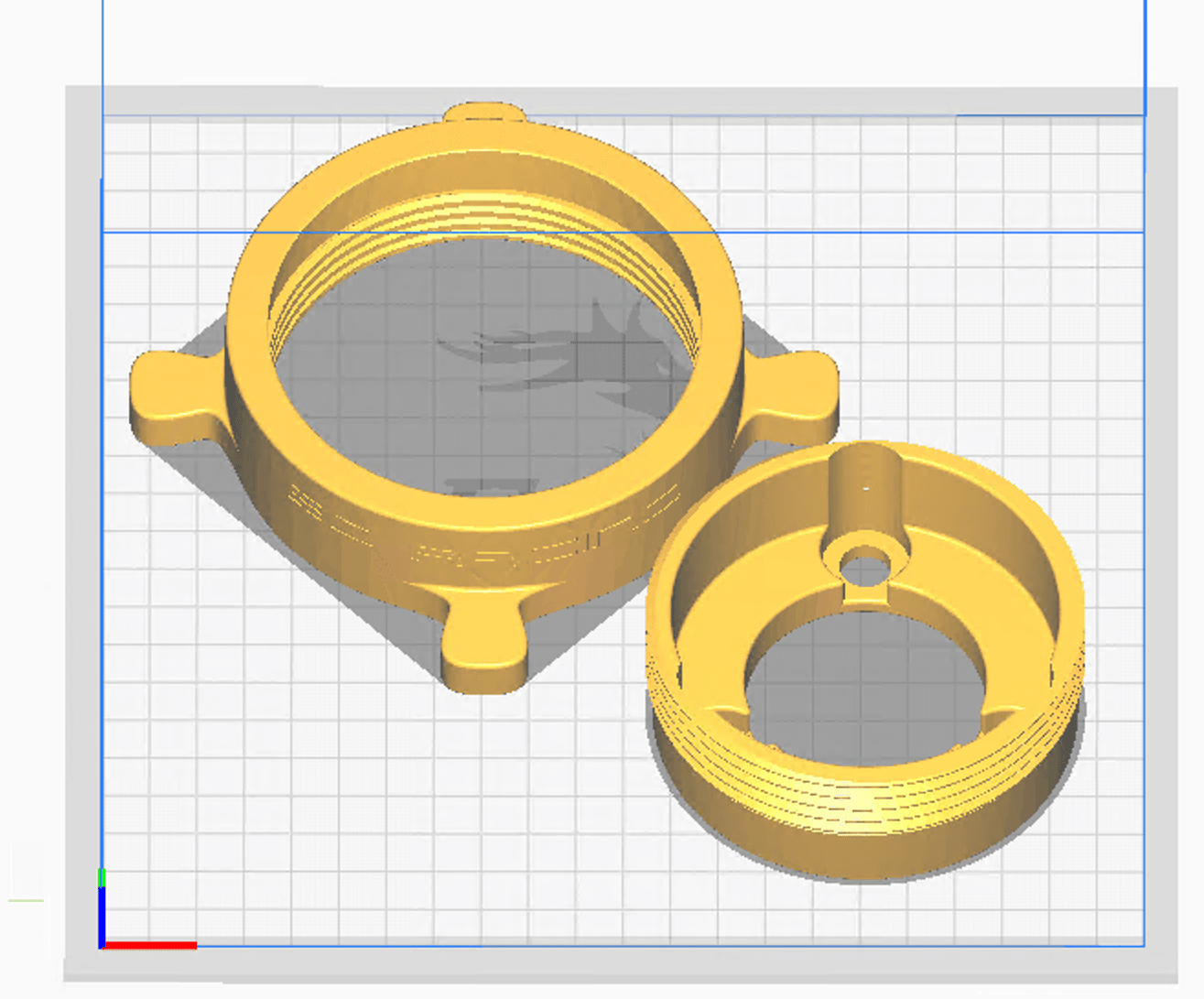

Two-piece threaded arbor and mandrel that press the flywheel-side crankshaft rear main seal squarely into place. The creator recommends lubricating and working the printed threads until they spin smoothly.
