Speaker Adapter Set

ABS · PETG3 FILESCC-BYInterior doors & windows

PART RECORDREF 1939

PART: Speaker Adapter Set
OEM: —
FITS: 911 991

Loading 3D viewer...

RECORD · RA / 19393 geometry filesInteractive preview

Fitment photographs

3 PLATES

PLATE 01 / 03No caption recorded

File manifest

MAN-1939

[01]4inch-v3.stl4inch-v3.stl.STL
[02]e430-v3.stle430-v3.stl.STL
[03]md102-v4.stlmd102-v4.stl.STL
[04]Bounding box118.000 × 103.000 × 9.000 mm
[05]Volume29,275.149 mm³

Owner notes

BY FLGFISH

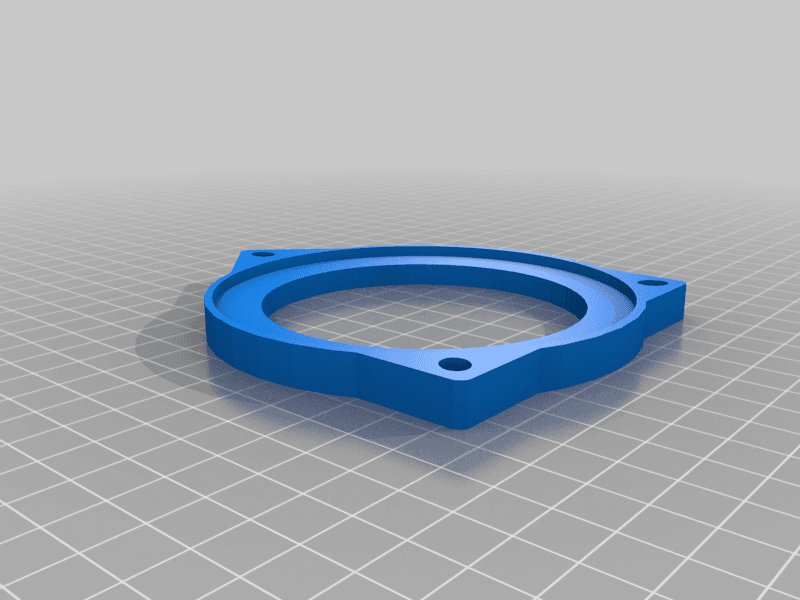

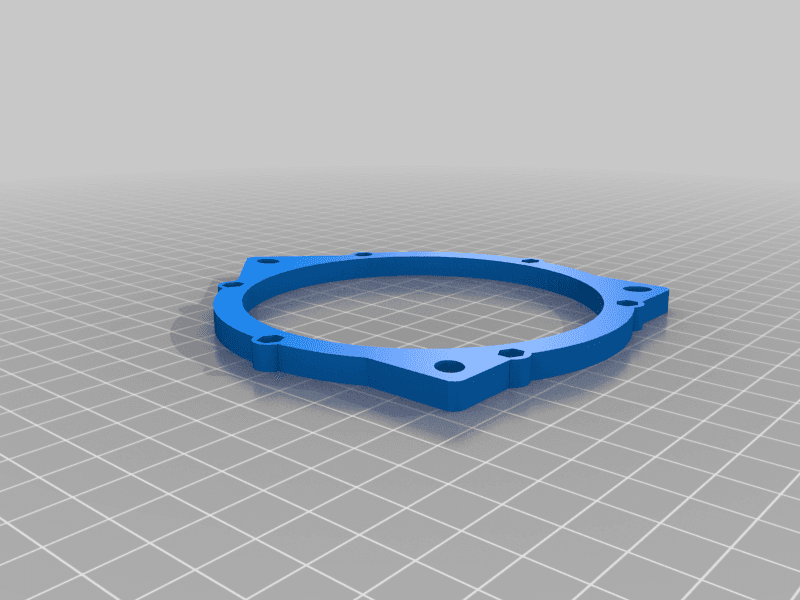

Adapters for 4-inch door and rear midrange drivers plus a two-piece Dynaudio MD-102 tweeter mount. The source covers Dayton Audio RS100/RS100P and Dynaudio E430 midranges; the tweeter mount requires Burmester grilles or modified Bose/SPP grilles and its two pieces are bonded before installation.

View original source ↗
