Porsche 924

Browse free 3D-printable replacement parts and accessories for the Porsche 924, covering 924. Preview models and download STL files.

1 GENERATION9 PARTS

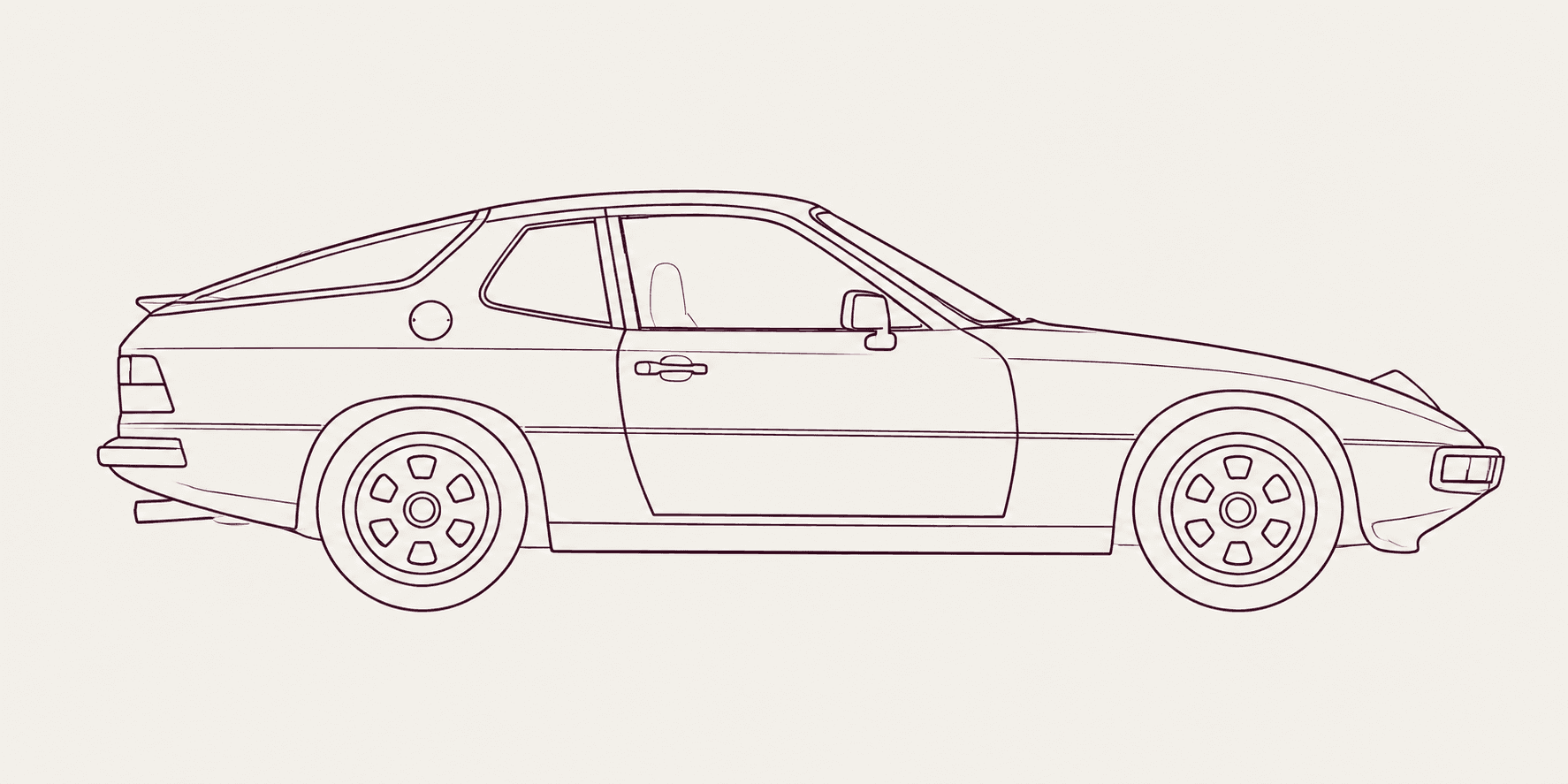

Model side elevation
Porsche 924 side profile
01Generations
1
  1. WP1976–1988
    924
    View parts
Vehicle guidePorsche 924

Find the correct 924 generation

Choose the matching 924 generation and confirm its model years before downloading. Then use the individual part's assigned vehicles, description, dimensions, photographs and OEM references to assess compatibility.

What each part record includes

The 924 catalog separates files by exact generation. Each part record brings together its STL files, compatible vehicles, recommended materials, dimensions, category and source attribution.

03Filed records
9 parts
Part2003
Extended Door Handle Linkage Ball Socket

Extended Door Handle Linkage Ball Socket

Extended ball-socket connector for the exterior door-handle linkage, designed to add adjustment when the lever must be pulled too far or is difficult to reconnect. It uses an extra M5 nut; the creator prints it open-slot side up without supports at 0.2 mm layers and about 15% infill.

ABS · PETGInterior doors & windows
Fits924
0by Trefor Willingham (Tref67)
Part1999
Door Handle Linkage Ball Socket

Door Handle Linkage Ball Socket

Threaded plastic ball-socket end for the door-handle drop linkage. The creator says the lower opening must be threaded after printing.

ABS · PETGDoors, bonnet, boot & bed hardware
Fits924 · 944
0by Zquirp
Part1995
Adjustable Clutch Pedal Stop

Adjustable Clutch Pedal Stop

Adjustable clutch-pedal stop intended to reduce pedal travel. The creator specifies a 60 mm or 80 mm M10 hex-head bolt and nut, two 20 mm M4 bolts with nuts, four 12 mm washers, threadlocker, and PETG.

PETGTransmission & drivetrain
Fits924 · 944
0by Anxious_cucumber
Part1991
Alternator Cooling Duct

Alternator Cooling Duct

Streamlined replacement alternator cooling duct modeled from a 3D scan of the original failure-prone part and shaped for support-free printing. The creator printed it in PA12 and reports that PETG has also been tested.

Nylon · PETGEngine-bay electrical & sensors
Fits924 · 944
0by Sticro1
Part1985
Fender screw caps

Fender screw caps

Push-on replacement caps for the screws that retain the fender; the archive supplies standard and rounded variants.

ABS · PETGBody panels & exterior trim
Fits924 · 944
0by JudyMachner
Part1979
Heater Panel Slider Knob Set

Heater Panel Slider Knob Set

Replacement set for the heater-panel slider levers, supplied as separate upper and lower STL models.

ABS · PETGDashboard & controls
Fits924
0by valfa14
Part1940

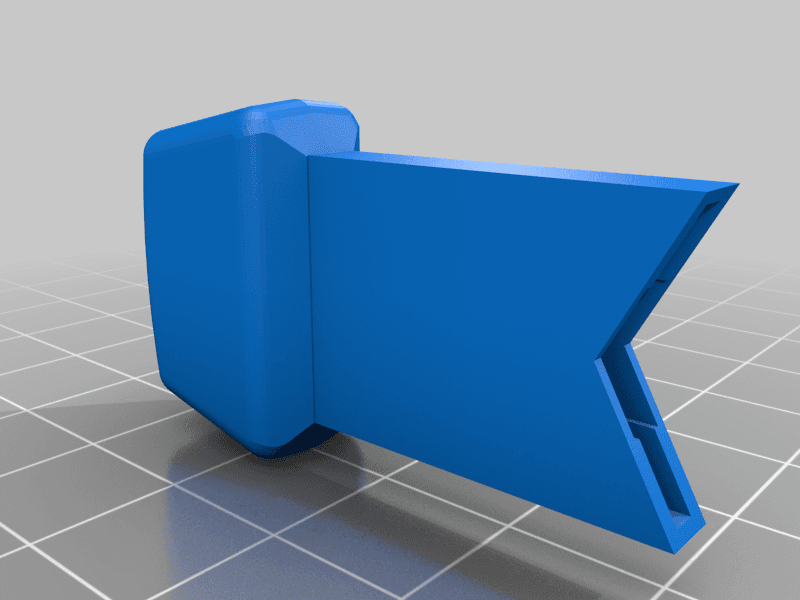

Heater Control Lever Knob

Heater Control Lever Knob

Replacement for disintegrating heater-panel lever knobs. The single arrowless design presses onto and can be removed from the heater-control levers; it intentionally omits the faint side arrows found on two originals.

ABS · PETGDashboard & controls
Fits924
0by Hormoslyr
Part1938
Seat Back Release Control Button

Seat Back Release Control Button

Printable replacement for the break-prone front-seat backrest release control button, modeled from the shared latch style used across the listed seat applications.

PLASeats & restraints
Fits911 G Model · 911 964 · 911 993 · 924 · 928 · 944 · 968
0by rwaudio
Part1909

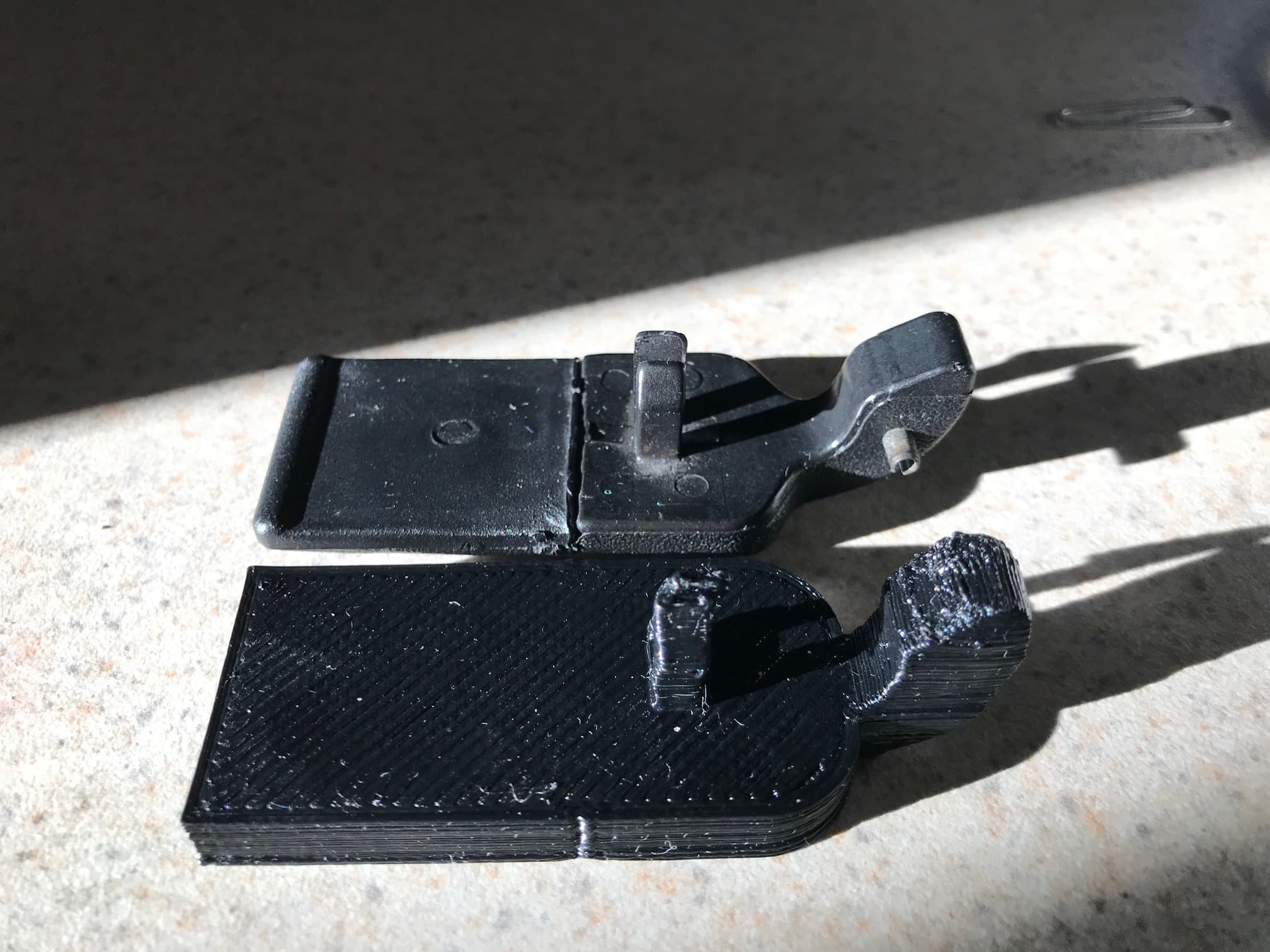

Electric sunroof latch lever

Electric sunroof latch lever

Replacement lever for the electric sunroof latch. The creator reports that a printed and installed version works; the second, fixed STL is the latest version and uses a solid peg after the split design repeatedly broke.

ABS · PETGCabin trim, cargo & roof
Fits924 · 944
0by jvandyke
