Porsche 944
Browse free 3D-printable replacement parts and accessories for the Porsche 944, covering 944. Preview models and download STL files.

Find the correct 944 generation
Choose the matching 944 generation and confirm its model years before downloading. Then use the individual part's assigned vehicles, description, dimensions, photographs and OEM references to assess compatibility.
What each part record includes
The 944 catalog separates files by exact generation. Each part record brings together its STL files, compatible vehicles, recommended materials, dimensions, category and source attribution.

Door Handle Linkage Ball Socket
Threaded plastic ball-socket end for the door-handle drop linkage. The creator says the lower opening must be threaded after printing.

Adjustable Clutch Pedal Stop
Adjustable clutch-pedal stop intended to reduce pedal travel. The creator specifies a 60 mm or 80 mm M10 hex-head bolt and nut, two 20 mm M4 bolts with nuts, four 12 mm washers, threadlocker, and PETG.

Interior Door Handle Finger Plate
Replacement finger plate for an early interior door-release handle, modeled after degraded original trim during an upholstery restoration. The creator printed it in ABS for optional acetone smoothing and says PLA should also work.

Alternator Cooling Duct
Streamlined replacement alternator cooling duct modeled from a 3D scan of the original failure-prone part and shaped for support-free printing. The creator printed it in PA12 and reports that PETG has also been tested.

Interior Trim Screw Cover
Round push-in cover for an interior-trim screw opening, with the opening enlarged by the creator for the larger screws used in their installation.

Fender screw caps
Push-on replacement caps for the screws that retain the fender; the archive supplies standard and rounded variants.

Front Speaker Grille
Replacement front speaker grille for late-model 944 cars, modeled around Tref67's speaker spacer after the creator found both pieces missing.

Ashtray-Replacement Coin Tray
Three-part clip-in center-console coin tray that replaces the ashtray. The creator directs users to slide the parts together, glue the seams, and apply fabric tape at the sides to improve fit and reduce rattles.

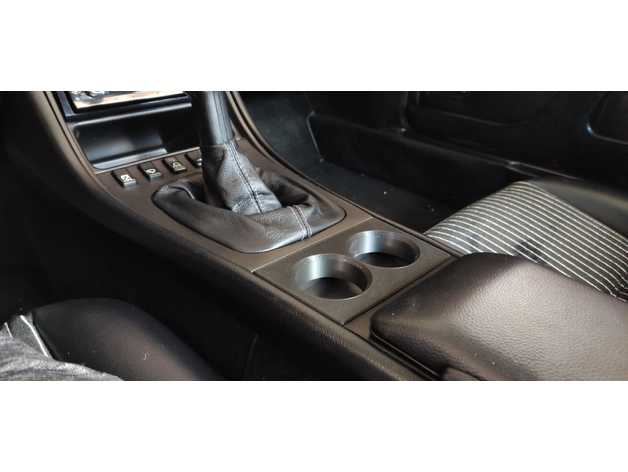

Ashtray-Replacement Cup Holder
Clip-in dual cup holder replacing the centre-console ashtray, with multiple drink-size adapters, a watertight compartment and a flexible anti-rattle mat.

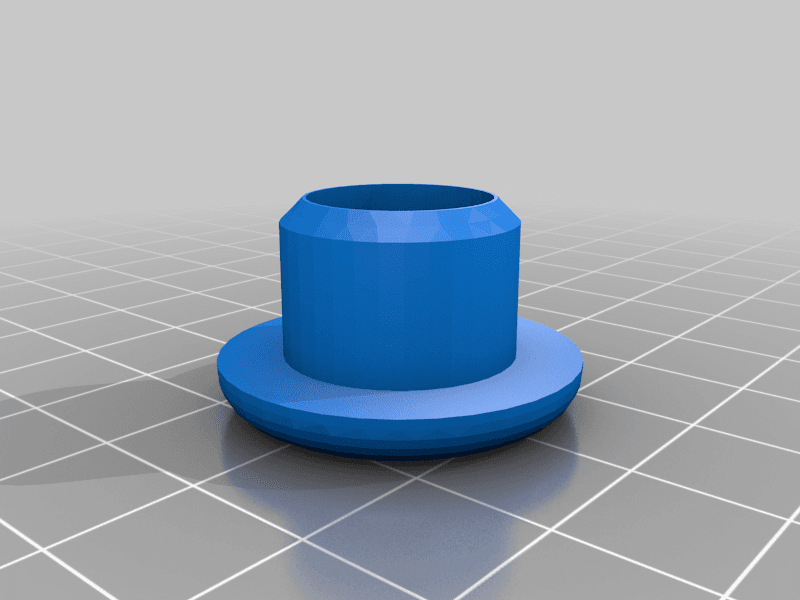

Headlight Washer Hole Cap
Cap for unused headlight-washer openings in Turbo and S2-style front bumpers.

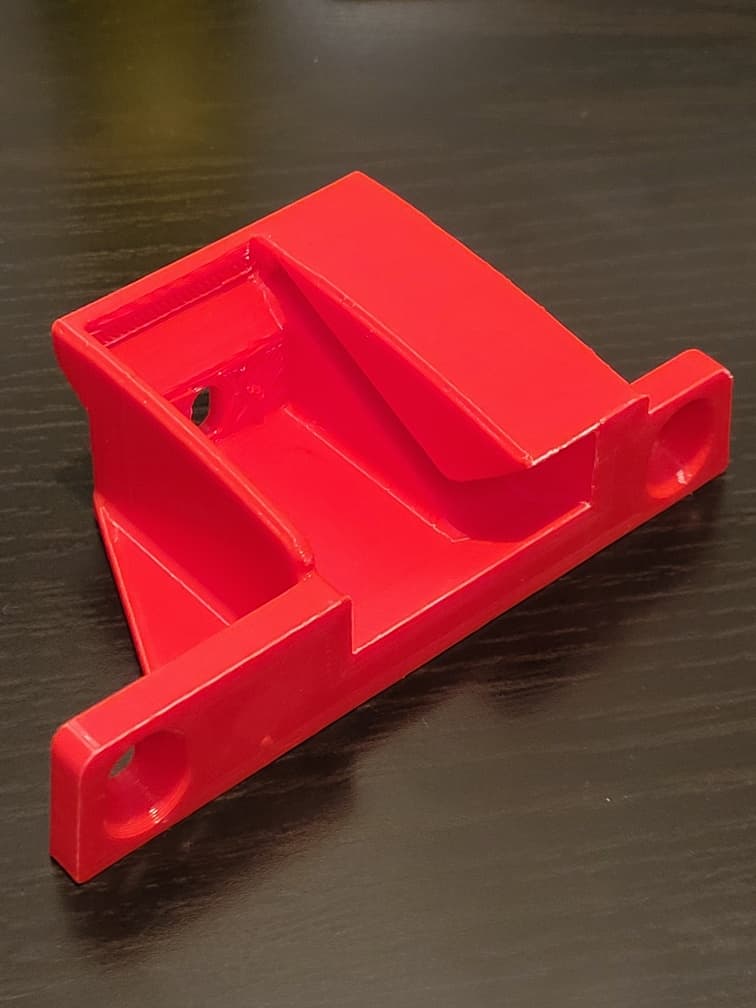

Right Rear Sunroof Gate Guide
Right-rear guide that receives the electric sunroof lifting arm and raises the roof. The creator reports that right and left guides restored operation on a 1984 car and says the opposite side can be produced by mirroring this model.

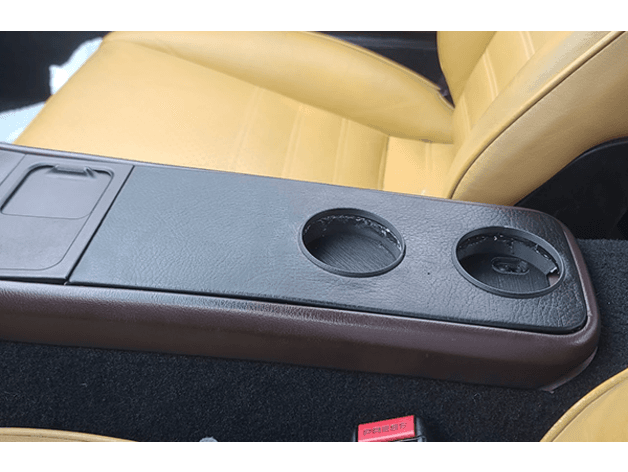

Center Console Cupholder Replacement
Two-piece center-console cupholder replacement designed 1 mm smaller than the stock console to allow vinyl wrapping. The creator plastic-welded the pieces, wrapped the assembly in vinyl, and supplied printable inserts plus a logo stencil.

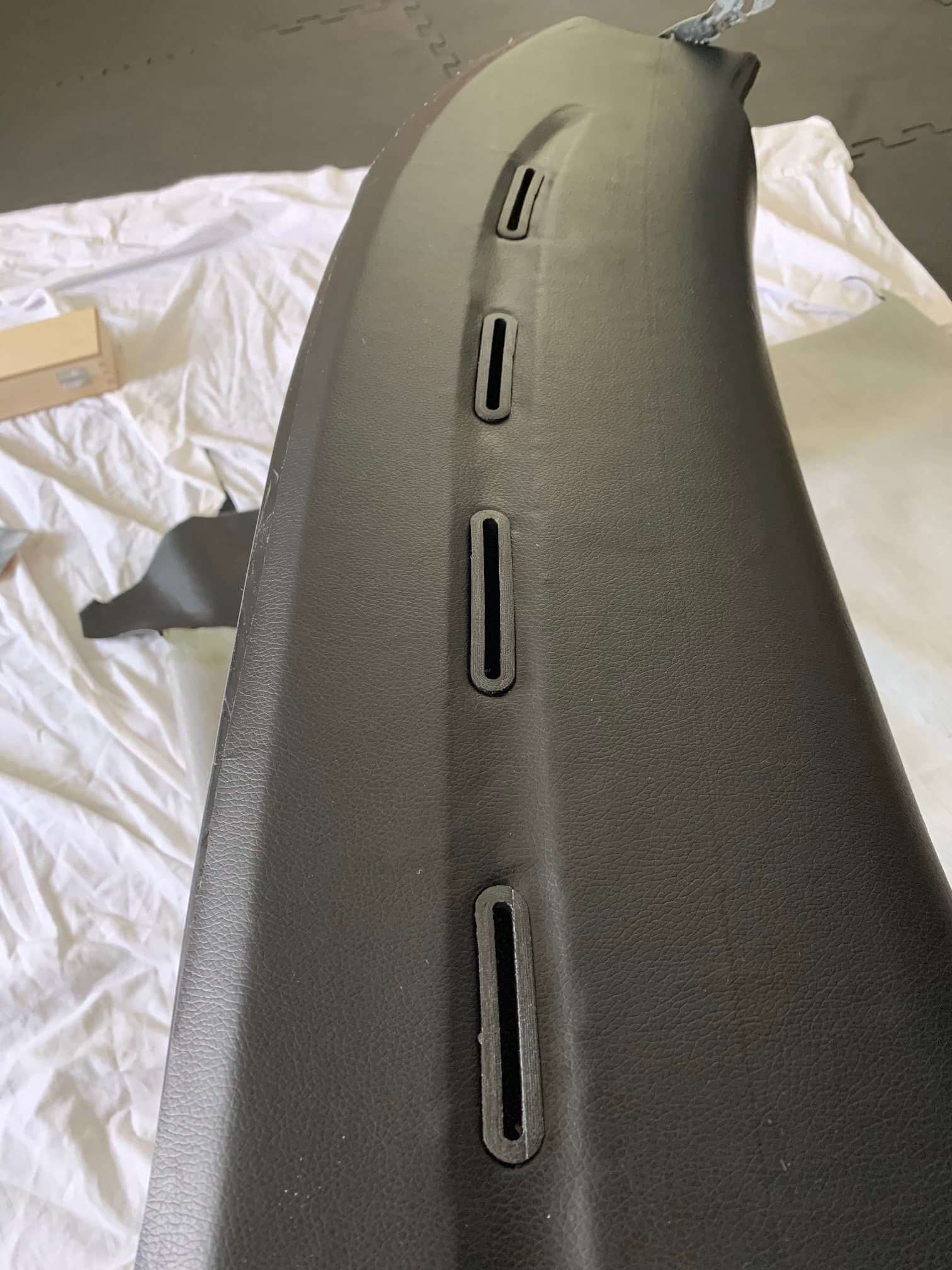

Dashboard Vent Insert Set
Five snap-in inserts for the dashboard vent openings that hold recovered vinyl around the holes without glue. The creator says they snap into place and prints them in ABS.

Air-Filter Box Strap-Mount Repair Bracket
Repair bracket for the broken air-filter-box arm that retains the metal band connecting the housing to the turbocharger discharge/intercooler pipe. The printed bracket attaches to the top of the box by hot stapling, plastic welding, or adhesive and uses a small pin for the steel band.

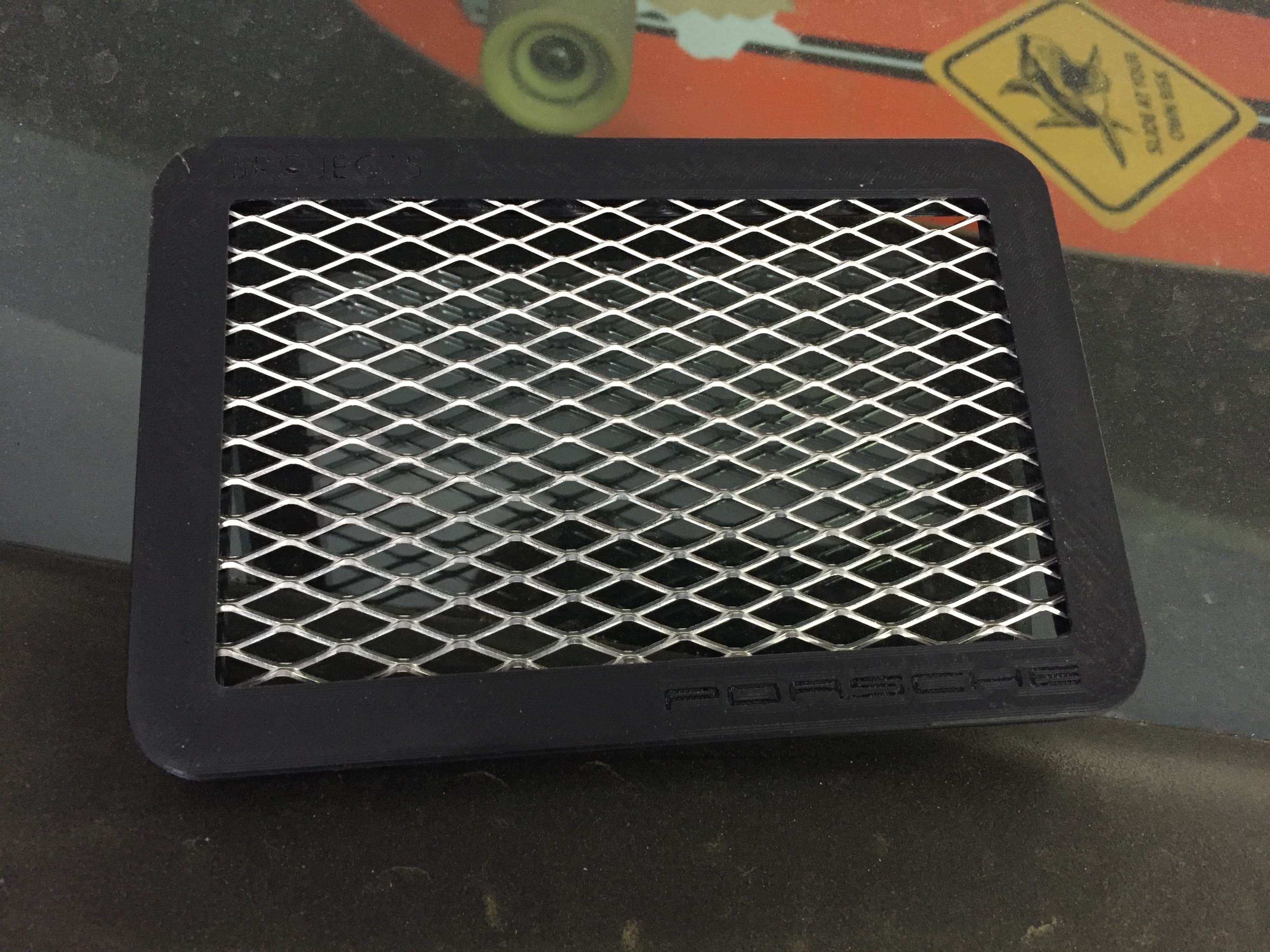

Blower Intake Grille
Replacement blower-intake grille offered as an integrated printable-mesh cover or an open frame for a separate filter or aluminum mesh.

Seat Back Release Control Button
Printable replacement for the break-prone front-seat backrest release control button, modeled from the shared latch style used across the listed seat applications.

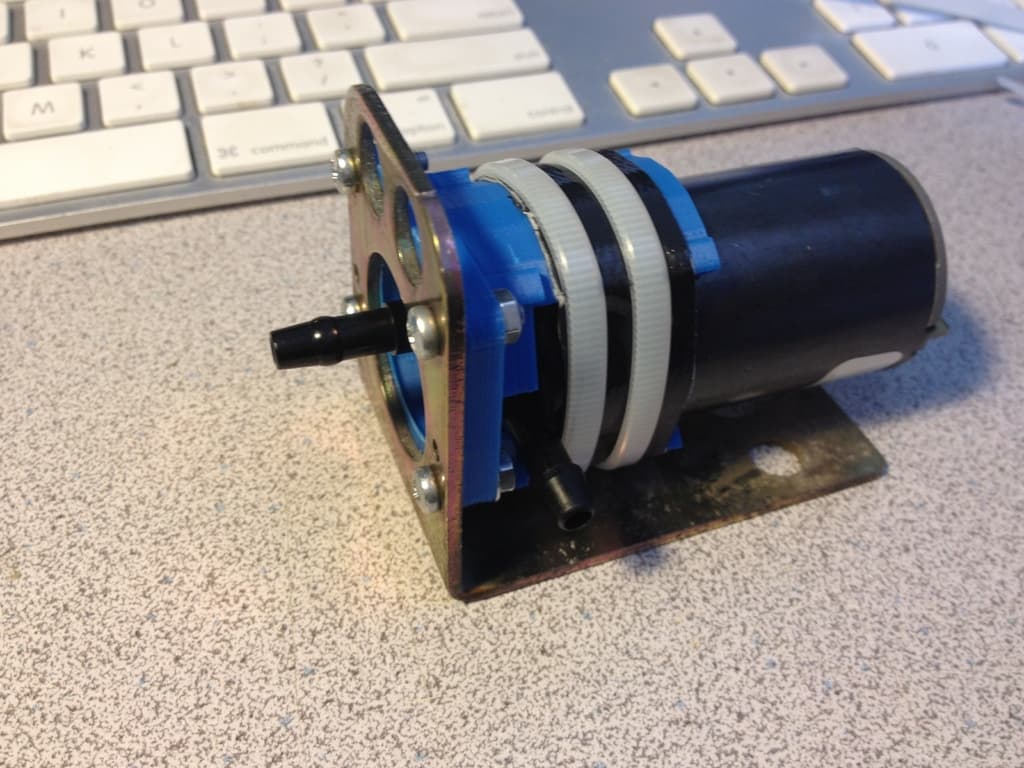

Windshield Washer Pump Adapter
Adapter for mounting an Advance Auto Parts #172650 Camaro washer pump to the factory VDO washer-pump bracket. It mounts with 3x8 mm or 3x12 mm machine screws; the pump is retained with heavy-duty tape and two ties.

Early-OPRV Oil-Cooler Alignment Tool
Alignment mandrel for centering the oil-cooler housing during reinstallation on vehicles with the early oil-pressure relief valve. The creator states that the design is untested and based on rough measurements.

Rear Main Seal Installation Tool
Two-piece threaded arbor and mandrel that press the flywheel-side crankshaft rear main seal squarely into place. The creator recommends lubricating and working the printed threads until they spin smoothly.

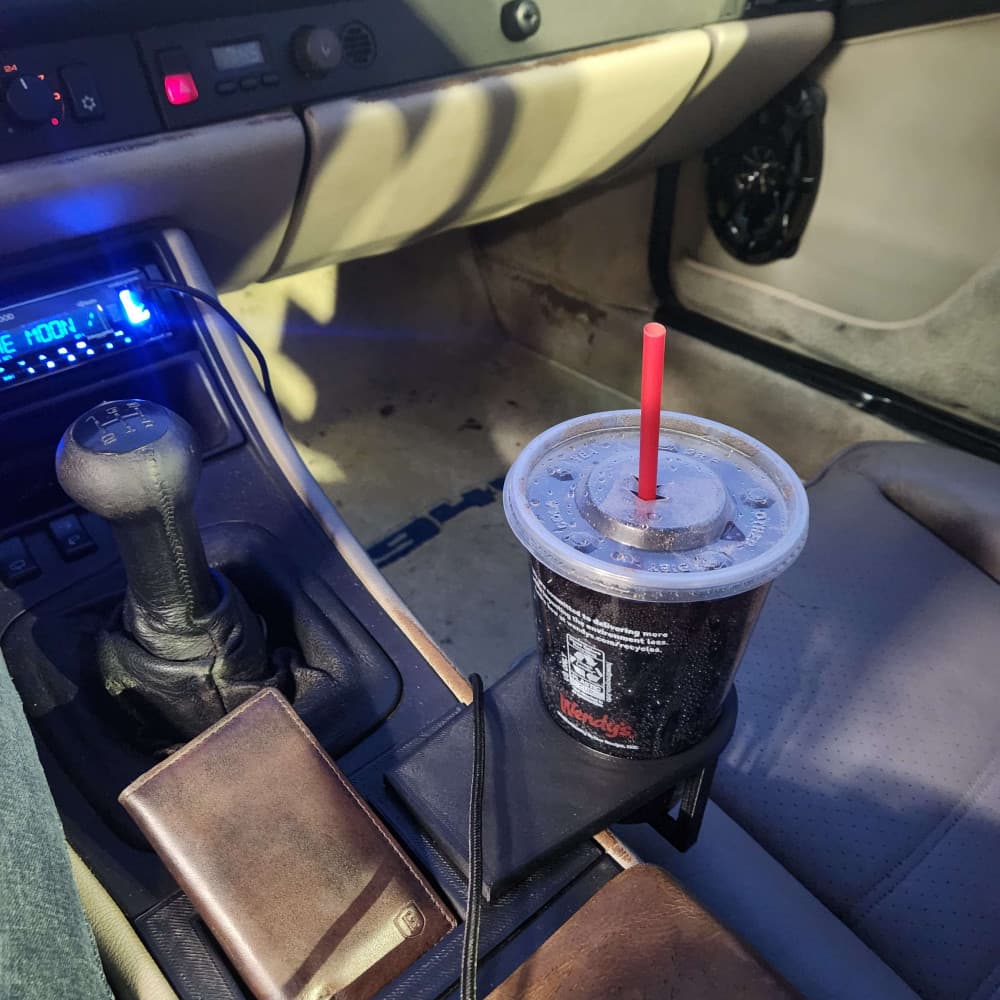

Ashtray-Replacement Cupholder
Ashtray-replacement cupholder for the late-style interior. The fixed right lip slides over the existing mount and a printed plug retains the left side, while the cupholder section remains removable when not in use.

Electric sunroof latch lever
Replacement lever for the electric sunroof latch. The creator reports that a printed and installed version works; the second, fixed STL is the latest version and uses a solid peg after the split design repeatedly broke.
