PART: Clutch-Alignment Tool
OEM: —
FITS: 911 996

Loading 3D viewer...

RECORD · RA / 20233 geometry filesInteractive preview

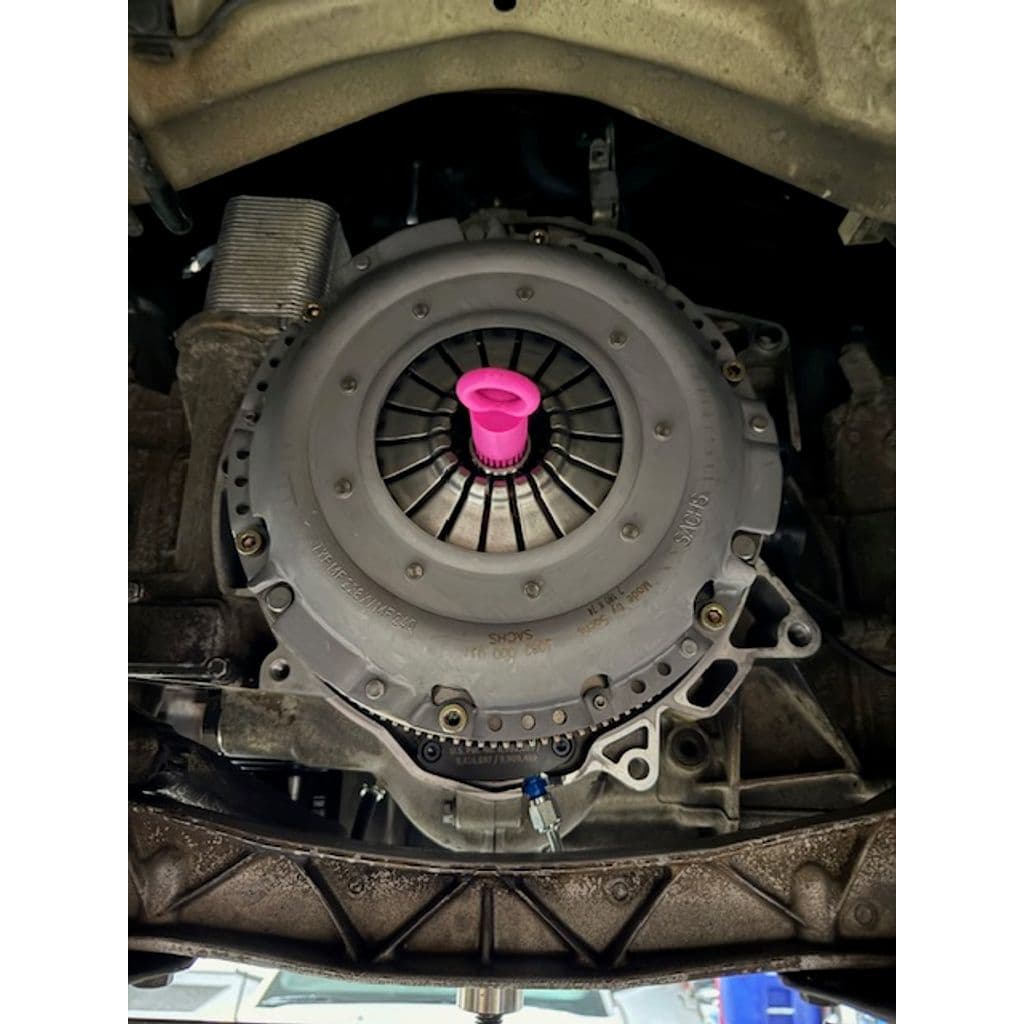

Fitment photographs

2 PLATES

PLATE 01 / 02No caption recorded

File manifest

MAN-2023

[01]6887146-Assembely_ring.stl6887146-Assembely_ring.stl.STL
[02]6887146-Handle.stl6887146-Handle.stl.STL
[03]6887146-Splines.stl6887146-Splines.stl.STL
[04]Bounding box162.367 × 37.151 × 26.670 mm
[05]Volume50,290.561 mm³

Owner notes

BY MGEIDL

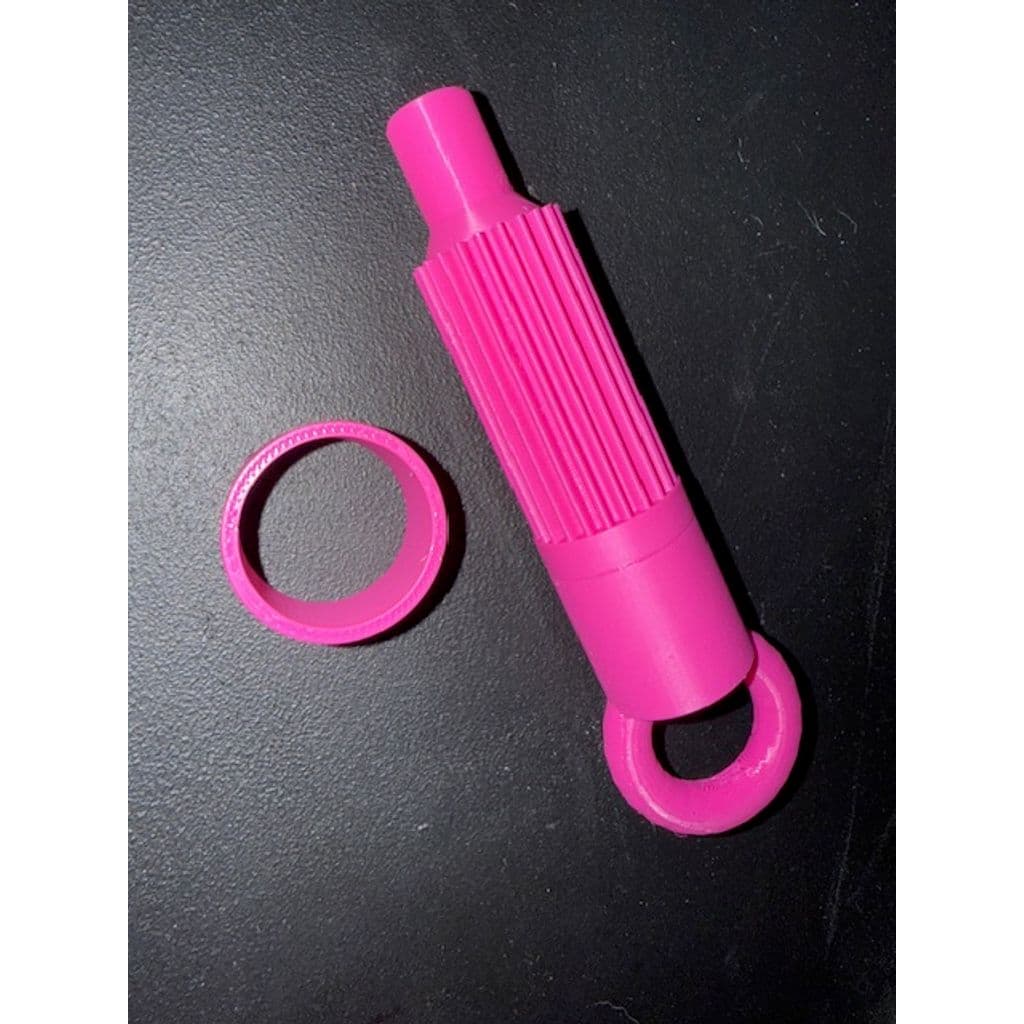

Clutch alignment tool for a 2004 Carrera with 23 splines, 1-inch diameter and 15 mm pilot hole; includes the two tool sections and their assembly ring.
