911 996

Free 3D printable STL files for the Porsche 911 996 (1997–2005). Replacement parts, clips, brackets and accessories.

9961997–200517 PARTS

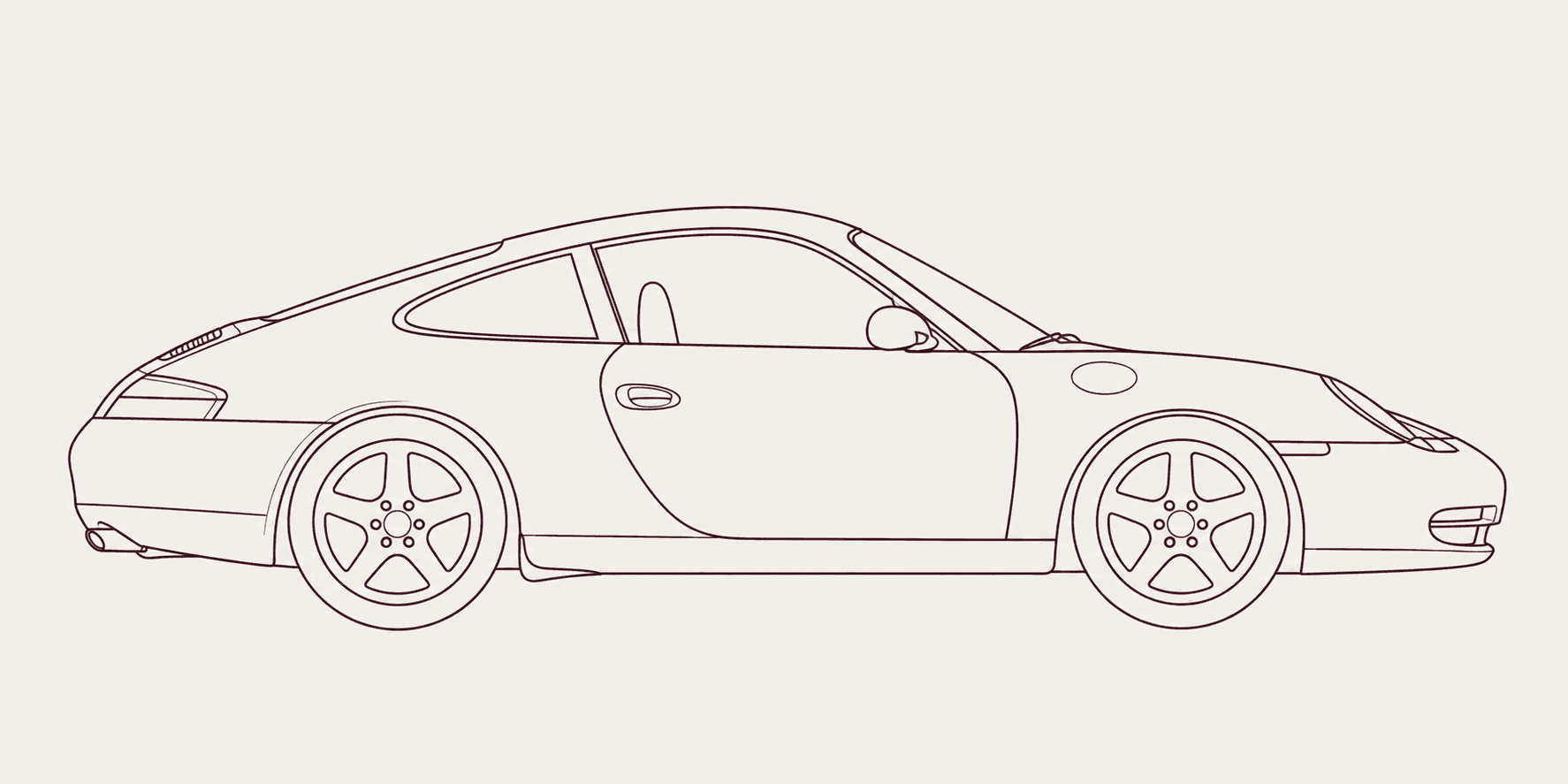

Generation side elevation
Porsche 911 996 side profile
Filed records
17 parts
Part1944
Hardtop Latch Mechanism Cap

Hardtop Latch Mechanism Cap

Replacement cap for the Cabriolet hardtop-latch opening. The creator says it hides the latch mechanism, may need approximately 1% scale adjustment depending on printer accuracy, and should be printed flat-side down.

ABS · PETGCabin trim, cargo & roof
Fits911 996
05by BillRVC
Part1943
Rear Main Seal Installation Tool

Rear Main Seal Installation Tool

Flywheel-bolt-driven installation tool that seats the rear main seal 13 mm below the crank flange; its orientation relief clears the flywheel-flange rivet.

PLAInstallation & alignment jigs
Fits911 996 · Boxster 986
02by Malemsioe
Part1907
Battery Cover Screw Receptacle

Battery Cover Screw Receptacle

Plastic latching receptacle that fits into the front luggage-compartment battery bracket and receives the quarter-turn battery-cover screw plug.

ABS · PETGDoors, bonnet, boot & bed hardware
Fits911 996 · Boxster 987
01by mrhill_icb
Part2023
Clutch-Alignment Tool

Clutch-Alignment Tool

Clutch alignment tool for a 2004 Carrera with 23 splines, 1-inch diameter and 15 mm pilot hole; includes the two tool sections and their assembly ring.

PLAInstallation & alignment jigs
Fits911 996
00by mgeidl
Part2021
Cup-Holder Quadrant Gear

Cup-Holder Quadrant Gear

Replacement sliding-face-plate quadrant gear for 2002–2005 cars, supplied as left- and right-hand-drive variants.

PETGConsole & storage
Fits911 996
00by Simon_Pritchard
Part2019
Ashtray-Delete Cup Holder

Ashtray-Delete Cup Holder

Two-piece cup holder that mounts with the existing screws after removal of the ashtray-delete rubber liner while retaining access to the storage compartment.

PETGConsole & storage
Fits911 996
00by BillRVC
Part2012
Cupholder Phone Mount — 69 mm

Cupholder Phone Mount — 69 mm

Phone holder for the shared dashboard cupholder slot; this version fits the 69 mm-wide slot and permits a USB charging connection.

ABSConsole & storage
Fits911 996
00by vincent horn (choucroutemelba)
Part2001
Upper Dashboard Storage Cubby

Upper Dashboard Storage Cubby

Replacement for the upper square CD-case storage unit in the dashboard, with a top cable-routing port for a USB/Bluetooth module. The creator printed it in resin and reports good fit.

PETGConsole & storage
Fits911 996 · Boxster 986
00by skazarian
Part1975
Instrument Cluster Dial Knob Shaft

Instrument Cluster Dial Knob Shaft

Replacement shaft for the instrument-cluster trip and dimmer controls, measured from an OEM stalk. The creator recommends resin or ABS for resolution and heat resistance and notes that sanding may be needed for a close fit.

ABSDashboard & controls
Fits911 996 · Boxster 986
00by winsalot
Part1946
Camshaft Holding-Down Tool

Camshaft Holding-Down Tool

Printable camshaft holding-down tool for early five-chain engines in the Boxster 986 and 911 996. The tool holds the camshafts during cylinder-head-cover removal and reassembly.

ABS · PETGInstallation & alignment jigs
Fits911 996 · Boxster 986
00by steevo67
Part1926
Removable Side-Console Cup Holder

Removable Side-Console Cup Holder

Removable cup holder that screws to a padded center-console side panel with four M3 threaded inserts and four M3 screws. The holder slides upward off its bracket for full seat travel; the supplied orientation is for the right side and can be mirrored for the left.

ABS · PETGConsole & storage
Fits911 996
00by MagnusT
Part1910
Dashboard Tweeter Retaining Clip

Dashboard Tweeter Retaining Clip

Flat-backed replacement clip for retaining a front dashboard tweeter when the original plastic clip has become brittle.

ABS · PETGDashboard & controls
Fits911 996 · Boxster 986
00by FiniteProjects
Part1903
Front and Rear 4-Inch Speaker Adapter Set

Front and Rear 4-Inch Speaker Adapter Set

Separate front-dashboard and rear rings for mounting 4-inch replacement speakers. The front and rear geometries differ, and installation requires cutting the new speakers' mounting tabs and bonding their outer rings to the adapters.

ABS · PETGDashboard & controls
Fits911 996
00by Chuck Wyman (cwyman1)

End of the racks · 17 entries
