Rear Main Seal Installation Tool

PLA1 FILECC-BYInstallation & alignment jigs

PART RECORDREF 1943

PART: Rear Main Seal Installation Tool
OEM: —
FITS: 911 996, Boxster 986

Loading 3D viewer...

RECORD · RA / 19431 geometry fileInteractive preview

Fitment photographs

3 PLATES

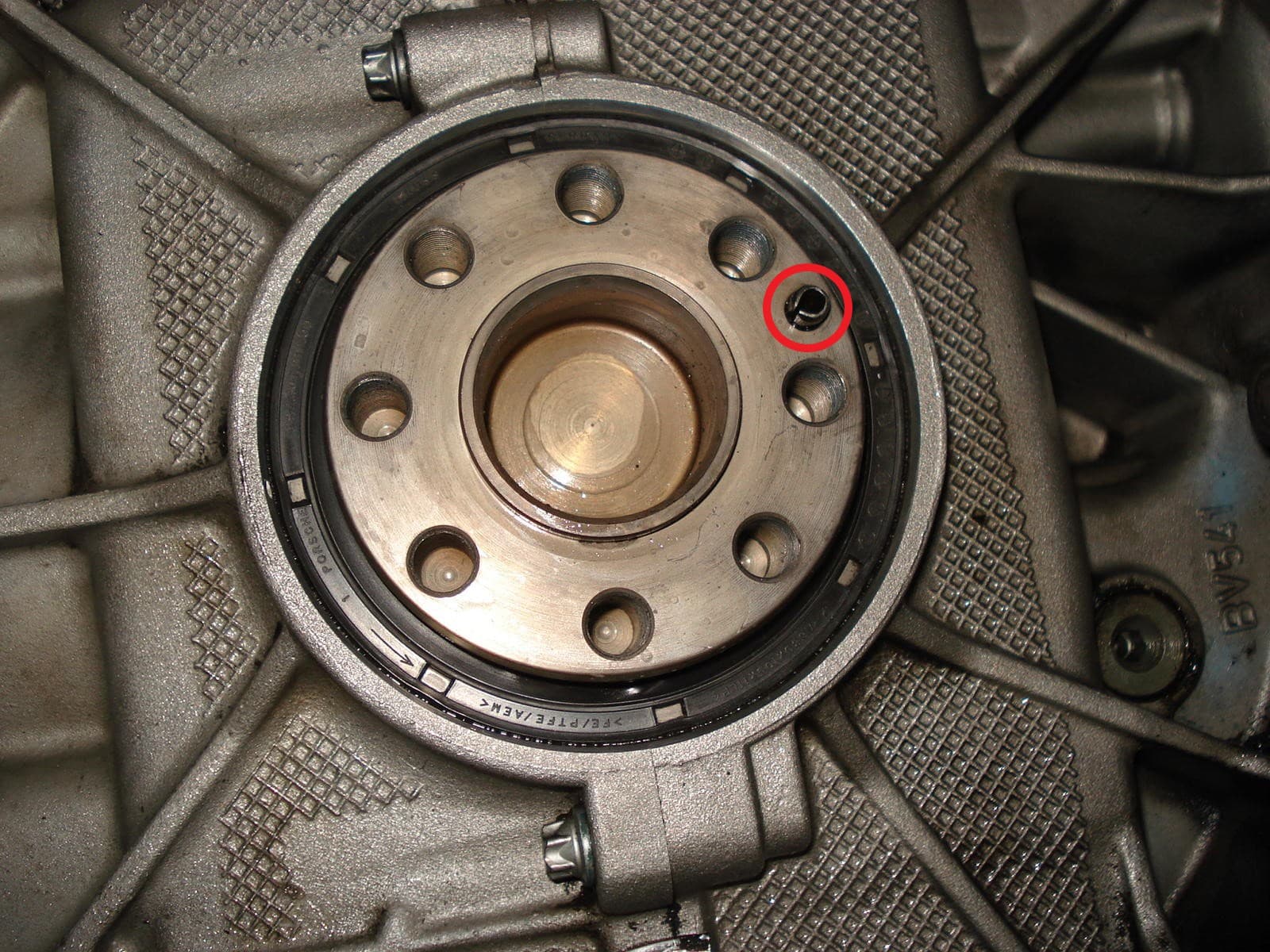

Rear Main Seal Installation Tool — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-1943

[01]RMS_Tool_996.stlRMS_Tool_996.stl.STL
[02]Bounding box101.000 × 101.000 × 40.000 mm
[03]Volume138,070.313 mm³

Owner notes

BY MALEMSIOE

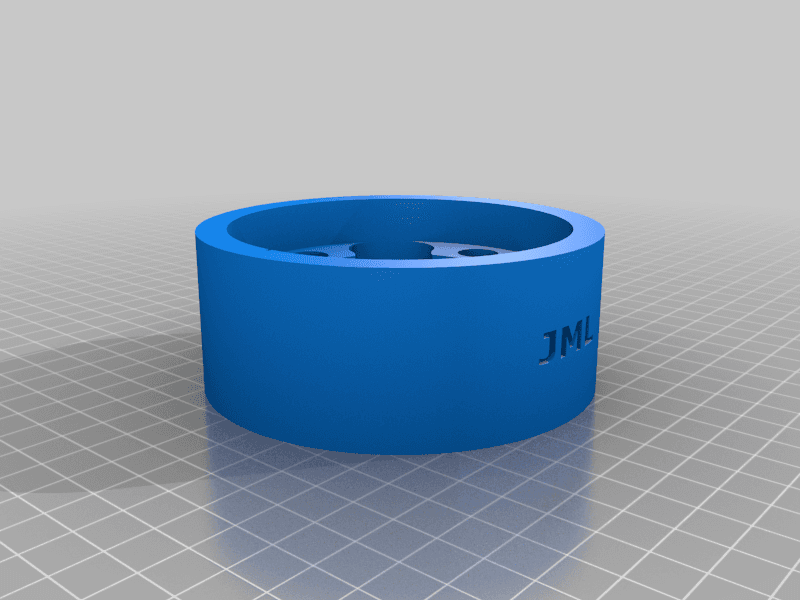

Flywheel-bolt-driven installation tool that seats the rear main seal 13 mm below the crank flange; its orientation relief clears the flywheel-flange rivet.
