Cup-Holder Quadrant Gear

PETG2 FILES0 DOWNLOADSCC-BYConsole & storage

PART RECORDREF 2021

Loading 3D viewer...

RECORD · RA / 20212 geometry filesInteractive preview

Fitment photographs

2 PLATES

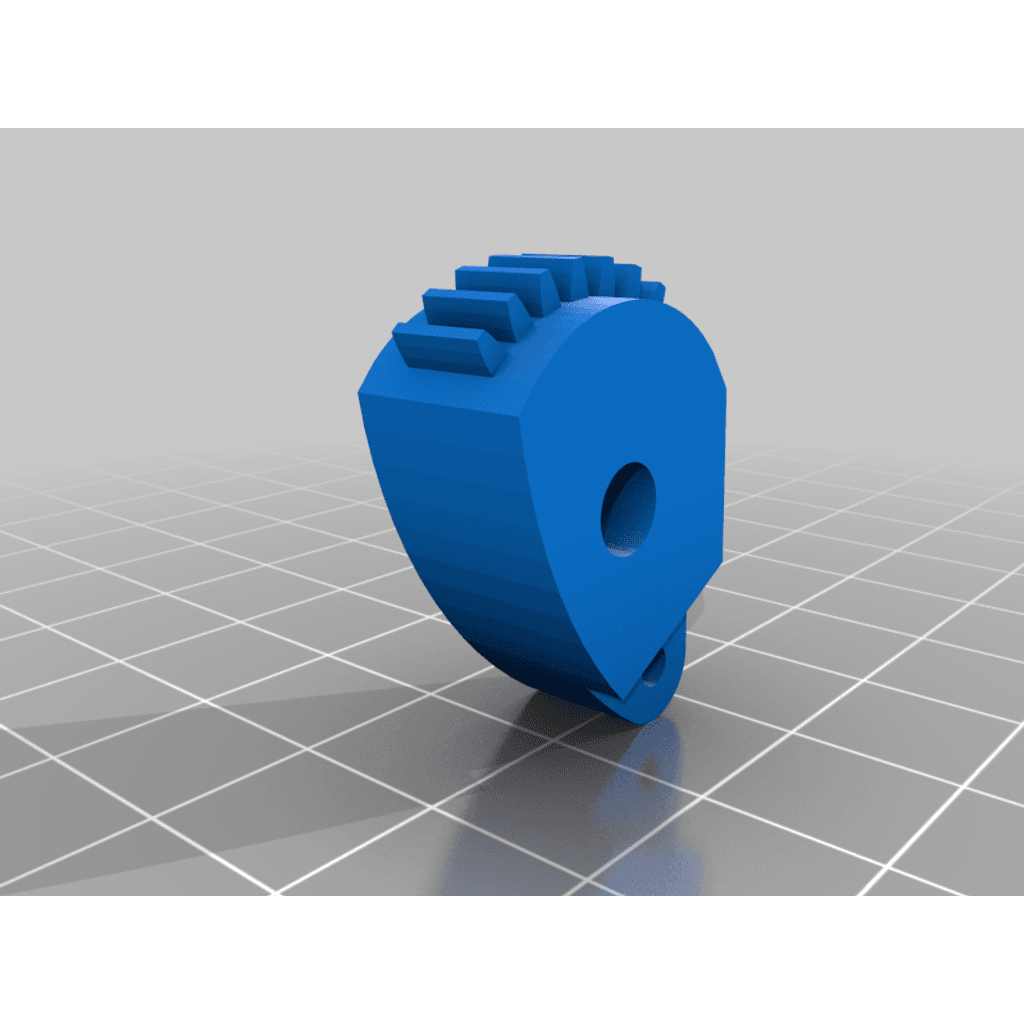

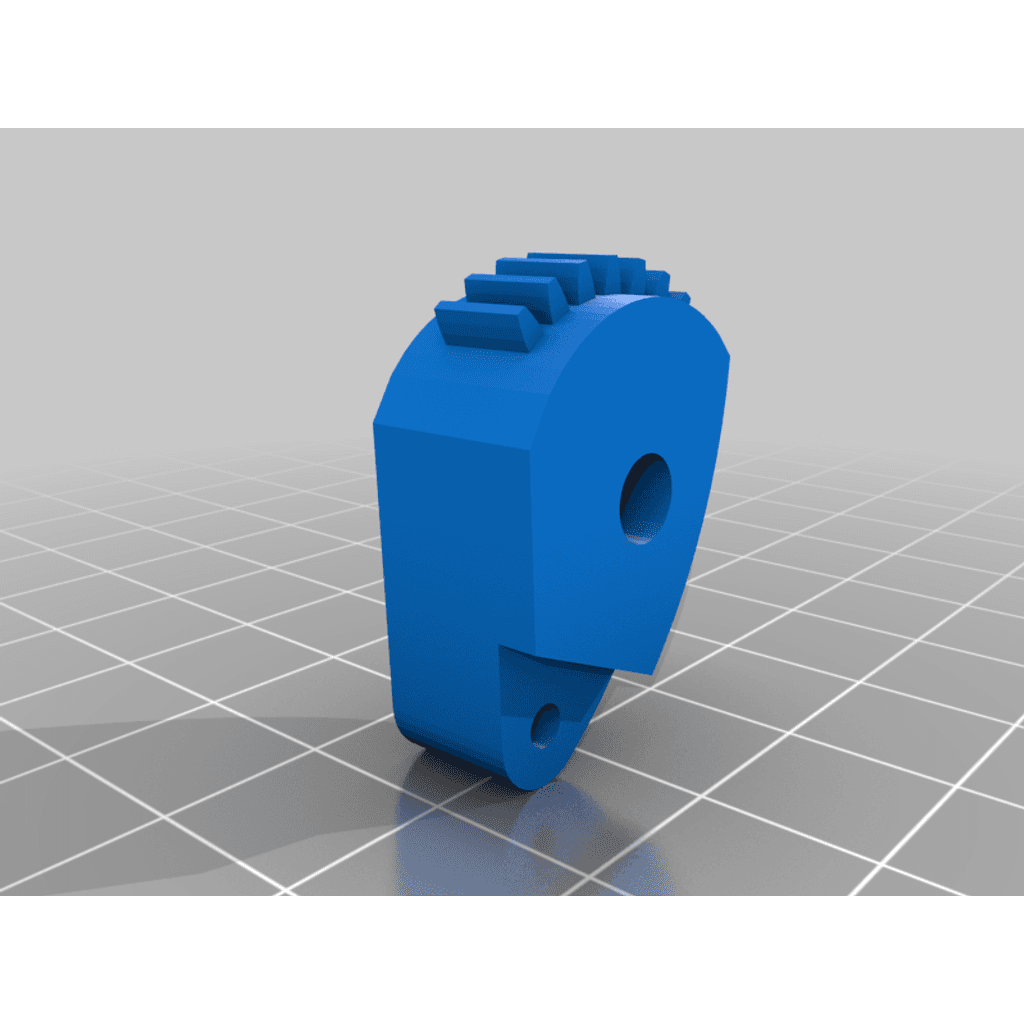

PLATE 01 / 02No caption recorded

File manifest

MAN-2021

[01]5249292-996_cup_holder_quadrant_LHD.STL5249292-996_cup_holder_quadrant_LHD.STL.STL
[02]5249292-996_cup_holder_quadrant_RHD.STL5249292-996_cup_holder_quadrant_RHD.STL.STL
[03]Bounding box27.855 × 17.667 × 10.500 mm
[04]Volume3,187.131 mm³

Owner notes

BY SIMON_PRITCHARD

Replacement sliding-face-plate quadrant gear for 2002–2005 cars, supplied as left- and right-hand-drive variants.
