Cup Holder Retainer and Gear

PETGMULTI-PART2 FILESCC-BYConsole & storage

PART RECORDREF 1950

PART: Cup Holder Retainer and Gear
OEM: —
FITS: Boxster 987, Cayman 987

Loading 3D viewer...

RECORD · RA / 19502 geometry filesInteractive preview

Fitment photographs

7 PLATES

Cup Holder Retainer and Gear — image 1 of 7

PLATE 01 / 07No caption recorded

File manifest

MAN-1950

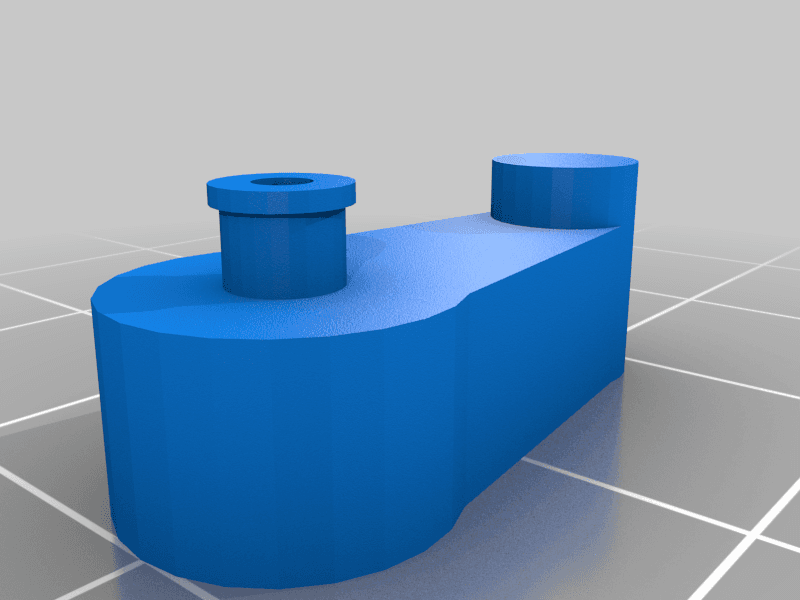

[01]Retainer_Pin.stlRetainer_Pin.stl.STL

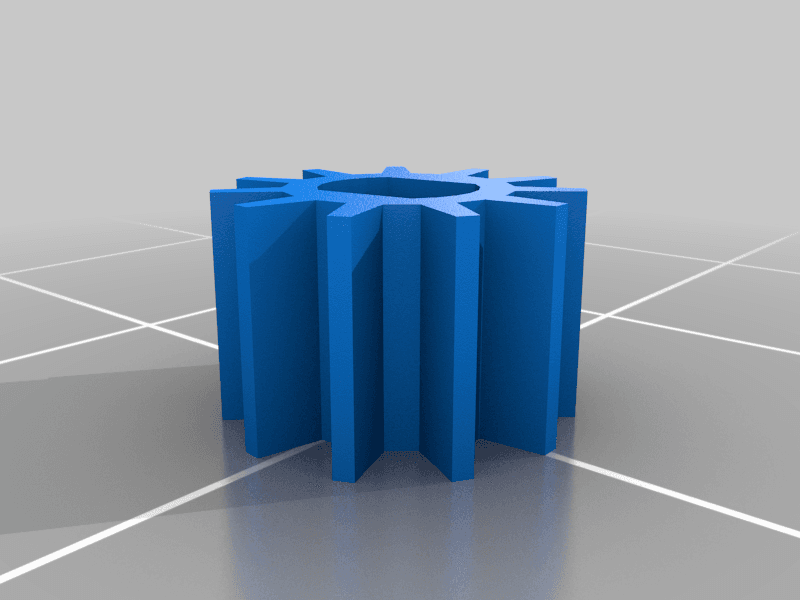

[02]Small_Gear.stlSmall_Gear.stl.STL
[03]Bounding box27.905 × 8.998 × 8.000 mm
[04]Volume841.642 mm³

Owner notes

BY ERUJI

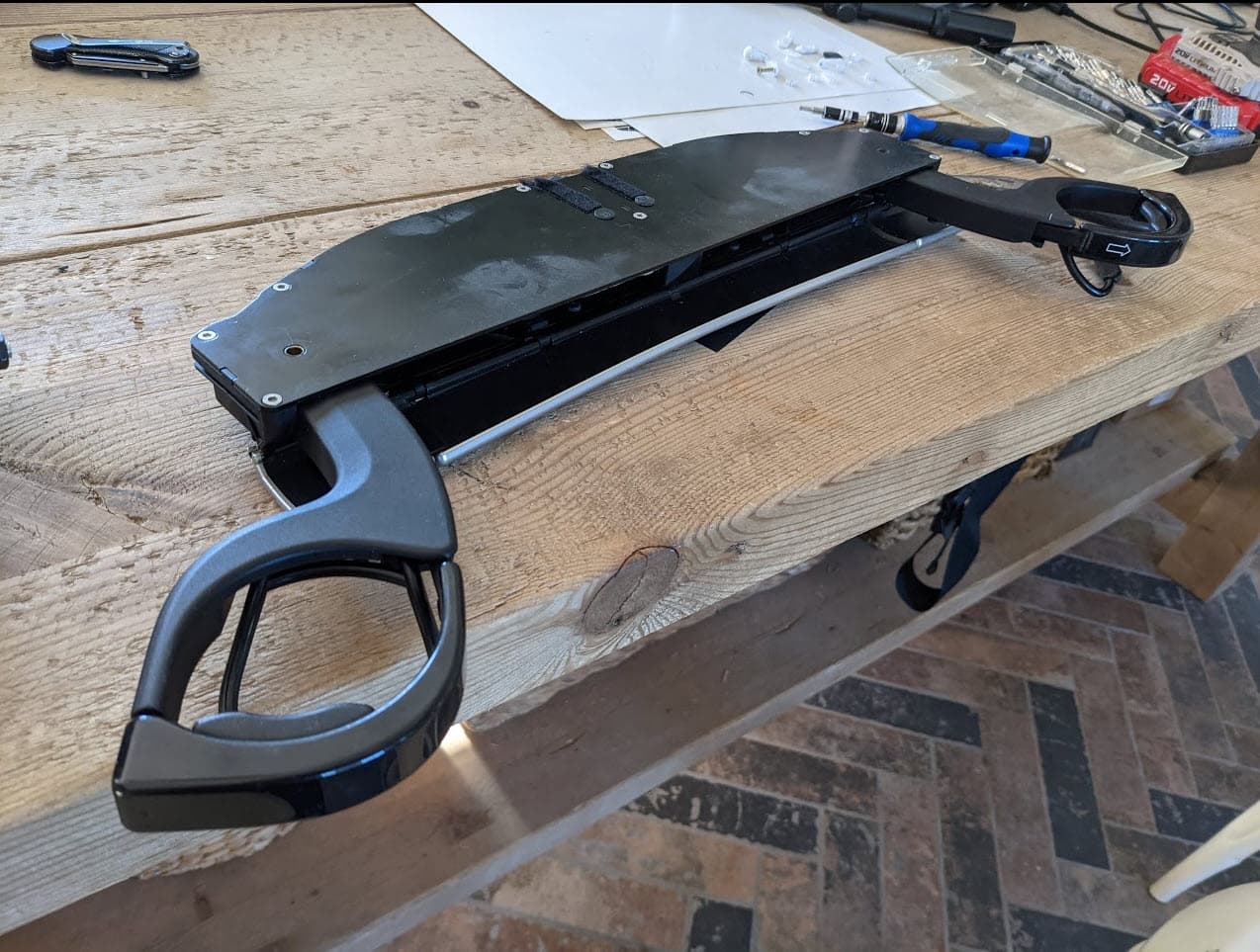

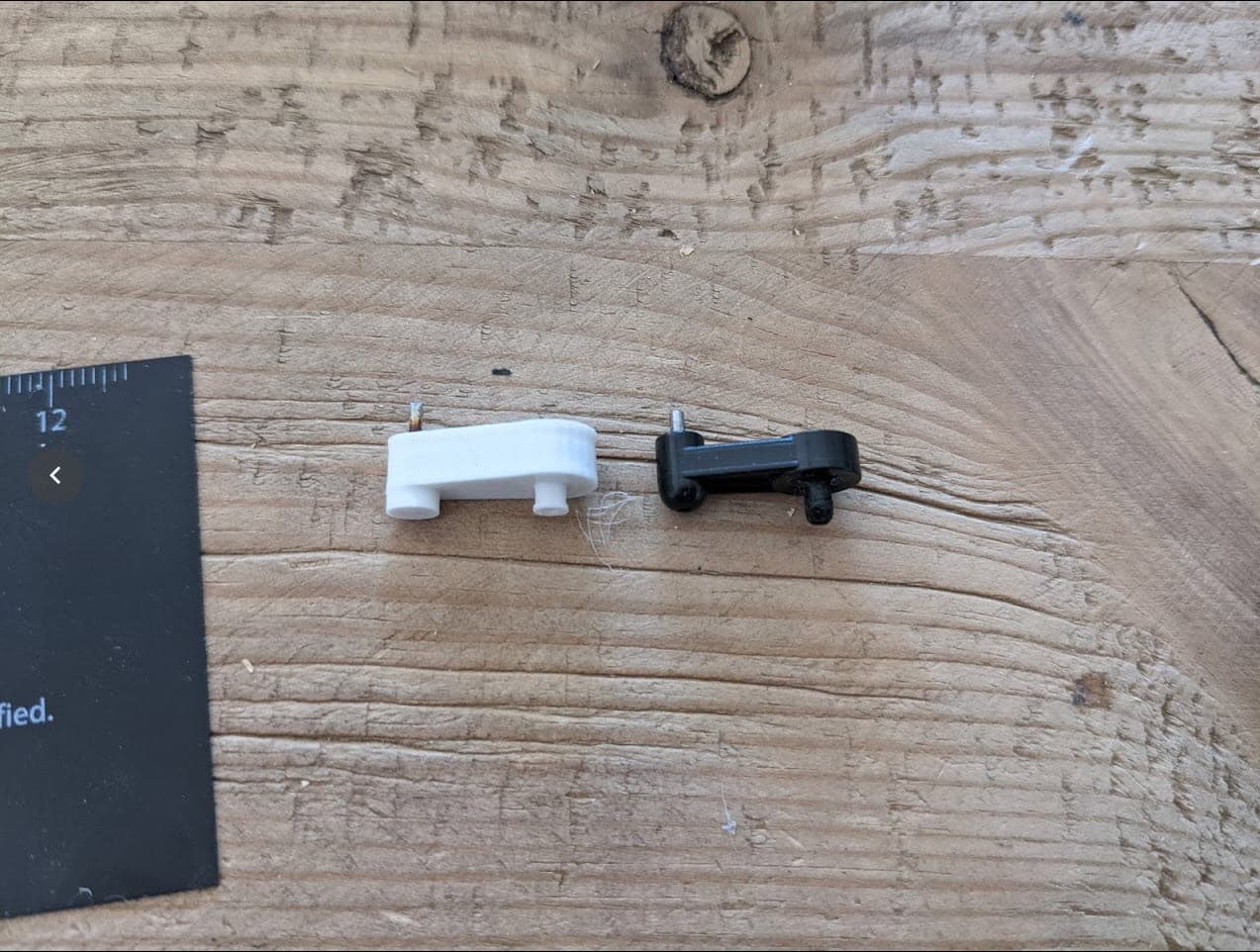

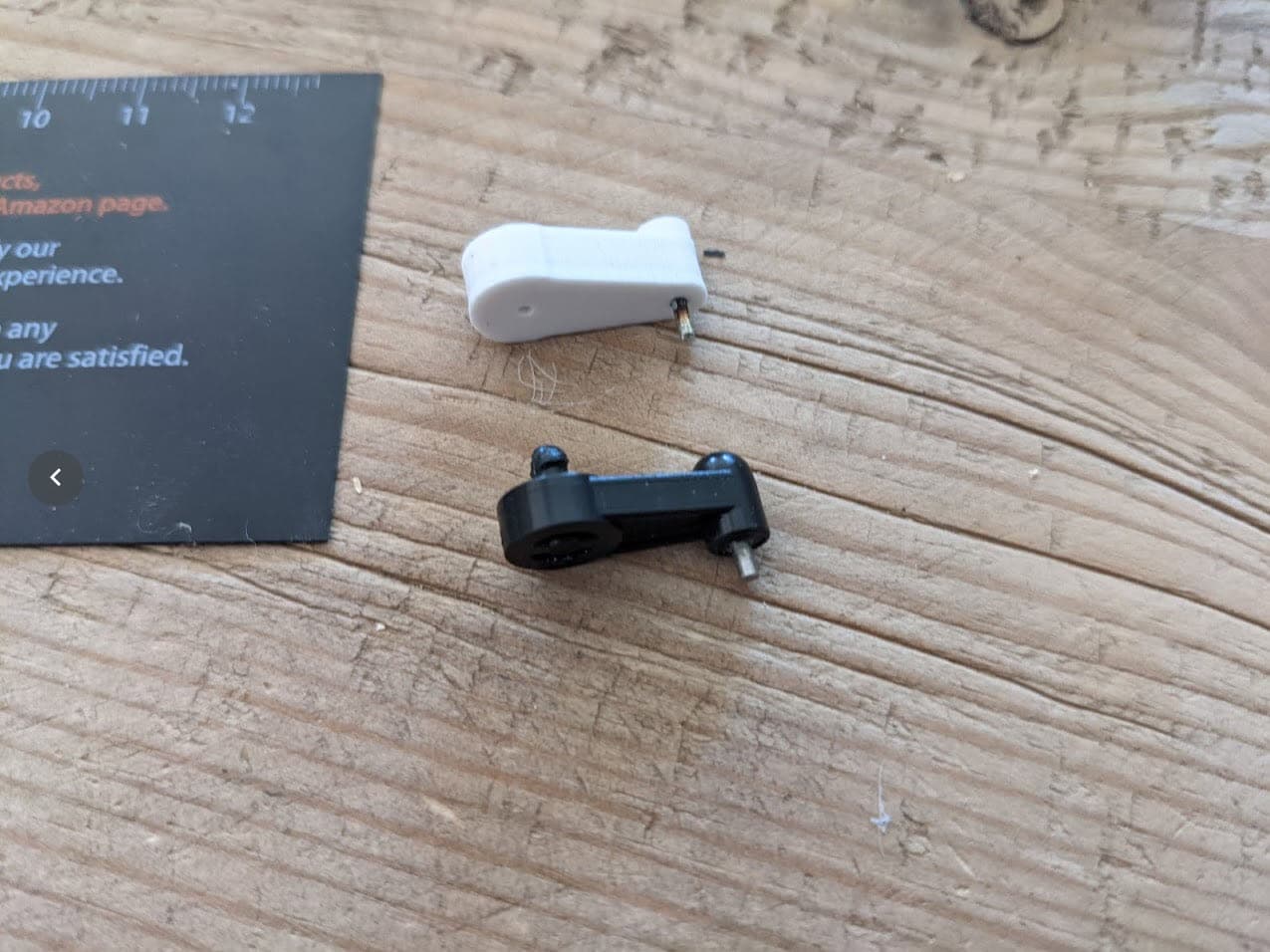

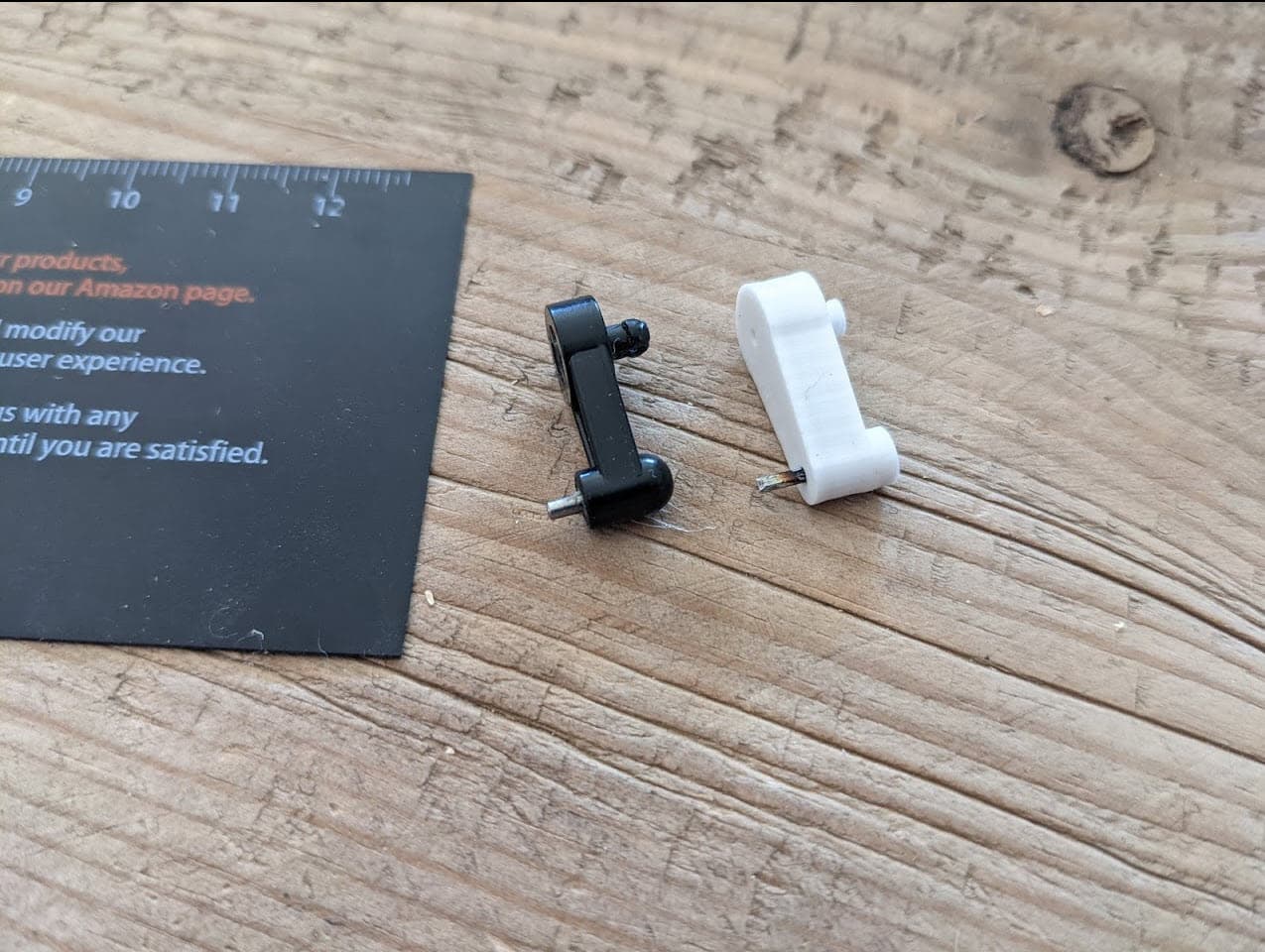

Replacement retaining pin and small gear for the dashboard cup-holder mechanism. The creator thickened the pin for easier printing, increased the gear height for better mesh, and used an 18-gauge brad nail as the pivot. The parts were printed in PETG after PLA softened in a hot car.
