Rear Main Seal Installation Tool Set

ABS · PETG4 FILESCC-BY-SAInstallation & alignment jigs

PART RECORDREF 1930

PART: Rear Main Seal Installation Tool Set
OEM: —
FITS: 911 964, 911 993

Loading 3D viewer...

RECORD · RA / 19304 geometry filesInteractive preview

Fitment photographs

4 PLATES

Rear Main Seal Installation Tool Set — image 1 of 4

PLATE 01 / 04No caption recorded

File manifest

MAN-1930

[01]sealset.stlsealset.stl.STL
[02]sealpunch.stlsealpunch.stl.STL
[03]911sealguide.stl911sealguide.stl.STL
[04]sealpunch+1.stlsealpunch+1.stl.STL
[05]Bounding box225.299 × 208.077 × 45.000 mm
[06]Volume584,498.462 mm³

Owner notes

BY SIMON BRIGGS (STAGSIMON)

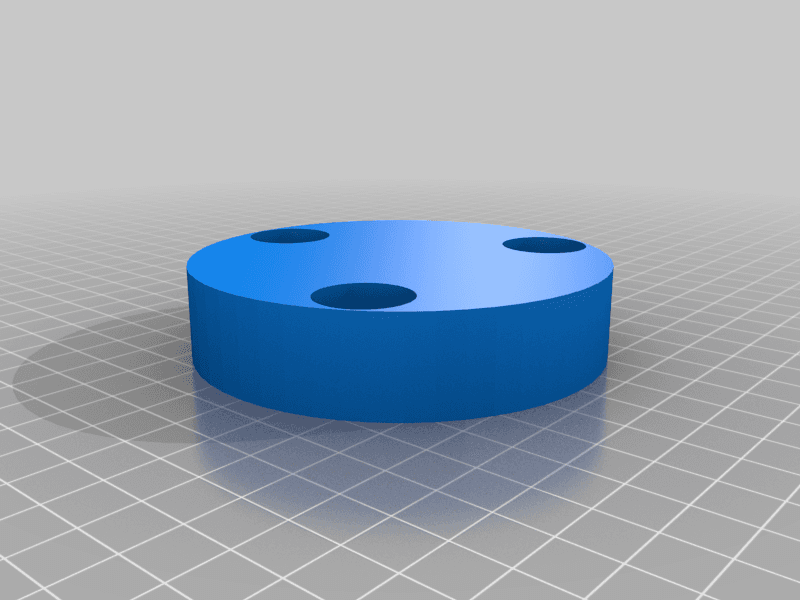

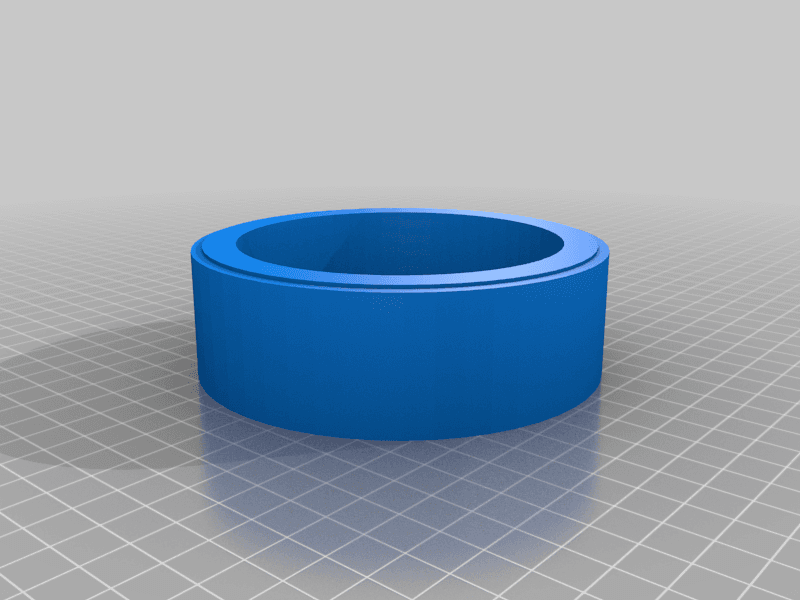

Three-piece installation set for an air-cooled rear main seal: a stock-hardware crankshaft centering guide, a punch that seats the seal flush with the case, and a second punch that seats it 1 mm below flush for a worn crank sealing surface.
