Remote Clutch Bleeder Bracket

PETGMULTI-PART2 FILESCC-BY-NCTransmission & drivetrain

PART RECORDREF 1965

PART: Remote Clutch Bleeder Bracket
OEM: —
FITS: 911 993

Loading 3D viewer...

RECORD · RA / 19652 geometry filesInteractive preview

Fitment photographs

4 PLATES

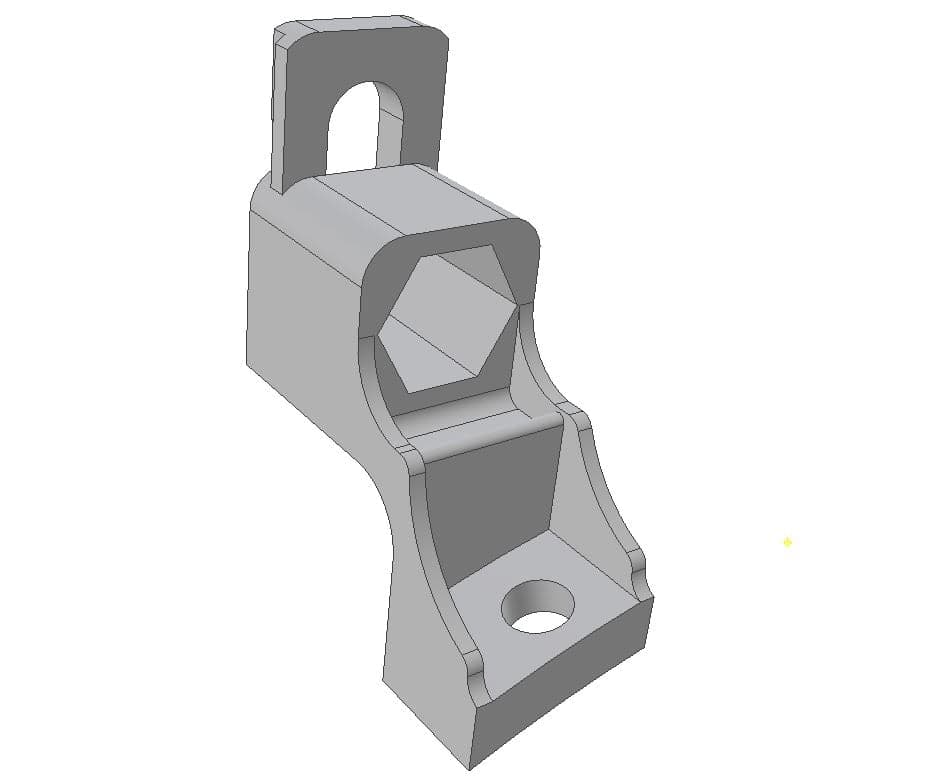

Remote Clutch Bleeder Bracket — image 1 of 4

PLATE 01 / 04No caption recorded

File manifest

MAN-1965

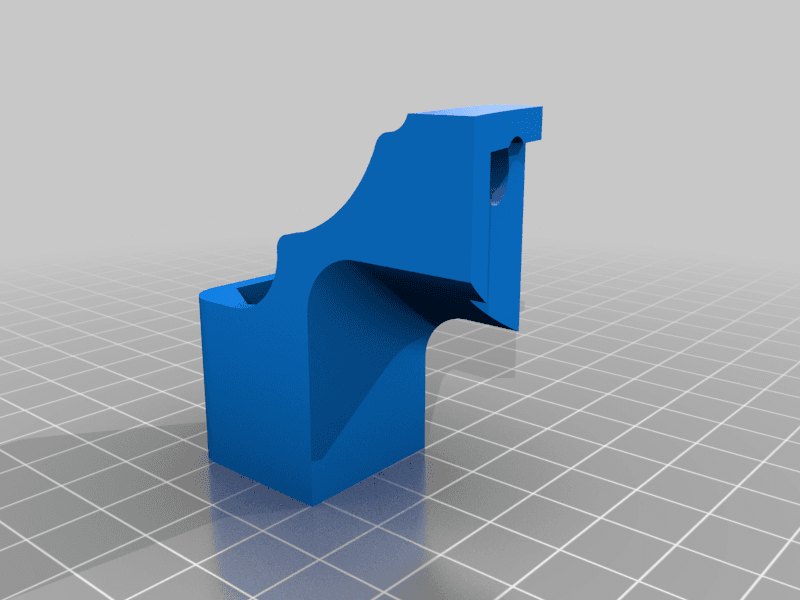

[01]993_Remote_Clutch_Bleed_Bracket_Mk4.stl993_Remote_Clutch_Bleed_Bracket_Mk4.stl.STL

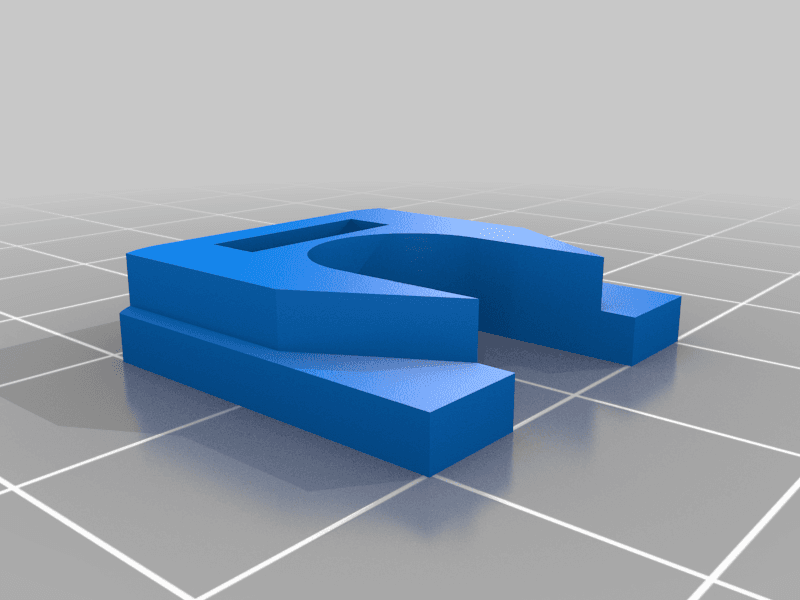

[02]End_Plate_for_Mk4.stlEnd_Plate_for_Mk4.stl.STL
[03]Bounding box50.000 × 49.081 × 28.442 mm
[04]Volume15,076.288 mm³

Owner notes

BY LIMEYBOY

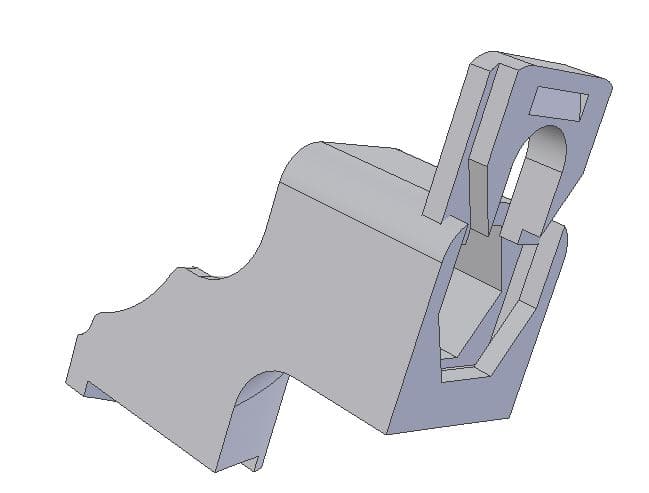

Two-piece bracket that mounts a remote clutch bleed-screw assembly to the fan shroud. It is sized for a -3 AN bulkhead mount accepting a 3/8-24 bleeder screw and uses a removable end plate so the clutch line can be slid into place without disconnecting it.
