Interior

Owner-filed Porsche records for the interior system, preserved as printable files and fitment notes.

73 PARTS5 SUBS
01Subcategories
5
  • Dashboard & controls
  • Console & storage
  • Interior doors & windows
  • Seats & restraints
  • Cabin trim, cargo & roof
02Filed records
73 parts
Part2004
MagSafe Phone Mount

MagSafe Phone Mount

Three-part MagSafe phone holder that clips near the glove-box compartment on left-hand-drive interiors. Its position keeps the holder away from the gear lever and leather trim. It accepts a 46 mm-inner/54 mm-outer MagSafe-style magnet ring and the printed parts are joined with super glue.

PETGDashboard & controls
Fits911 991 · Boxster 981 · Boxster 982 (718 Boxster) · Cayman 981 · Cayman 982 (718 Cayman)
0by VRShader
Part2003
Extended Door Handle Linkage Ball Socket

Extended Door Handle Linkage Ball Socket

Extended ball-socket connector for the exterior door-handle linkage, designed to add adjustment when the lever must be pulled too far or is difficult to reconnect. It uses an extra M5 nut; the creator prints it open-slot side up without supports at 0.2 mm layers and about 15% infill.

ABS · PETGInterior doors & windows
Fits924
0by Trefor Willingham (Tref67)
Part2002
Interior Door Pull-Strap Conversion

Interior Door Pull-Strap Conversion

Two-piece passenger-side interior door-pull conversion with a GT3-like shape. The creator says to mirror the files for the opposite side and attach the pull strap with a small screw.

ABS · PETGInterior doors & windows
Fits911 997
0by Whitedxi
Part2001
Upper Dashboard Storage Cubby

Upper Dashboard Storage Cubby

Replacement for the upper square CD-case storage unit in the dashboard, with a top cable-routing port for a USB/Bluetooth module. The creator printed it in resin and reports good fit.

PETGConsole & storage
Fits911 996 · Boxster 986
0by skazarian
Part2000
Pull-Strap Interior Door Handle Shells

Pull-Strap Interior Door Handle Shells

Left and right interior door-handle shells that convert the 997 door release to a GT3-style fabric pull strap. The archive includes a combined pair and strengthened separate left/right versions.

ABS · PETGInterior doors & windows
Fits911 997
0by Whitedxi
Part1998

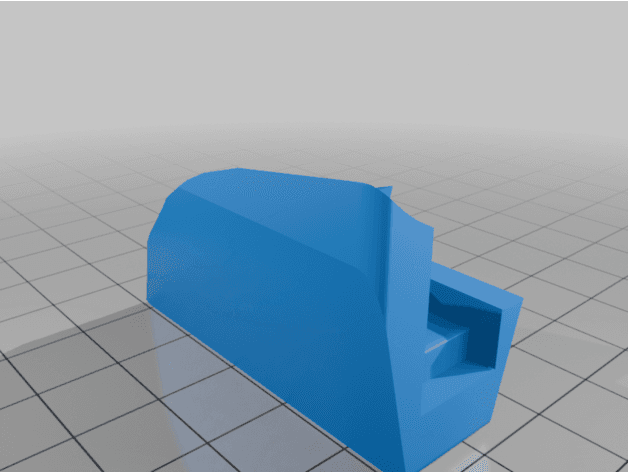

Rear-Door Sunshade Hanger

Rear-Door Sunshade Hanger

Replacement hanger for a rear-door shade. The creator designed it for the 955/957 and notes that it leaves some visual gaps because it does not perfectly follow the door-trim shape, but remains functional; mirror the model for the opposite side.

ABS · PETGInterior doors & windows
FitsCayenne E1 (955 / 957)
0by mantass
Part1997

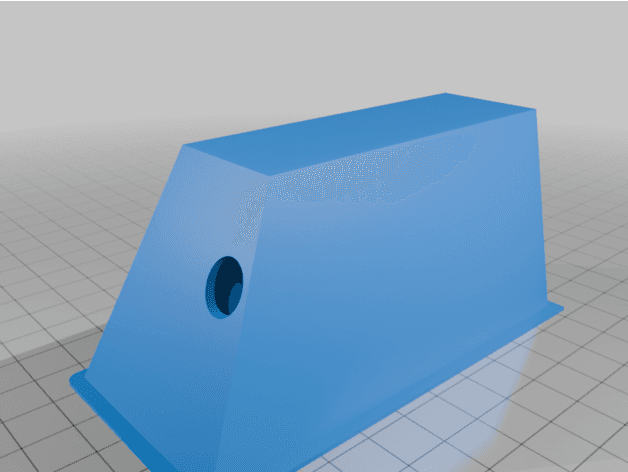

Ashtray Delete Cubby

Ashtray Delete Cubby

Drop-in ashtray-delete cubby for the Boxster 986. The creator secured it with double-sided tape and finished it with black flexible interior paint.

ABS · PETGConsole & storage
FitsBoxster 986
0by Blammit
Part1994

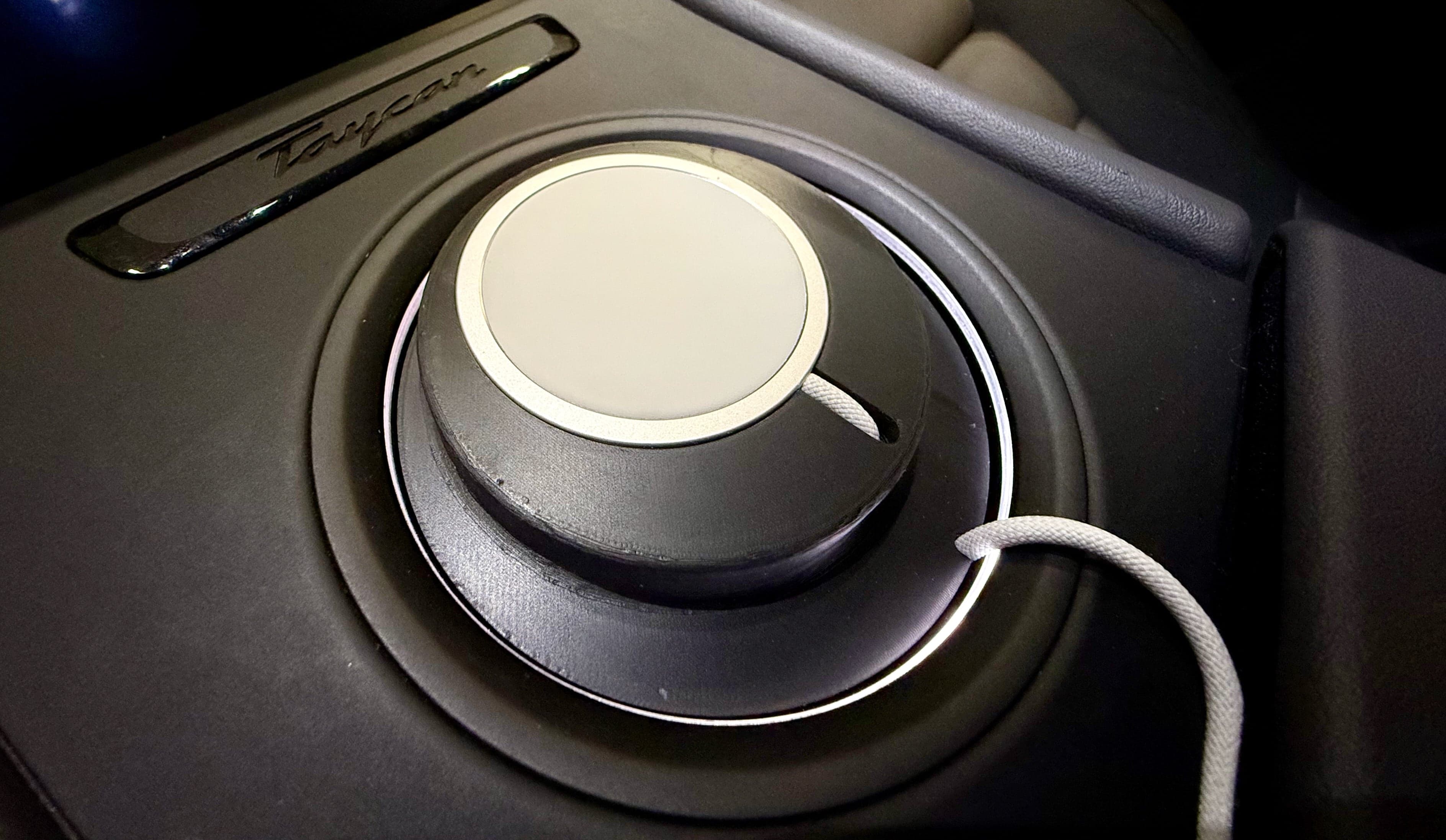

MagSafe Cup-Holder Charging-Puck Mount

MagSafe Cup-Holder Charging-Puck Mount

Cup-holder mount for an Apple MagSafe second-generation 25 W charging puck with braided cable. The creator reports fit with an iPhone 16 Pro Max in a silicone case.

ABS · PETGConsole & storage
FitsTaycan J1
0by uranium235
Part1993

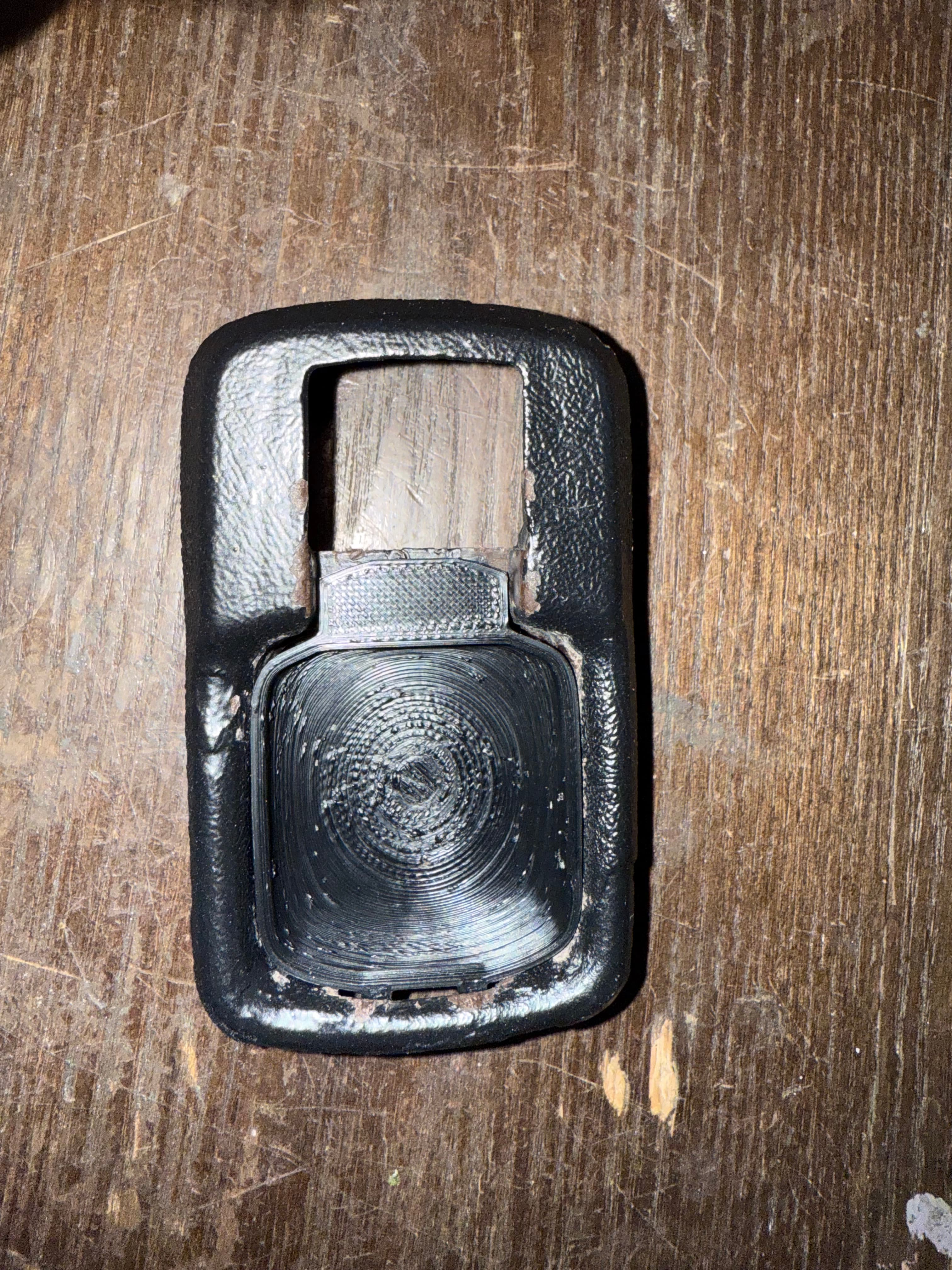

Interior Door Handle Finger Plate

Interior Door Handle Finger Plate

Replacement finger plate for an early interior door-release handle, modeled after degraded original trim during an upholstery restoration. The creator printed it in ABS for optional acetone smoothing and says PLA should also work.

ABS · PLAInterior doors & windows
Fits944
0by SlerpyGoopman
Part1992
Center-Armrest Storage Tray

Center-Armrest Storage Tray

Friction-fit tray variants create a second storage level in the seven-inch-deep center-armrest compartment: plain, tissue-box passthrough, and honeycomb versions, plus a STEP stencil for cutting surface liners. The installed tray sits just above five inches from the bottom, leaving room below for a cube tissue box; the creator had not test-printed the honeycomb variant.

ABS · PETGConsole & storage
FitsMacan XAB Electric
0by domino_borks
Part1990

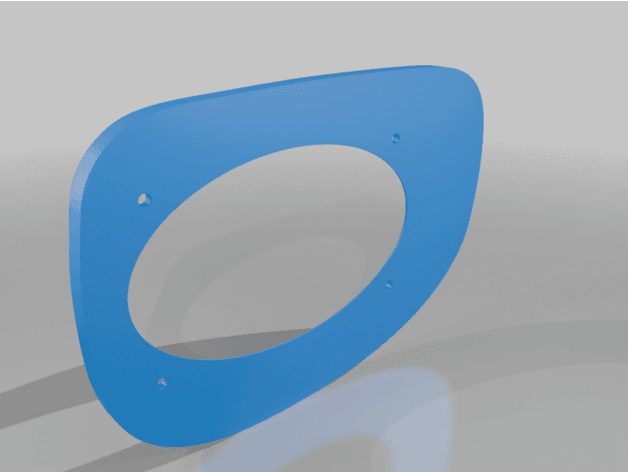

HiFi 4x6 Speaker Adapter Frames

HiFi 4x6 Speaker Adapter Frames

Left- and right-side frames for fitting nearly any 4x6 speaker behind the factory HiFi grilles while retaining the stock grille appearance.

ABS · PETGCabin trim, cargo & roof
Fits911 993
0by Garagefab
Part1989

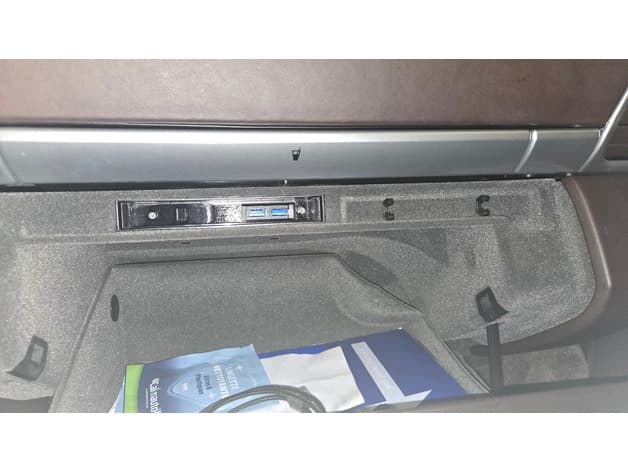

Glove-box USB and SIM-access insert

Glove-box USB and SIM-access insert

Two-piece glove-box CD-holder replacement that mounts two USB ports and provides a pull-out tray for SIM-card access. It assembles with three M3 screws; the updated drawer includes a retaining screw.

ABSConsole & storage
Fits911 997
0by nbegood
Part1988
Smoker-Package MagSafe Holder

Smoker-Package MagSafe Holder

Two-piece platform for mounting an Apple MagSafe USB-C adapter in the 12 V smoker-package compartment below the shifter. The creator calls for a low-profile USB-C 12 V car adapter, automotive trim tape, and glue or epoxy for PLA.

PLAConsole & storage
FitsMacan 95B
0by brandonpublic
Part1987

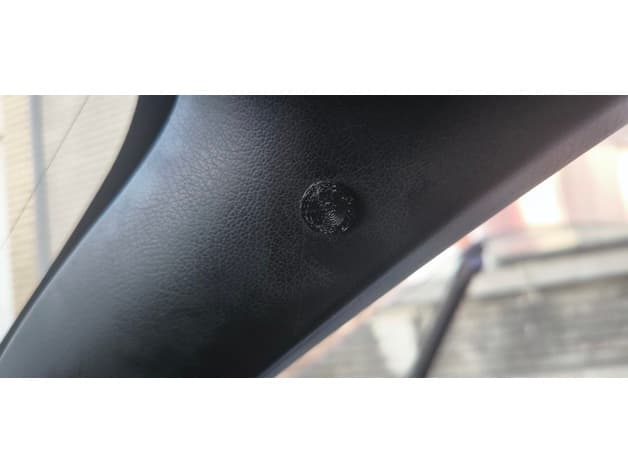

Interior Trim Screw Cover

Interior Trim Screw Cover

Round push-in cover for an interior-trim screw opening, with the opening enlarged by the creator for the larger screws used in their installation.

ABS · PETGCabin trim, cargo & roof
Fits944
0by Nurtekin429
Part1984

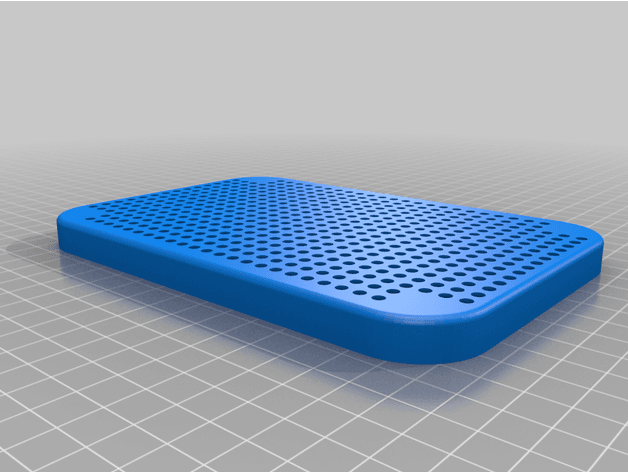

Front Speaker Grille

Front Speaker Grille

Replacement front speaker grille for late-model 944 cars, modeled around Tref67's speaker spacer after the creator found both pieces missing.

ABS · PETGCabin trim, cargo & roof
Fits944
0by poloroid
Part1980

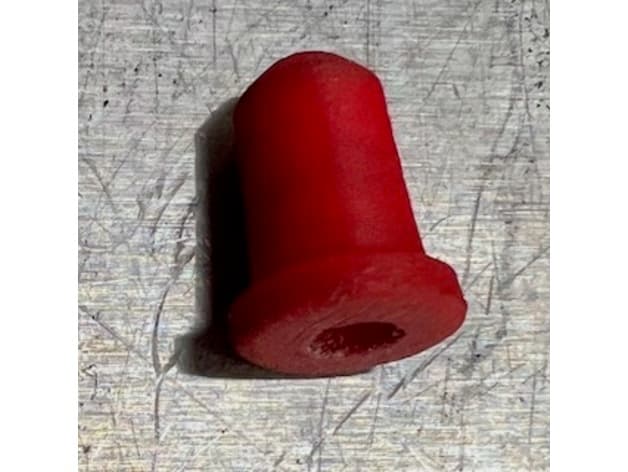

Manual-Throttle Rod End Cap

Manual-Throttle Rod End Cap

Replacement end cap, catalogued as a sleeve, for the 914-6 manual-throttle rod. The creator recreated it from broken pieces of the original part and old-stock photographs.

ABS · PETGDashboard & controls
Fits914
0by DenVogel
Part1979

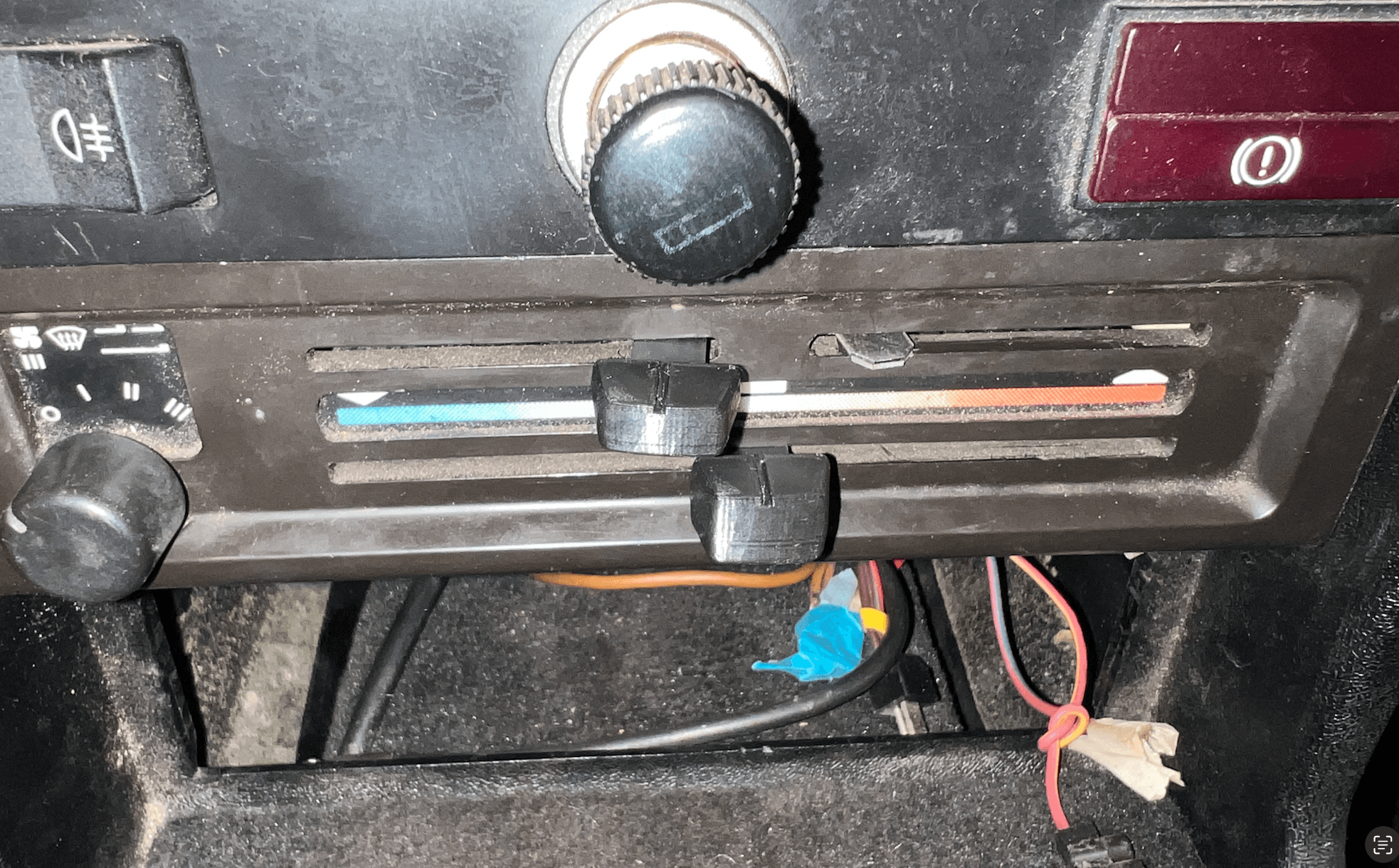

Heater Panel Slider Knob Set

Heater Panel Slider Knob Set

Replacement set for the heater-panel slider levers, supplied as separate upper and lower STL models.

ABS · PETGDashboard & controls
Fits924
0by valfa14
Part1978

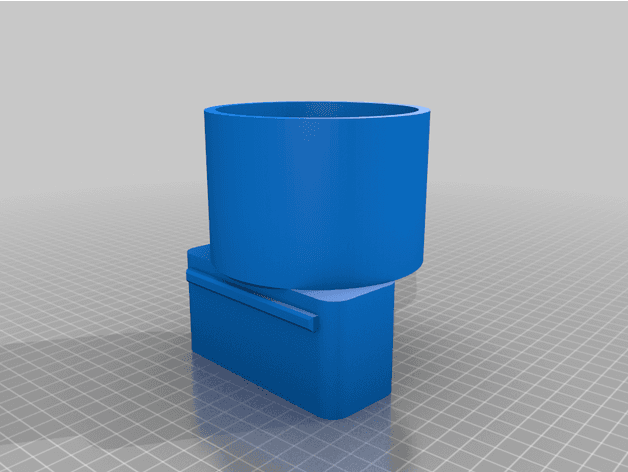

4-Inch Change-Holder Cup Holder

4-Inch Change-Holder Cup Holder

Cup holder with a 4-inch opening designed to fit the change-holder location; the creator contrasts it with an original 3-inch-opening version.

ABS · PETGConsole & storage
FitsBoxster 986
0by apswater2
Part1977

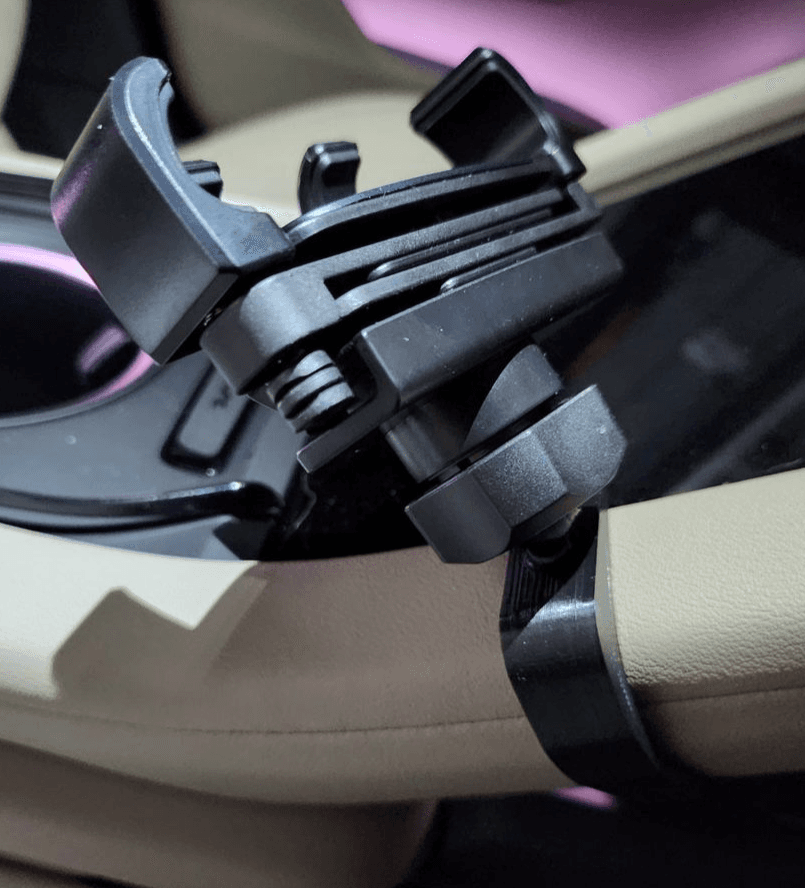

Center Console Phone Holder Clamp

Center Console Phone Holder Clamp

Clamp that adapts the creator-linked Amazon phone holder to mount on the side of the center console instead of an air vent.

PLAConsole & storage
FitsTaycan J1
0by dapostol73
Part1975

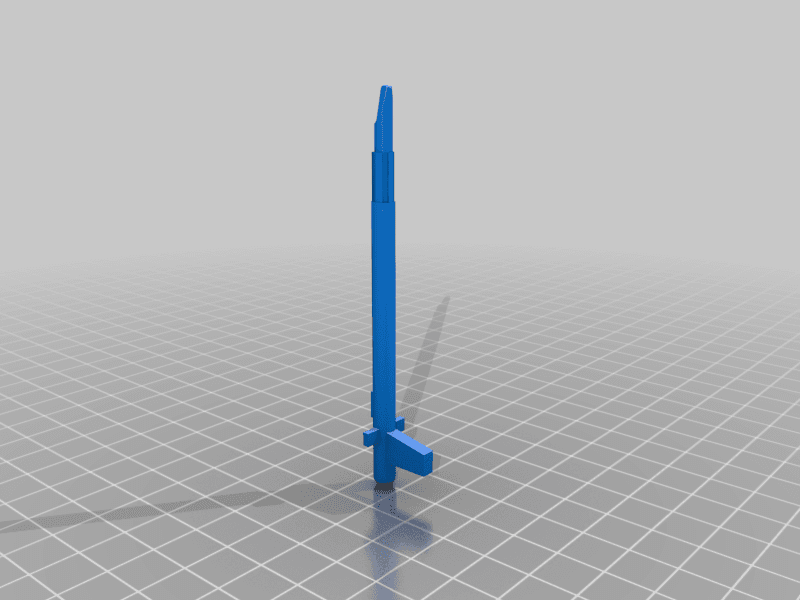

Instrument Cluster Dial Knob Shaft

Instrument Cluster Dial Knob Shaft

Replacement shaft for the instrument-cluster trip and dimmer controls, measured from an OEM stalk. The creator recommends resin or ABS for resolution and heat resistance and notes that sanding may be needed for a close fit.

ABSDashboard & controls
Fits911 996 · Boxster 986
0by winsalot
Part1974

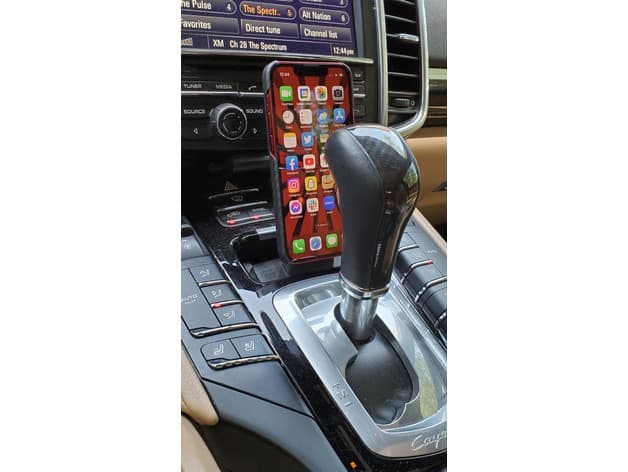

Ashtray Magnetic Charger Phone Mount

Ashtray Magnetic Charger Phone Mount

Ashtray-mounted phone stand with a USB cable pass-through for an adhesive magnetic charging puck, designed by Trogdor4Ever for the Cayenne 958 center console. The creator printed it in PLA+ and added neoprene foam to the lower corners for a snugger fit.

PLAConsole & storage
FitsCayenne E2 (958)
0by Trogdor4Ever
Part1973

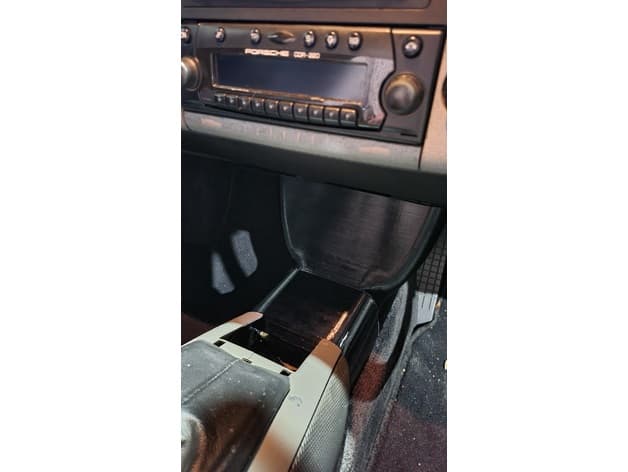

Center Console Delete Lining

Center Console Delete Lining

Printable lining for a center-console-delete conversion, supplied as a full model or front/rear split for a Prusa Mk3S-size bed, plus a cover plate. The creator recommends PETG, instructs removal of the orange bracket tabs for mounting, and leaves room to upholster the part.

PETGConsole & storage
FitsBoxster 986
0by XR4Y
Part1972

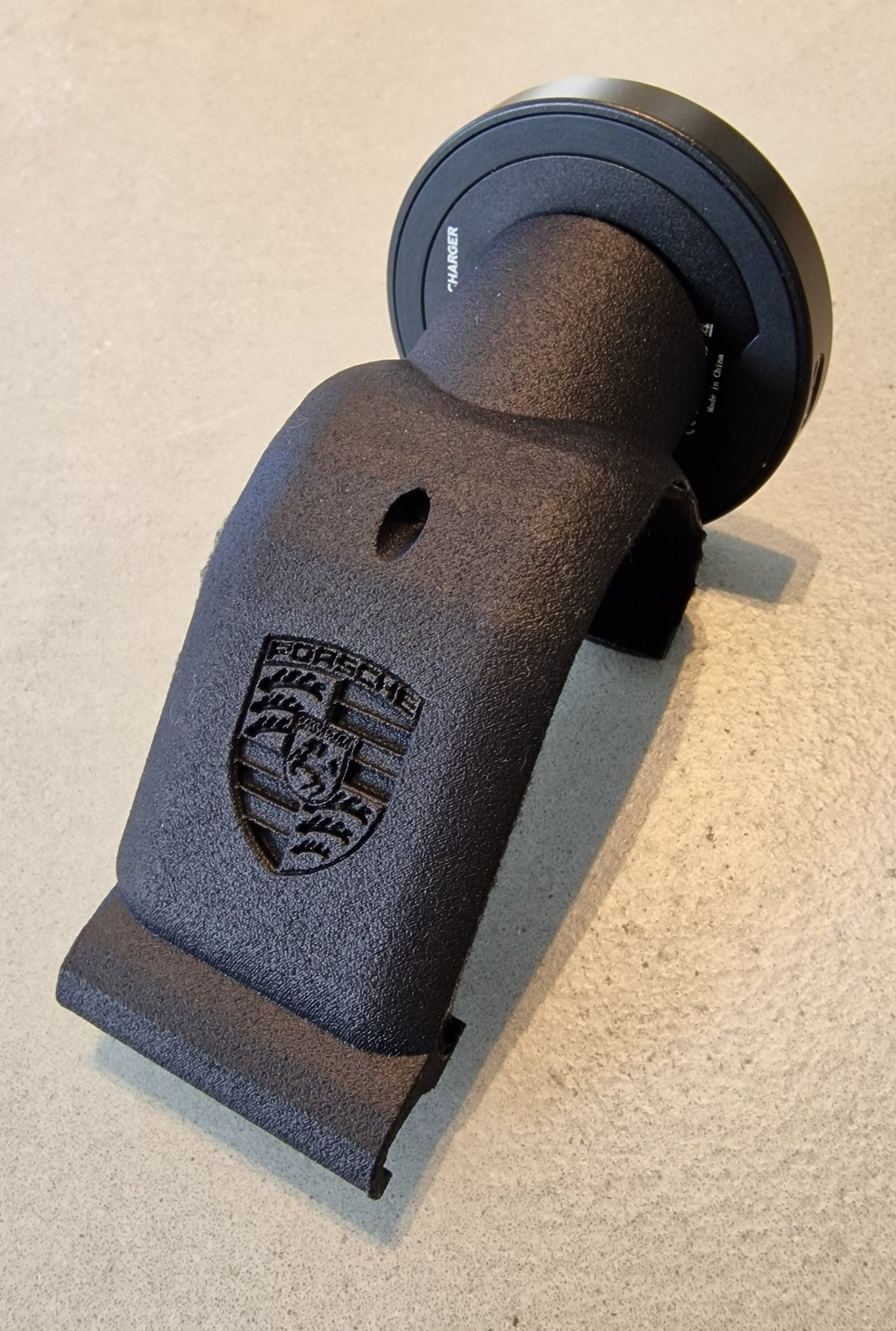

Center-Console MagSafe Phone Mount

Center-Console MagSafe Phone Mount

Center-console phone mount based on the creator's 3D scan, with versions for iSetchi and Apple MagSafe chargers. The creator reports months of in-car use and says the Apple charger must be attached with double-sided tape or glue.

ABS · PETGConsole & storage
FitsTaycan J1
0by jeanmariecannie
Part1971

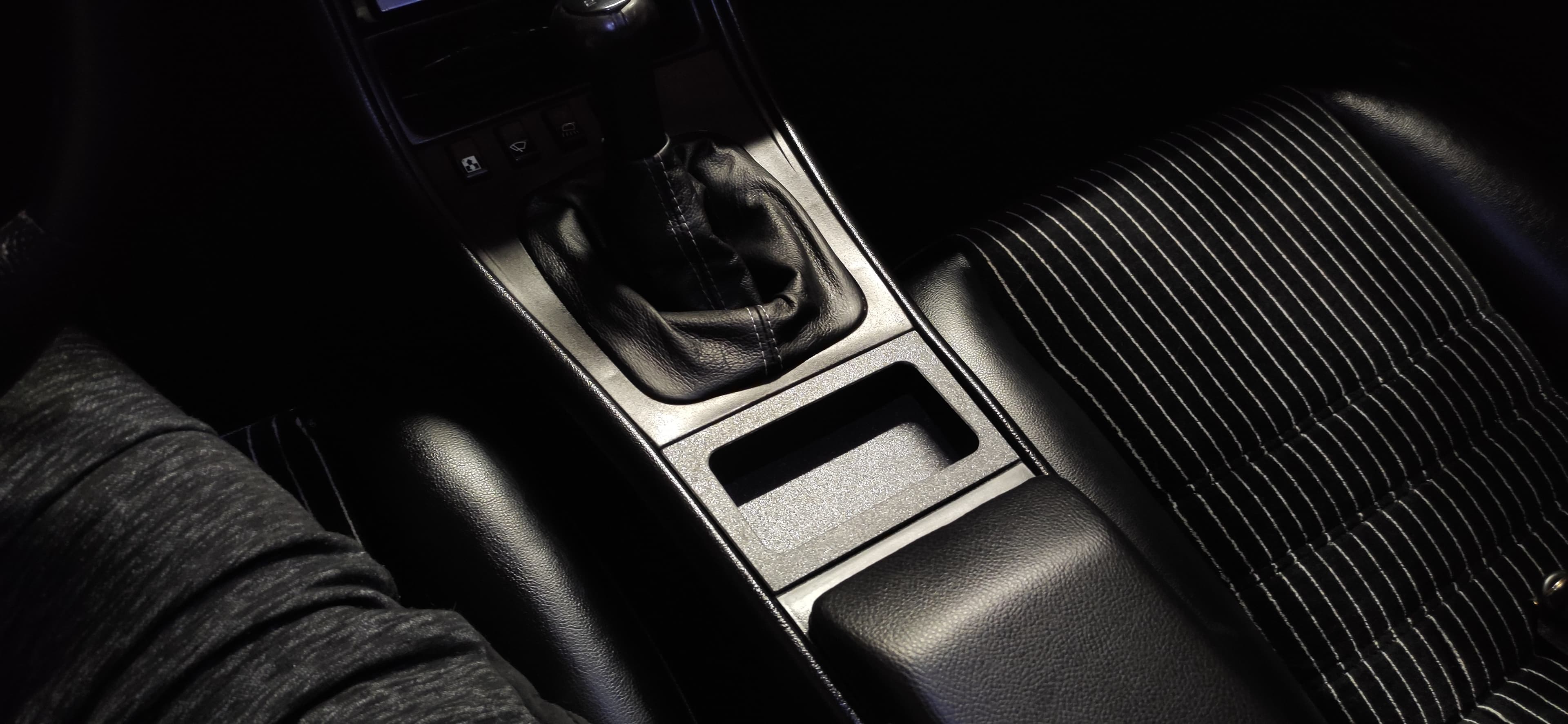

Ashtray-Replacement Coin Tray

Ashtray-Replacement Coin Tray

Three-part clip-in center-console coin tray that replaces the ashtray. The creator directs users to slide the parts together, glue the seams, and apply fabric tape at the sides to improve fit and reduce rattles.

PETG · TPUConsole & storage
Fits944
0by JudyMachner
