Tools
Owner-filed Porsche records for the tools system, preserved as printable files and fitment notes.

Engine Service Blanking-Plug Set
Temporary S2 engine-service plugs for the spark-plug tunnel, injector port and airflow-sensor hose opening.

Clutch-Alignment Tool
Clutch alignment tool for a 2004 Carrera with 23 splines, 1-inch diameter and 15 mm pilot hole; includes the two tool sections and their assembly ring.

Rear Main Seal Installation Tool
Flywheel-bolt-driven installation tool that seats the rear main seal 13 mm below the crank flange; its orientation relief clears the flywheel-flange rivet.

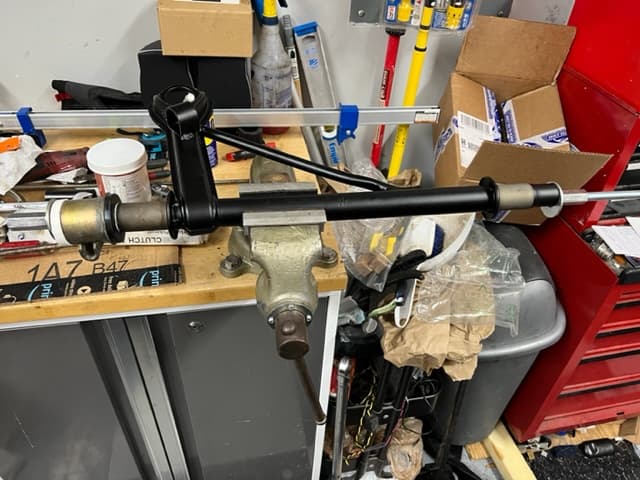

Front Control Arm Bushing Press Tools
A two-piece press-tool set for pressing 1965-1989 front control-arm rubber bushings into place.

Speed Reference sensor Gap Tool
Custom speed reference sensor gap tool.

Fuel Pump Actuator Stroke Measuring Tool
Tool used to measure the fuel-pump actuator-rod stroke. The creator identifies it for VW 25/36 hp and Porsche 356 A/early B engines.

Front Wheel Seal Installer
Custom front wheel seal installer.

Oil pan gasket tool
Custom oil pan gasket tool.


PDK Rear-Case Press Template
Template for marking a steel press plate used to remove the rear half of a PDK transmission case.

PDK Mainshaft Synchro Saver
Clip that axially constrains lower-mainshaft components while releasing the linear distance sensor.

Clutch-Alignment Tool
Clutch-alignment tool used on a 1985.5 naturally aspirated car and described by the creator as compatible across the model range.

Intake Vacuum-Leak Test Adapter
Adapter between the intake J-boot and an air-hose quick connector for low-pressure vacuum-leak testing.

Differential-Lock Seal Installation Tool
Tapered installation tool that expands the PTFE piston seal and centers itself in the counterbore of the differential-lock cylinder piston.

Brake Caliper Piston 20-Degree Alignment Gauge
Gauge for setting the stepped brake-caliper piston face to 20 degrees on standard ATE calipers.

Fuel Pump Diaphragm Positioning Tool
Tool used to set the fuel-pump diaphragm position during rebuilding before securing the pump top. The creator identifies it for VW 25/36 hp and Porsche 356 A/early B engines.

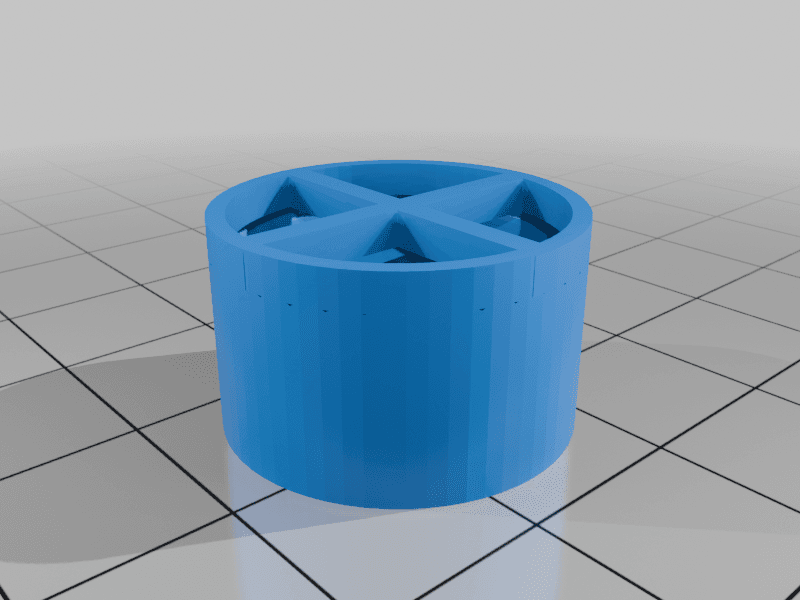

Glove-Box Lock-Nut Socket
Cross-hatched lock-nut socket with a 1/4-inch square drive, designed to disassemble a glove-box lock tumbler.

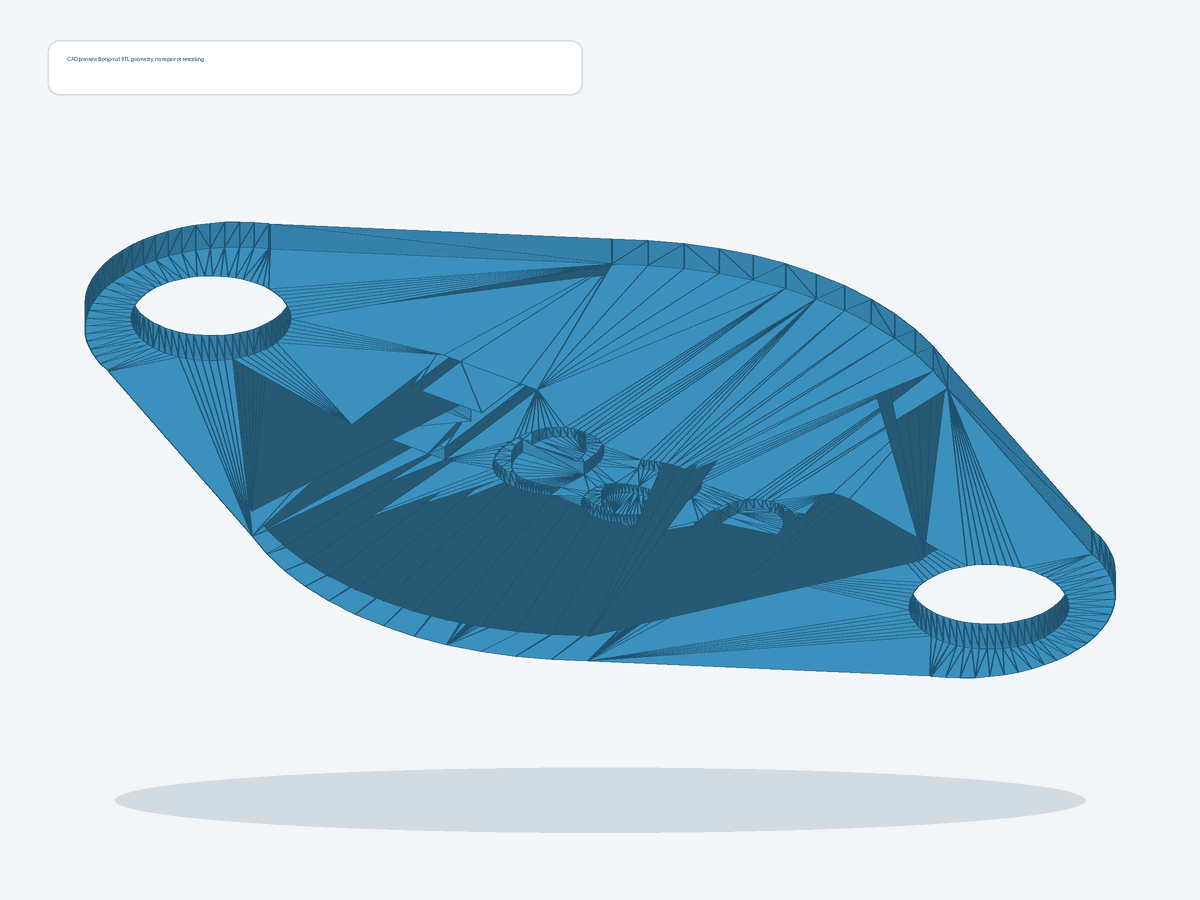

Cylinder Head Intake Port Block-Off Plate
Temporary plate that bolts over the cylinder-head intake-manifold mounting face to keep debris out during engine assembly.

Crankcase Through-Bolt O-Ring Installer
Protective installation cap that covers crankcase through-bolt threads so an O-ring is not sliced while being installed. The creator designed it during a 914-6/911T engine rebuild and revised the shape for improved printing.

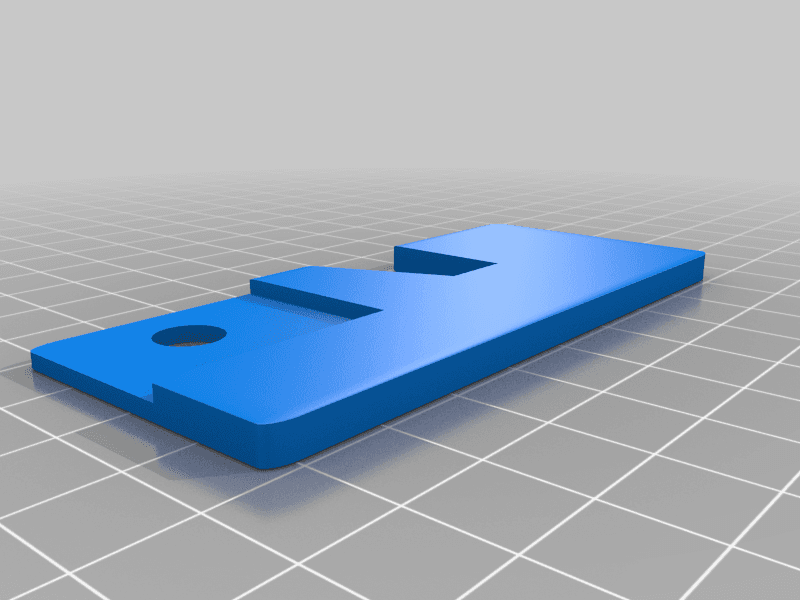

Camshaft Holding-Down Tool
Printable camshaft holding-down tool for early five-chain engines in the Boxster 986 and 911 996. The tool holds the camshafts during cylinder-head-cover removal and reassembly.

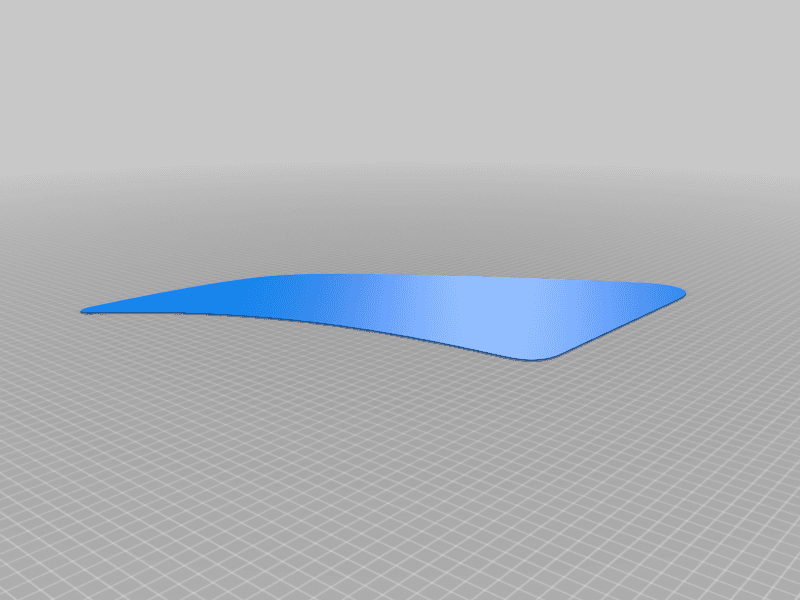

Stone Guard Cutting Template
Full-size 15.25-inch template for cutting replacement side-section stone-guard film, modeled for the 997 generation.

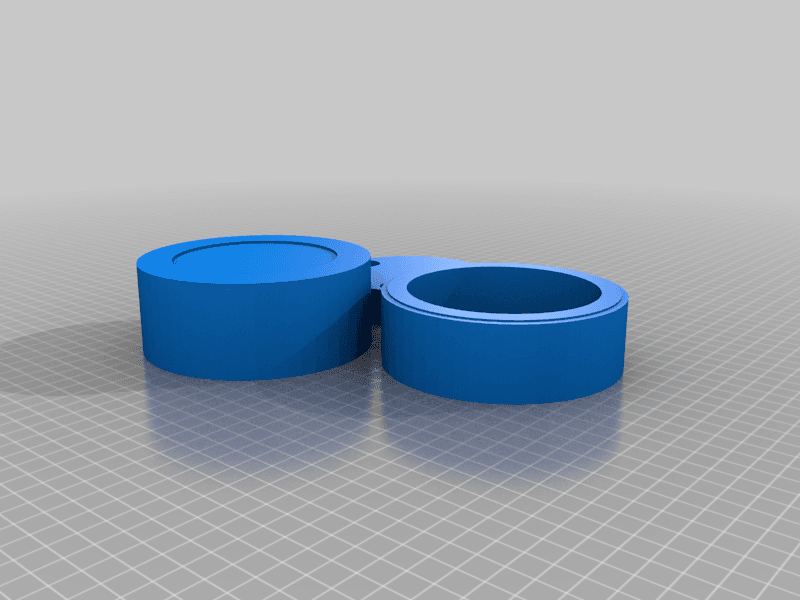

Rear Main Seal Installation Tool Set
Three-piece installation set for an air-cooled rear main seal: a stock-hardware crankshaft centering guide, a punch that seats the seal flush with the case, and a second punch that seats it 1 mm below flush for a worn crank sealing surface.

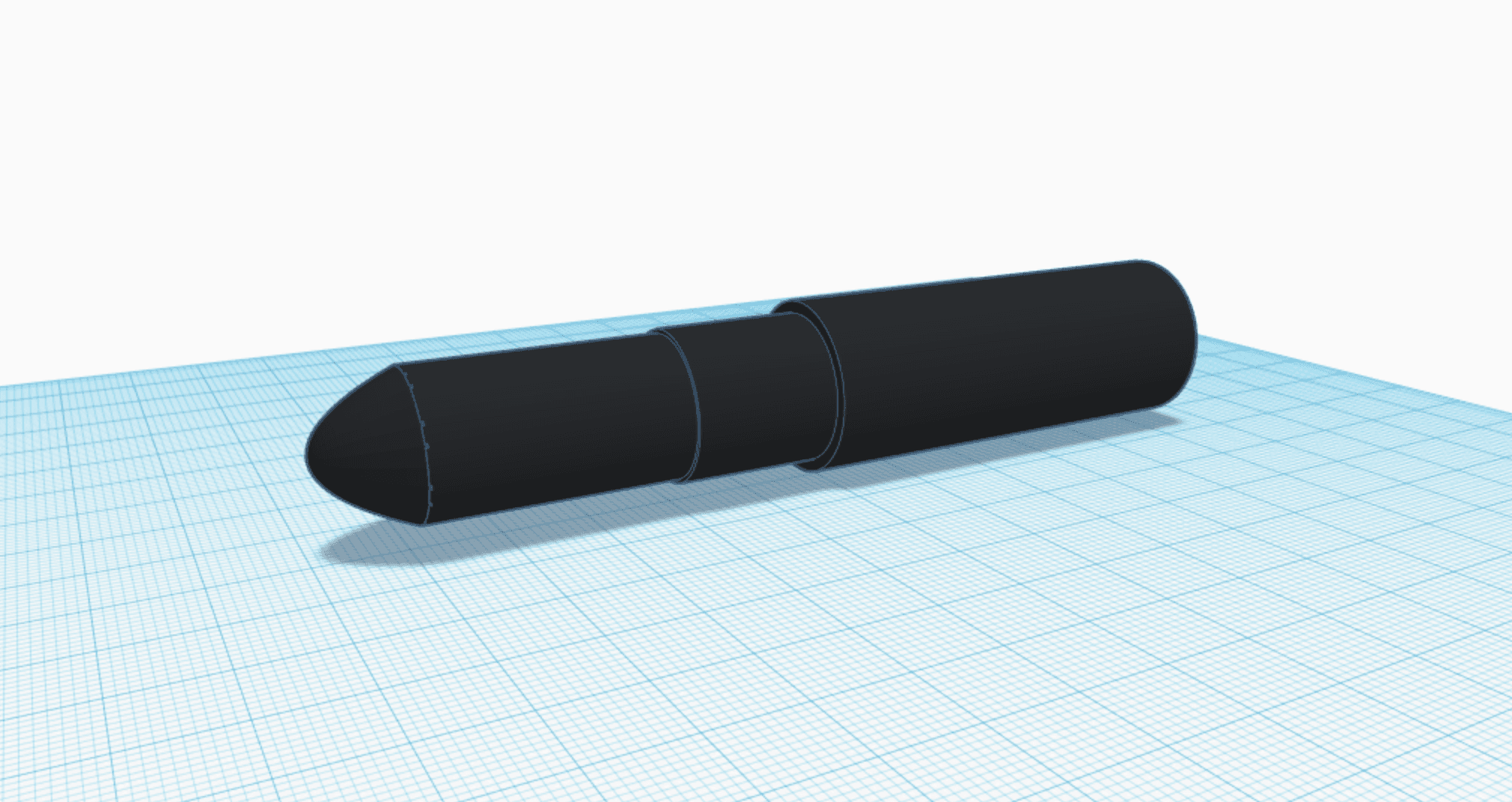

Early-OPRV Oil-Cooler Alignment Tool
Alignment mandrel for centering the oil-cooler housing during reinstallation on vehicles with the early oil-pressure relief valve. The creator states that the design is untested and based on rough measurements.

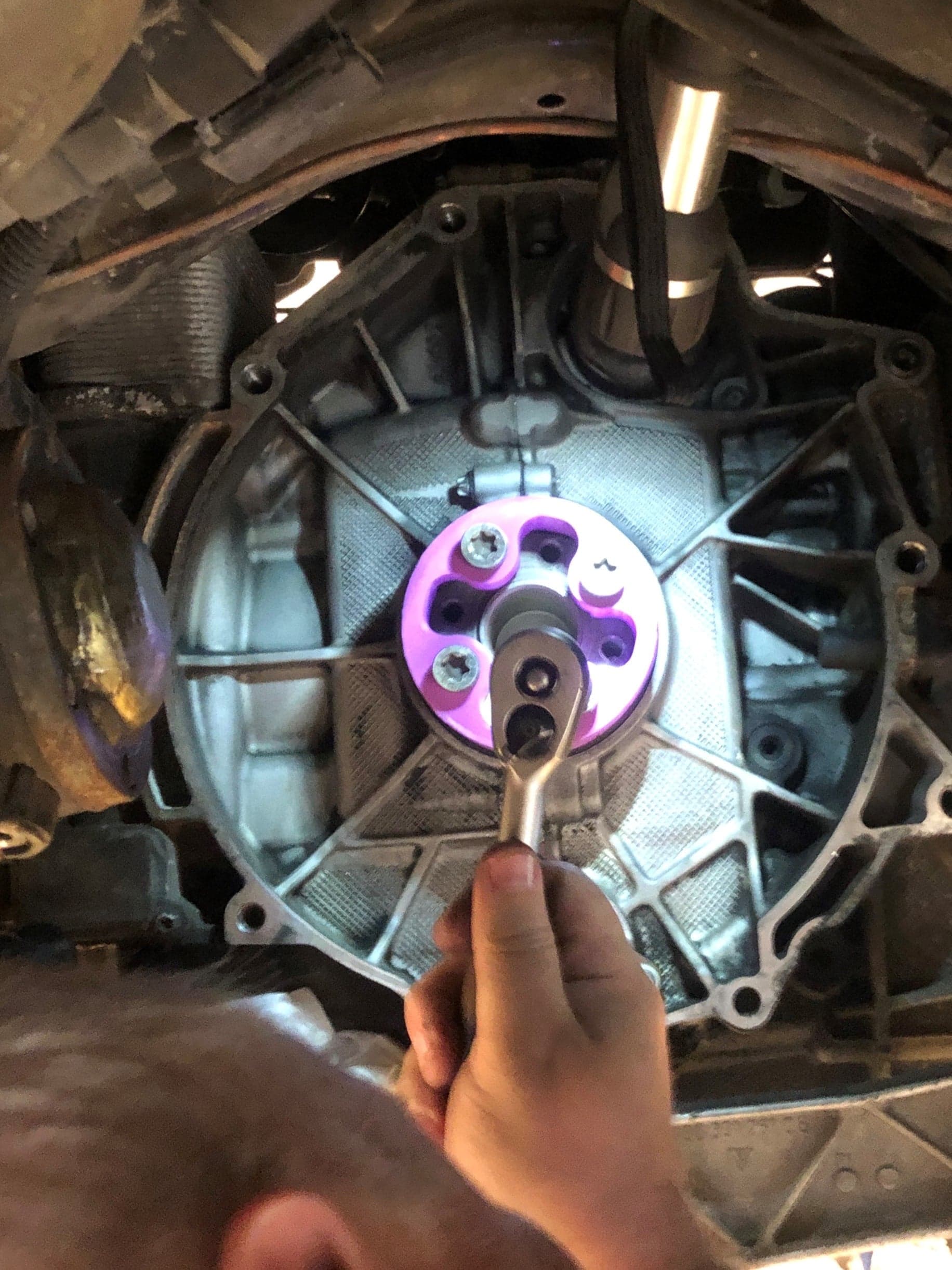

Rear Main Seal Installation Tool
Two-piece threaded arbor and mandrel that press the flywheel-side crankshaft rear main seal squarely into place. The creator recommends lubricating and working the printed threads until they spin smoothly.
